Vivo Uno
- Year: 2017
- MSRP: $1,959.99 *
- Sizes: XS, S, M, M/L, L, XL
- Colors: UD / White
- Weight:
- NO LONGER AVAILABLE

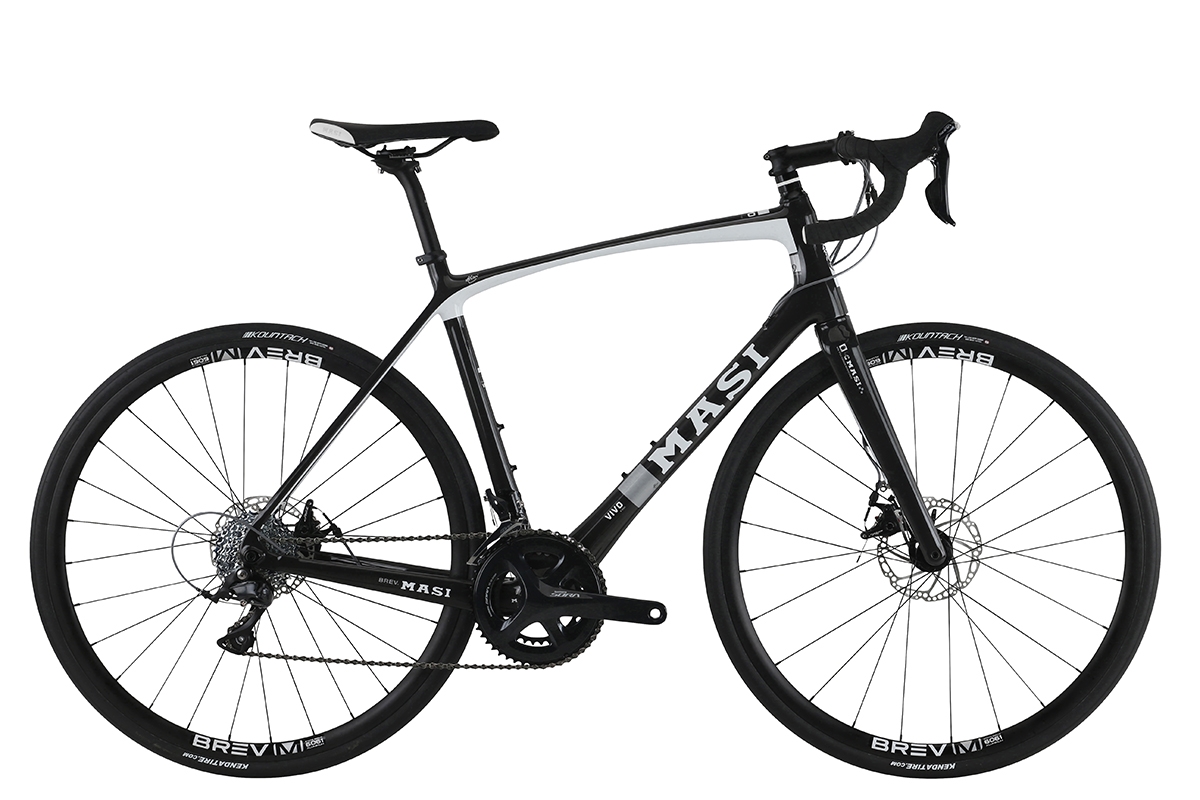

The 2017 Vivo Uno represents the entry point to our premium endurance range. Combining a blend of modern performance materials and quality components, the Uno delivers outstanding ride comfort and control over challenging distances and terrain. The MC9 Comfort tuned carbon fiber frame is light and stiff. The tapered head tube and fork find the perfect balance of precise and responsive road handling, while the upgrade to disc brake technology creates confidence in the most demanding circumstances. The addition of our BREV.M Forged aluminum cockpit and seat post cuts unnecessary weight, to position the Uno as a great value, high quality endurance bike.
FEATURES
- Masi Comfort Tuned-Carbon MC9 Carbon frame, fully convertible internal cable routing, BB86 press-fit BB, tapered headtube, flat mount disc, 12mm thru-axle & removeable fender mounts
- Masi Comfort Tuned Carbon MC9 tapered full carbon fork with 12mm thru axle, flat mount disc & removeable fender mounts
- New Shimano Sora R3000 derailleurs & shifters / levers
- New Shimano Sora R3000 50/34t crankset with BB86 press-fit BB
- ProMax MS3.3R flat mount mechanical disc brakes
- New Brev. M 3D forged alloy cockpit
- New Brev. M 28mm Race Disc rims w/ Alloy 28h disthru-axle disc hubs w/alloy TA
- Kenda Kriterium 28c tires
Frame Components | |
---|---|
Frame | Masi Comfort Tuned Carbon MC9 Carbon, Di2 Compatible, BB86, Internal Routing, 1.5" Tapered Headtube & Flat-Mount Disc Brakes |
Fork | New Masi Comfort Tuned MC9 Carbon Tapered 1.5" Steerer, 12mm Thru-Axle, Flat Mount Disc Brake, w/ Removable Fender Mounts |
Headset | FSA No.42; Orbit C-40 Sealed 1-1/8 , 1.5" ACB Bearings |
Drivetrain | |
Cranks | New Shimano Sora R3000 Compact, 50/34t |
Bottom Bracket | Shimano BB86 Sealed Cartridge |
Chain | KMC X9 |
Front Derailleur | New Shimano Sora 3000 |
Rear Deralleur | New Shimano Sora 3000 9-spd |
Derailleur Shifter | Shimano Sora 9-spd |
Pedals | N/A |
Wheels | |
Tires | Kenda Kriterium 28c |
Wheels/Rims | New Brev. M 28mm Race Disc Rims, Alloy 28h 12mm Thru-Axle Hubs w/Alloy TA |
Freewheel/Cassette | Shimano Sora Cassette 11-32t, 9-spd |
Braking System | |
Brakes | Promax Ms3.3 Flat Mount Mechanical Disc, 160F/160R |
Brake Levers | Shimano Sora |
Other Components | |
Grips | New Masi Gripper+ Tape w/ Silicon Gel |
Handle Bar | New Brev. M 31.8 Alloy Bar |
Stem | New Brev. M 3D Forged Flip/Flop Stem |
Seat | New Masi Scs |
Seat Post | New Brev. M 3D Forged Alloy 27.2 X 300mm |
Seat Clamp | Alloy, 31.8mm |
Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
XS | 71° | 74° | 515mm (20.3") | 43mm (1.7") | 425mm (16.7") | 73mm (2.9") | 992mm (39.1") | 729mm (28.7") | 530mm (20.9") | 363mm (14.3") | 50mm (2") | ||||
S | 72° | 74° | 530mm (20.9") | 46.5mm (1.8") | 425mm (16.7") | 73mm (2.9") | 993mm (39.1") | 758mm (29.8") | 554mm (21.8") | 371mm (14.6") | 45mm (1.8") | ||||
M | 72.5° | 73° | 545mm (21.5") | 50mm (2") | 425mm (16.7") | 70mm (2.8") | 995mm (39.2") | 788mm (31") | 572mm (22.5") | 370mm (14.6") | 45mm (1.8") | ||||
M/L | 72.5° | 73° | 560mm (22") | 53.5mm (2.1") | 425mm (16.7") | 68mm (2.7") | 1006mm (39.6") | 815mm (32.1") | 591mm (23.3") | 379mm (14.9") | 40mm (1.6") | ||||
L | 72.5° | 72° | 580mm (22.8") | 55.5mm (2.2") | 425mm (16.7") | 68mm (2.7") | 1014mm (39.9") | 830mm (32.7") | 610mm (24") | 382mm (15") | 40mm (1.6") | ||||
XL | 72.5° | 72° | 600mm (23.6") | 58.5mm (2.3") | 425mm (16.7") | 65mm (2.6") | 1035mm (40.7") | 853mm (33.6") | 626mm (24.6") | 397mm (15.6") | 40mm (1.6") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
