Caffe Corsa

  • Year: 2017
  • MSRP: $1,039.99 *
  • Sizes: XS, S, M, M/L, L, XL
  • Colors: Silver
  • Weight:
  • NO LONGER AVAILABLE

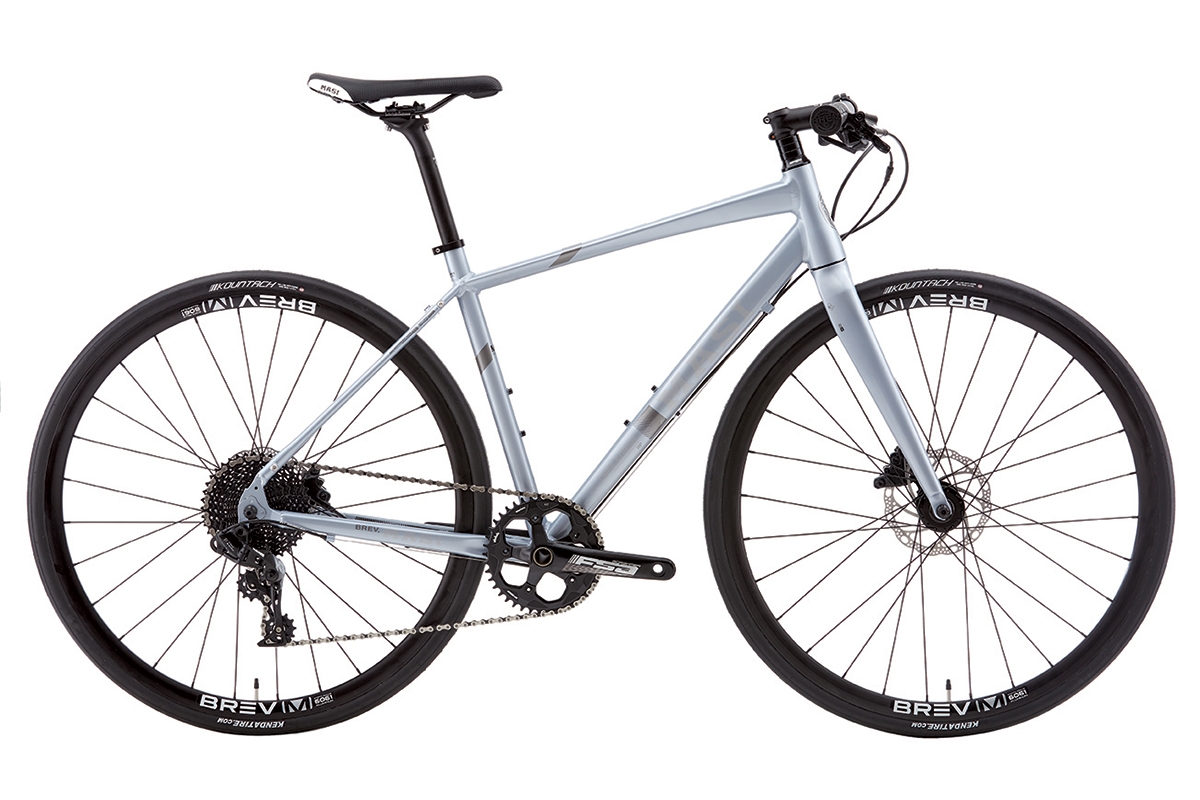

Drawing its geometry and DNA from our fast and lightweight performance range, the all new Masi Caffe Corsa is optimized for speed, comfort and versatility. Equipped with SRAM's NX 1 X 11 Drive train, flat-mount hydraulic disc brakes and a flat-top low-rise handlebar, this fast paced urban racer combines the stellar handling, responsive gearing, and intelligent specification that the fast urban rider demands.

FEATURES

  • All-New Masi Comfort Tuned Alloy MA5 Disc alloy frame, full internal cable routing, tapered 1.5" head tube, flat mount disc
  • New Masi Elite/RS Disc carbon integrated w/tapered 7075 alloy steerer & flat mount disc
  • SRAM NX shifter & rear derailleur
  • FSA Gossamer 1X 42t crankset w/FSA sealed cartridge BB
  • Sunrace CSM8 11-40t 11-spd cassette
  • Tektro R310 flat mount hydraulic disc brakes
  • New Brev. M 3D forged alloy cockpit
  • New Brev. M 28mm Race Disc rims w/ Alloy 28h disc hubs w/alloy QR
  • Kenda Kriterium 28c tires
SPECIFICATIONS
Frame Components
Frame New Masi Ma5 Disc Double-Butted Alloy w/ Internal Tapered 1.5" Head Tube, Flat Mount Disc Brakes
Fork Masi Elite/Rs Carbon Integrated w/ 7075 Alloy Tapered Steerer, 12mm Thru-Axle
Headset FSA No.42; Orbit C-40 Sealed 1-1/8 ACB Top, 1.5" Industrial Sealed Bottom
Drivetrain
Cranks FSA Gossamer 1X, 42T
Bottom Bracket FSA Megaexo Sealed Cartridge
Chain KMC X11-1
Front Derailleur N/A
Rear Deralleur Sram NX 11-spd
Derailleur Shifter Sram NX Trigger
Pedals N/A
Wheels
Tires Kenda Kriterium 28c
Wheels/Rims New Brev. M 28mm Race Disc Rims, Alloy 28h Disc Cassette Hubs w/Alloy QR
Freewheel/Cassette Sunrace Csm8 11-40T, 11-spd
Braking System
Brakes Tektro R310 Flat Mount Hydraulic Disc, 160F/160R
Brake Levers Tektro R310 Hydraulic Disc
Other Components
Grips Ergo Kraton
Handle Bar New Brev. M 31.8 Alloy Flattop Bar
Stem New Brev. M 3D Forged Flip/Flop Stem
Seat New Masi Scs
Seat Post New Brev. M 3D Forged 1-Piece Alloy 27.2 X 300mm
Seat Clamp Alloy, 31.8mm
GEOMETRY
Size Head Angle Seat Angle Top Tube (Effective) Seat Tube (C-T) Chainstay Length BB Drop Wheel Base Stand Over Stack Height Reach Fork Height Fork Offset Stem Length Bar Width Crank Length
XS 71° 74° 515mm (20.3") 43mm (1.7") 425mm (16.7") 73mm (2.9") 992mm (39.1") 729mm (28.7") 530mm (20.9") 363mm (14.3") 50mm (2")
S 72° 74° 530mm (20.9") 46.5mm (1.8") 425mm (16.7") 73mm (2.9") 993mm (39.1") 758mm (29.8") 554mm (21.8") 371mm (14.6") 45mm (1.8")
M 72.5° 73° 545mm (21.5") 50mm (2") 425mm (16.7") 70mm (2.8") 995mm (39.2") 788mm (31") 572mm (22.5") 370mm (14.6") 45mm (1.8")
M/L 72.5° 73° 560mm (22") 53.5mm (2.1") 425mm (16.7") 68mm (2.7") 1006mm (39.6") 815mm (32.1") 591mm (23.3") 379mm (14.9") 40mm (1.6")
L 72.5° 72° 580mm (22.8") 55.5mm (2.2") 425mm (16.7") 68mm (2.7") 1014mm (39.9") 830mm (32.7") 610mm (24") 382mm (15") 40mm (1.6")
XL 72.5° 72° 600mm (23.6") 58.5mm (2.3") 425mm (16.7") 65mm (2.6") 1035mm (40.7") 853mm (33.6") 626mm (24.6") 397mm (15.6") 40mm (1.6")
