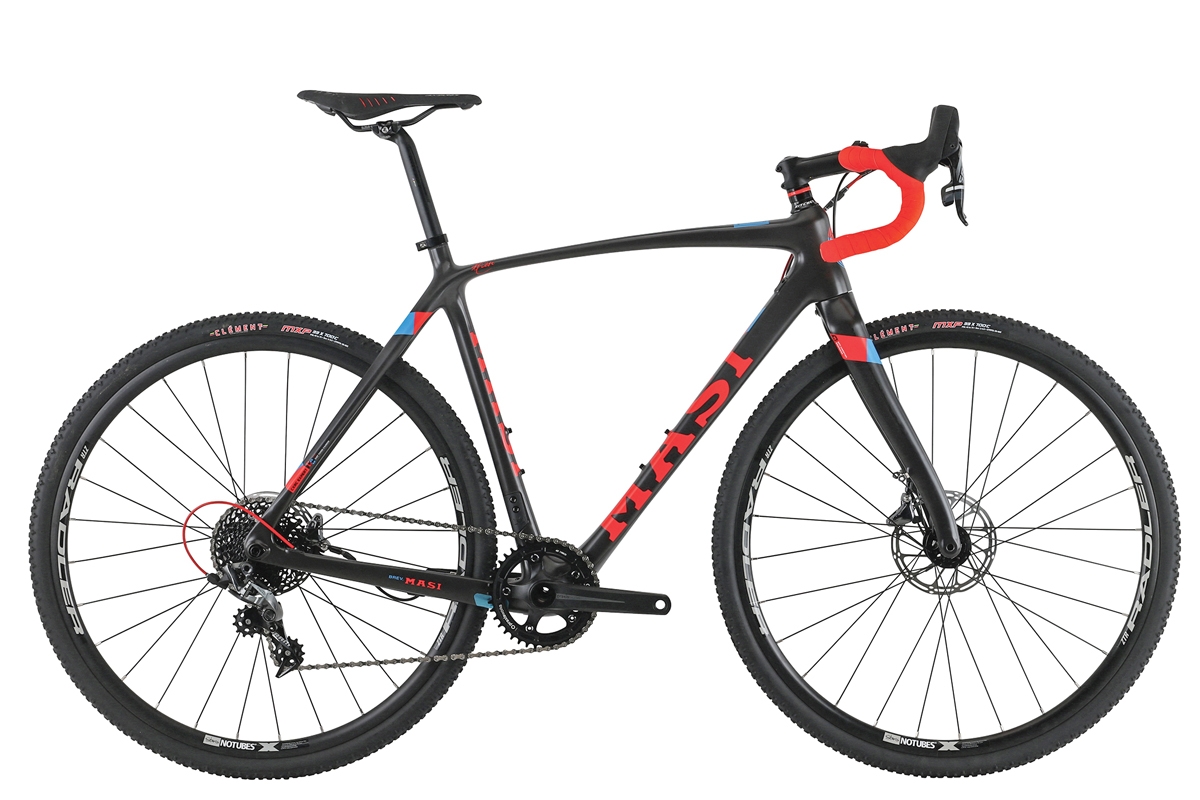

Designed and built as our ultimate CX Race weapon, the Masi CXRc Expert embodies our belief in deploying a leading edge race bike that translates every bead of sweat, turn of the pedal and calorie burned into a faster and more rewarding experience for the competitor. Using everything we have learned about the depths of despair and the glory of the fastest lines, this advanced racer thrives on the fight for every inch of soft ground and gravel that stands between you and the podium. Masi's Dirt Tuned Carbon frame and fork features thru-axle dropouts and clearance for the fattest knobs. SRAM's Force 1 race drivetrain provide precise control, and the addition of removable fender mounts transforms this thoroughbred into a hardworking trail bike for those who just want to ride.
FEATURES
- Masi Dirt Tuned MC9 carbon, 12mm thru-axle, Di2 compatible, BB86, internal routing, 1.5" tapered headtube & flat-mount disc brake
- Masi Dirt Tuned MC9 full carbon, 12mm thru-axle, internal brake routing, flat-mount brake
- SRAM Force 1 rear derailleur & shifters / levers
- Praxis Works Zayante 1X 40t crankset w/ Praxis Works M30 by Enduro BB
- SRAM PG1130 11-spd 11-36t cassette
- SRAM Force HRD flat mount hydraulic disc brakes
- Custom Ritchey WCS EvoMax bar, WCS 1 Bolt seatpost, WCS C220 stem
- Stans NoTubes Radler Disc rims w/ Alloy 28h disc thru-axle disc hubs w/alloy TA
- Clement MXP 33c 60tpi folding tires
- Fizik Antares R5 saddle
| Frame Components | |
|---|---|
| Frame | Masi Dirt Tuned MC9 Carbon, 12mm Thru-Axle, Di2 Compatible, BB86, Internal Routing, 1.5" Tapered Headtube & Flat-Mount Disc Brakes |
| Fork | Masi Dirt Tuned MC9 Full Carbon, 12mm Thru-Axle, Internal Brake Routing, Flat-Mount Brake |
| Headset | FSA No.42; Orbit C-40 Sealed 1-1/8 ACB Top, 1.5" Industrial Sealed Bottom |
| Drivetrain | |
| Cranks | Praxis Works Zayante 1X 40T |
| Bottom Bracket | Praxis Works M30 By Enduro |
| Chain | KMC X11-1 |
| Front Derailleur | N/A |
| Rear Deralleur | Sram Force 1 |
| Derailleur Shifter | Sram Force 1 |
| Pedals | N/A |
| Wheels | |
| Tires | Clement MXP 33c 60Tpi Folding |
| Wheels/Rims | Stans Notubes Radler Disc Rims, Alloy 28h 12mm Thru-Axle Hubs w/Alloy TA |
| Freewheel/Cassette | Sram PG1130 11-36t |
| Braking System | |
| Brakes | Sram Force Hrd Hydraulic Flat Mount Disc, 160F/160R |
| Brake Levers | Sram Force 1 |
| Other Components | |
| Grips | New Masi Gripper Tape w/Gel |
| Handle Bar | Ritchey Road Evomax WCS Handlebar; 12 Degree Flair, 31.8mm |
| Stem | Ritchey Wcs C220 Stem |
| Seat | Fizik Antare R5 |
| Seat Post | Ritchey Wcs Alloy 1 Bolt 27.2 X 300mm |
| Seat Clamp | Alloy, 31.8mm |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 71° | 74° | 515mm (20.3") | 490mm (19.3") | 425mm (16.7") | 68mm (2.7") | 990mm (39") | 753mm (29.6") | 542mm (21.3") | 360mm (14.2") | 45mm (1.8") | ||||
| 52 | 72° | 73.5° | 535mm (21.1") | 520mm (20.5") | 425mm (16.7") | 68mm (2.7") | 995mm (39.2") | 772mm (30.4") | 555mm (21.9") | 371mm (14.6") | 45mm (1.8") | ||||
| 55 | 72° | 73° | 560mm (22") | 550mm (21.7") | 425mm (16.7") | 68mm (2.7") | 1016mm (40") | 800mm (31.5") | 565mm (22.2") | 387mm (15.2") | 45mm (1.8") | ||||
| 57 | 72° | 73° | 575mm (22.6") | 570mm (22.4") | 425mm (16.7") | 68mm (2.7") | 1031mm (40.6") | 822mm (32.4") | 588mm (23.1") | 395mm (15.6") | 45mm (1.8") | ||||
| 60 | 72° | 72.5° | 590mm (23.2") | 600mm (23.6") | 425mm (16.7") | 68mm (2.7") | 1041mm (41") | 847mm (33.3") | 607mm (23.9") | 398mm (15.7") | 45mm (1.8") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
