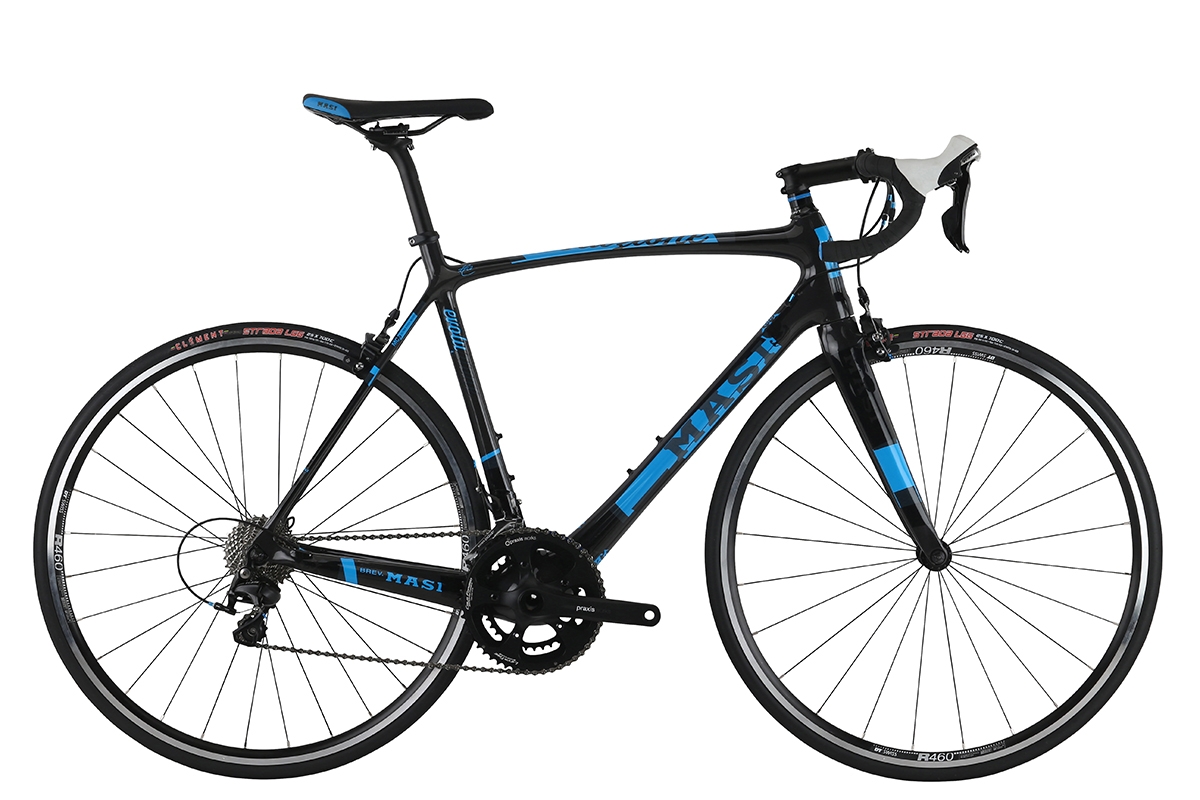

The high quality ride characteristics of our entry level Masi Evoluzione 105 performance bike continues to set us apart as a brand that delivers quality and technology across a range of price points. Utilizing our innovative MC9 Race tuned frame and fork technology, the Evo 105 meets the high standards that Masi customers around the world have come to expect. Featuring direct mount Shimano 105 brakes and equipped with our proprietary BREV.M 3D forged cockpit and 24mm wide rims, The Evo 105 considers everything in its oath, before accelerating through with the confidence and style of a purebred winner.
FEATURES
- Masi Race Tuned Carbon MC9 carbon, Di2 compatible, BB86, internal routing, 1.5" tapered headtube & direct-mount brakes
- Masi Race Tuned Carbon MC9 monocoque carbon, direct-mount brake
- Shimano 105 derailleurs, shifters & brakes
- Praxis Works Alba 52/36t crankset w/Praxis Works M30 by Enduro BB
- Shimano 105 5800 11-spd 11-28t cassette
- Shimano 105 direct mount dual pivot brakes
- New Brev. M 3D forged alloy cockpit
- DT Swiss R460 rims w/ Alloy 24/28h hubs w/alloy QR
- Clement Strada LGG 25c 60tpi folding tires
| Frame Components | |
|---|---|
| Frame | Masi Race Tuned Carbon MC9 Carbon, Di2 Compatible, BB86, Internal Routing, 1.5" Tapered Headtube & Direct Mount Brakes |
| Fork | Masi Race Tuned Carbon MC8 Monocoque Carbon, Direct Mount Brake |
| Headset | FSA No.42; Orbit C-40 Sealed 1-1/8 ACB Top, 1.5" Industrial Sealed Bottom |
| Drivetrain | |
| Cranks | Praxis Works Alba Mid-Compact 52/36t |
| Bottom Bracket | Praxis Works M30 By Enduro |
| Chain | KMC X11 |
| Front Derailleur | Shimano 105 |
| Rear Deralleur | Shimano 105 5800 11-spd |
| Derailleur Shifter | Shimano 105 11-spd |
| Pedals | N/A |
| Wheels | |
| Tires | Clement Strada LGG 25c 60Tpi Folding |
| Wheels/Rims | Dt Swiss R460 Rims, Alloy 24/28h Cassette Hubs, GCC Bearings w/ Alloy QR |
| Freewheel/Cassette | Shimano 5800 11-28t, 11-spd |
| Braking System | |
| Brakes | Shimano 105 Direct Mount Dual Pivot |
| Brake Levers | Shimano 105 |
| Other Components | |
| Grips | New Masi Gripper Tape w/Gel |
| Handle Bar | New Brev. M 31.8 Alloy Bar |
| Stem | New Brev. M 3D Forged Flip/Flop Stem |
| Seat | New Masi Scs |
| Seat Post | New Brev. M 3D Forged Alloy 27.2 X 300mm |
| Seat Clamp | Alloy, 31.8mm |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 72° | 74° | 520mm (20.5") | 470mm (18.5") | 405mm (15.9") | 68mm (2.7") | 964mm (38") | 712mm (28") | 502mm (19.8") | 376mm (14.8") | 45mm (1.8") | ||||
| 51 | 72.5° | 74° | 530mm (20.9") | 510mm (20.1") | 405mm (15.9") | 68mm (2.7") | 970mm (38.2") | 744mm (29.3") | 523mm (20.6") | 380mm (15") | 45mm (1.8") | ||||
| 54 | 73° | 74° | 545mm (21.5") | 540mm (21.3") | 405mm (15.9") | 68mm (2.7") | 981mm (38.6") | 764mm (30.1") | 543mm (21.4") | 389mm (15.3") | 45mm (1.8") | ||||
| 56 | 73.5° | 73.5° | 565mm (22.2") | 560mm (22") | 405mm (15.9") | 68mm (2.7") | 989mm (38.9") | 797mm (31.4") | 565mm (22.2") | 398mm (15.7") | 43mm (1.7") | ||||
| 58 | 73° | 73.5° | 585mm (23") | 580mm (22.8") | 405mm (15.9") | 68mm (2.7") | 1014mm (39.9") | 817mm (32.2") | 582mm (22.9") | 413mm (16.3") | 43mm (1.7") | ||||
| 61 | 73° | 73.5° | 600mm (23.6") | 610mm (24") | 405mm (15.9") | 68mm (2.7") | 1029mm (40.5") | 842mm (33.1") | 601mm (23.7") | 422mm (16.6") | 43mm (1.7") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
