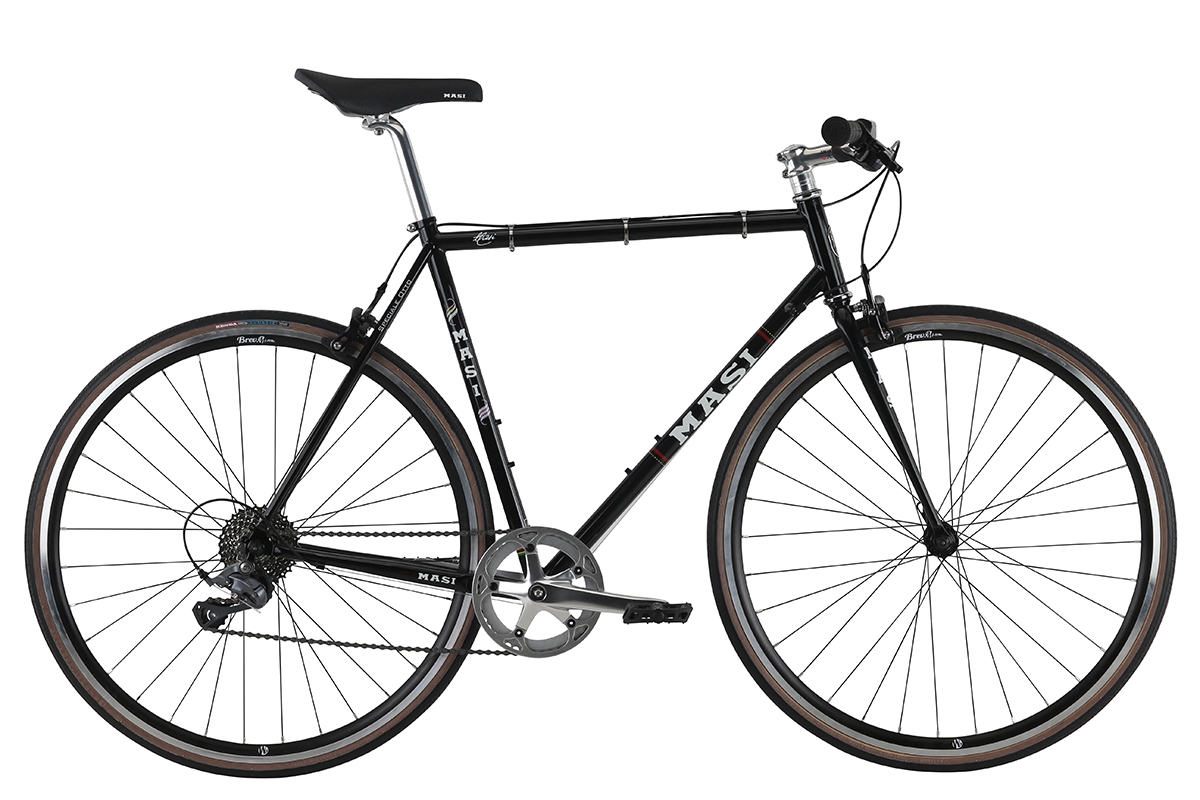

The Speciale Otto finds the ultimate sweet spot between style and functionality. The versatile, light and responsive chromoly frame and fork rolls out on new Brev.M 28mm deep race rims and 27c Kendal tires to offer superior grip and precision handling. Equipped with a simple Shimano 8 speed drivetrain and Brev.M contact points, the Speciale Otto is a stylish street shredder that can also go the distance.
FEATURES
- Masi chromoly tig welded frame w/ integrated seat clamp
- Masi straight leg chromoly fork
- Brev. M alloy crankset 44t w/ sealed BB
- 1x8 Shimano drivetrain
- Shimano Claris 8sp rear derailleur and shifter
- Shimano 8sp cassette
- New Brev. M 25mm alloy riser bars w/ new Brev. M 3D forged stem
- Brev. M no flange grips
- Brev. M Classico saddle
- New Brev. M 1-piece alloy seatpost
- New Brev. M 28mm deep Race rims, alloy 32h cassette hubs w/alloy QR
- Kenda Kontender 26c tires
- Tektro R315 dual pivot brakes
| Frame Components | |
|---|---|
| Frame | Masi Chromoly Tig Welded Frame w/ Integrated Seat Clamp |
| Fork | Masi Straight Leg Chromoly |
| Headset | FSA Threadless, 1 1/8" |
| Drivetrain | |
| Cranks | Brev. M Alloy Crankset 44t w/ Alloy Chain Guard |
| Bottom Bracket | Square Taper, Sealed Bearing |
| Chain | KMC Z7 |
| Front Derailleur | N/A |
| Rear Deralleur | Shimano Claris 2400 |
| Derailleur Shifter | Masi Classico |
| Pedals | Nylon Flat Plastic |
| Wheels | |
| Tires | Kenda Kontender 700 X 26c |
| Wheels/Rims | New Brev. M 28mm Race Rims, Alloy 32h Cassette Hubs w/Alloy QR |
| Freewheel/Cassette | Shimano HG50, 11-30t, 8-Spd |
| Braking System | |
| Brakes | Tektro R315 Dual Pivot |
| Brake Levers | Tektro HAL89A |
| Other Components | |
| Grips | Shimano Claris Rapidfire, 8-Spd |
| Handle Bar | Brev. M Alloy Forged Flip/Flop Stem, 25.4mm |
| Stem | Brev. M No Flange Grip |
| Seat | Brev. M Alloy 1 Piece, 27.2mm |
| Seat Post | Integrated With Frame |
| Seat Clamp | Alloy QR |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 72° | 74.5° | 520mm (20.5") | 490mm (19.3") | 408mm (16.1") | 70mm (2.8") | 967mm (38.1") | 731mm (28.8") | 500mm (19.7") | 380mm (15") | 43mm (1.7") | ||||
| 51 | 72.5° | 74° | 530mm (20.9") | 510mm (20.1") | 408mm (16.1") | 70mm (2.8") | 969mm (38.1") | 753mm (29.6") | 518mm (20.4") | 380mm (15") | 43mm (1.7") | ||||
| 53 | 72° | 73.5° | 535mm (21.1") | 530mm (20.9") | 408mm (16.1") | 70mm (2.8") | 975mm (38.4") | 772mm (30.4") | 534mm (21") | 386mm (15.2") | 43mm (1.7") | ||||
| 56 | 72° | 73° | 555mm (21.9") | 560mm (22") | 408mm (16.1") | 70mm (2.8") | 987mm (38.9") | 801mm (31.5") | 562mm (22.1") | 393mm (15.5") | 43mm (1.7") | ||||
| 58 | 72° | 73° | 575mm (22.6") | 580mm (22.8") | 408mm (16.1") | 70mm (2.8") | 997mm (39.3") | 823mm (32.4") | 581mm (22.9") | 403mm (15.9") | 43mm (1.7") | ||||
| 60 | 72° | 72.5° | 590mm (23.2") | 600mm (23.6") | 408mm (16.1") | 70mm (2.8") | 1017mm (40") | 840mm (33.1") | 598mm (23.5") | 418mm (16.5") | 43mm (1.7") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
