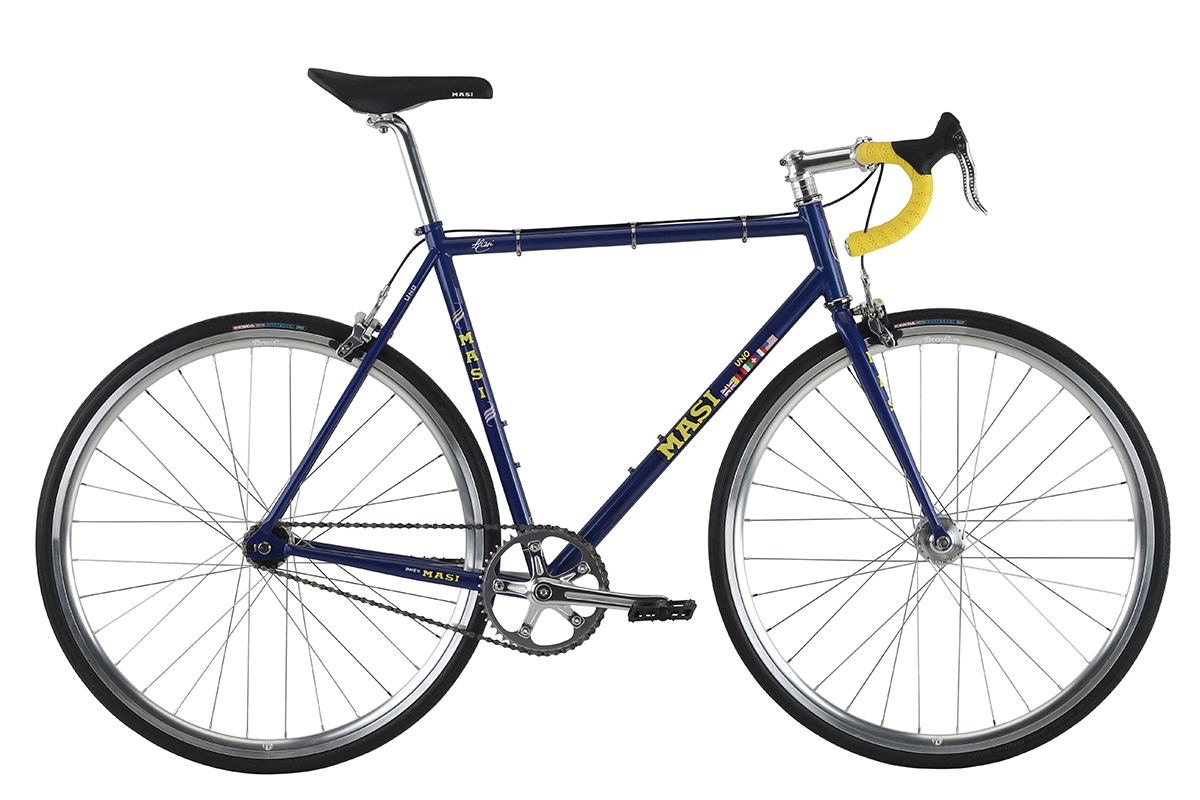

Inspired by the classic steel racers of the golden era, the Uno Drop holds nothing back. Simple clean lines and the timeless beauty of a single speed bike position man and machine effectively over one rapid gear. For 2017 we upgrade to a new Brev.M 1 pc. seat post and 28mm deep race rims. Indulge the true art of bike riding in its simplest and most organic form.
FEATURES
- Masi tig welded chromoly frame w/ Masi track dropouts & integrated seat clamp
- Masi straight leg chromoly fork
- Alloy Retro crankset 46t w/ sealed BB
- New Brev. M compact alloy drop bar w/ new Brev. M alloy 3D forged stem
- Brev. M Classico saddle
- New Brev. M 1-piece alloy seatpost
- Alloy flip/flop hubs with 16t cog & freewheel
- New Brev. M 28mm deep Race rims 32h, alloy flip/flop hubset w/ track nuts
- Kenda Kontender 26c tires
- Tektro R315 dual pivot brakes
| Frame Components | |
|---|---|
| Frame | Masi Tig Welded Chromoly Frame w/ Masi Track Dropouts & Integrated Seat Clamp |
| Fork | Masi Straight Leg Chromoly |
| Headset | FSA Threadless, 1 1/8" |
| Drivetrain | |
| Cranks | Brev.M Alloy Retro Crankset, 46t |
| Bottom Bracket | Square Taper, Sealed Bearing |
| Chain | KMC Z410 |
| Front Derailleur | N/A |
| Rear Deralleur | N/A |
| Derailleur Shifter | N/A |
| Pedals | Nylon Flat Plastic |
| Wheels | |
| Tires | Kenda Kontender 700 X 26c |
| Wheels/Rims | New Brev. M 28mm Race Rims 32h, Alloy Flip/Flop Hubset w/ Track Nuts |
| Freewheel/Cassette | 16t Cog & 16t Freewheel |
| Braking System | |
| Brakes | Tektro R315 Dual Pivot |
| Brake Levers | Promax BL-256 |
| Other Components | |
| Grips | Masi Perforated Tape |
| Handle Bar | Brev. M Compact Alloy Drop Bar, 31.8mm |
| Stem | Brev. M Alloy 3D Forged Stem, 31.8mm |
| Seat | Masi Classico |
| Seat Post | Brev. M Alloy 1 Piece, 27.2mm |
| Seat Clamp | Integrated With Frame |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 72° | 74.5° | 520mm (20.5") | 490mm (19.3") | 402mm (15.8") | 70mm (2.8") | 961mm (37.8") | 723mm (28.5") | 499mm (19.6") | 380mm (15") | 45mm (1.8") | ||||
| 51 | 72.5° | 74° | 530mm (20.9") | 510mm (20.1") | 402mm (15.8") | 70mm (2.8") | 964mm (38") | 743mm (29.3") | 517mm (20.4") | 381mm (15") | 45mm (1.8") | ||||
| 53 | 73° | 73.5° | 545mm (21.5") | 530mm (20.9") | 402mm (15.8") | 70mm (2.8") | 969mm (38.1") | 760mm (29.9") | 534mm (21") | 387mm (15.2") | 43mm (1.7") | ||||
| 56 | 73.5° | 73° | 565mm (22.2") | 560mm (22") | 402mm (15.8") | 68mm (2.7") | 980mm (38.6") | 790mm (31.1") | 562mm (22.1") | 393mm (15.5") | 43mm (1.7") | ||||
| 58 | 74° | 73° | 580mm (22.8") | 580mm (22.8") | 402mm (15.8") | 68mm (2.7") | 991mm (39") | 810mm (31.9") | 581mm (22.9") | 403mm (15.9") | 43mm (1.7") | ||||
| 60 | 74° | 72.5° | 600mm (23.6") | 600mm (23.6") | 402mm (15.8") | 68mm (2.7") | 1005mm (39.6") | 827mm (32.6") | 598mm (23.5") | 412mm (16.2") | 43mm (1.7") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
