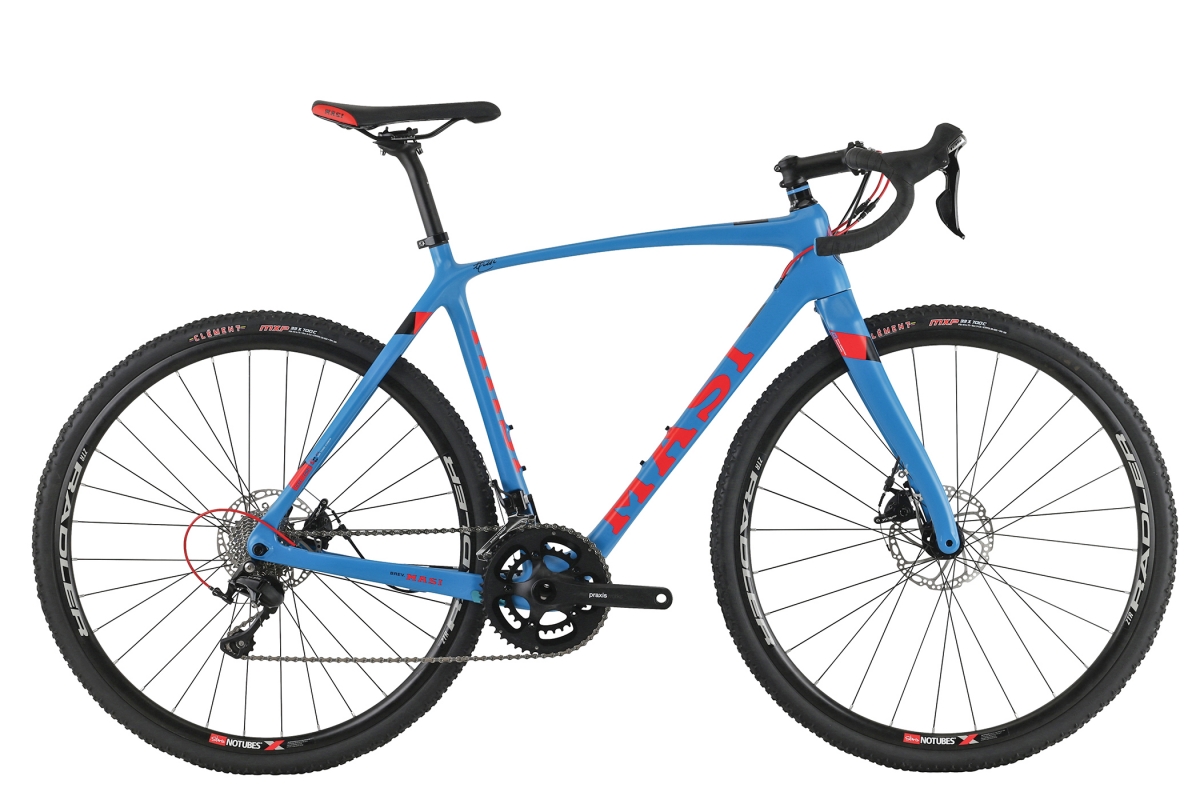

The CXRc Comp is the hard charging understudy in the Masi, performance Cyclocross range. Utilizing the same MC9 Dirt Tuned carbon frame and fork as our pro level race bike, the CXRc delivers phenomenal performance without the intimidating price. Strategic internal cable routing weaves through tube profiles designed for easy lift and carry. Our new wider, disc specific BREV.M rims, accommodate a range of modern tire sizes and removable fender mounts create desirable options for the longer, more mellow days on the trail. FSA Gossamer cranks and our BREV.M 3D forged aluminum cockpit complete this lightweight and adaptable CX Package.
FEATURES
- Masi Dirt Tuned MC9 carbon, 12mm thru-axle, Di2 compatible, BB86, internal routing, 1.5" tapered headtube & flat-mount disc brake
- Masi Dirt Tuned MC9 full carbon, 12mm thru-axle, internal brake routing, flat-mount brake
- Shimano 105 derailleurs & shifters / levers
- FSA Gossamer Cross 46/36t crankset w/ FSA BB86 sealed cartridge
- Shimano 105 5800 11-spd 11-28t cassette
- Tektro Spyre C flat mount mechanical disc brakes
- New Brev. M 3D forged alloy cockpit
- New Brev. M CXR Disc rims w/ Alloy 28h disc hubs w/alloy QR
- Clement MXP 33c 60tpi folding tires
| Frame Components | |
|---|---|
| Frame | Masi Dirt Tuned MC9 Carbon, 12mm Thru-Axle, Di2 Compatible, BB86, Internal Routing, 1.5" Tapered Headtube & Flat-Mount Disc Brakes |
| Fork | Masi Dirt Tuned MC9 Full Carbon, 12mm Thru-Axle, Internal Brake Routing, Flat-Mount Brake |
| Headset | FSA No.42; Orbit C-40 Sealed 1-1/8 ACB Top, 1.5" Industrial Sealed Bottom |
| Drivetrain | |
| Cranks | FSA Gossamer Cross, 36/46t |
| Bottom Bracket | FSA BB86 Sealed Cartridge |
| Chain | KMC X11 |
| Front Derailleur | Shimano 105 |
| Rear Deralleur | Shimano 105 5800 11-spd |
| Derailleur Shifter | Shimano 105 11-spd |
| Pedals | N/A |
| Wheels | |
| Tires | Clement MXP 33c 60Tpi Folding |
| Wheels/Rims | New Brev. M 21mm Internal Disc Rims, Alloy 28h 12mm Thru-Axle Hubs w/Alloy TA |
| Freewheel/Cassette | Shimano 5800 11-28t, 11-spd |
| Braking System | |
| Brakes | Tektro Spyre C Flat Mount Mechanical Disc, 160F/160R |
| Brake Levers | Shimano 105 |
| Other Components | |
| Grips | New Masi Gripper Tape w/Gel |
| Handle Bar | New Brev. M Cx 31.8 Alloy Bar |
| Stem | New Brev. M 3D Forged Flip/Flop Stem |
| Seat | New Masi Scs |
| Seat Post | New Brev. M 3D Forged Alloy 27.2 X 300mm |
| Seat Clamp | Alloy, 31.8mm |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 71° | 74° | 515mm (20.3") | 490mm (19.3") | 425mm (16.7") | 68mm (2.7") | 990mm (39") | 753mm (29.6") | 542mm (21.3") | 360mm (14.2") | 45mm (1.8") | ||||
| 52 | 72° | 73.5° | 535mm (21.1") | 520mm (20.5") | 425mm (16.7") | 68mm (2.7") | 996mm (39.2") | 772mm (30.4") | 555mm (21.9") | 371mm (14.6") | 45mm (1.8") | ||||
| 55 | 72° | 73° | 560mm (22") | 550mm (21.7") | 425mm (16.7") | 68mm (2.7") | 1016mm (40") | 800mm (31.5") | 565mm (22.2") | 387mm (15.2") | 45mm (1.8") | ||||
| 57 | 72° | 73° | 575mm (22.6") | 570mm (22.4") | 425mm (16.7") | 68mm (2.7") | 1031mm (40.6") | 822mm (32.4") | 588mm (23.1") | 395mm (15.6") | 45mm (1.8") | ||||
| 60 | 72° | 72.5° | 590mm (23.2") | 600mm (23.6") | 425mm (16.7") | 68mm (2.7") | 1041mm (41") | 847mm (33.3") | 607mm (23.9") | 398mm (15.7") | 45mm (1.8") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
