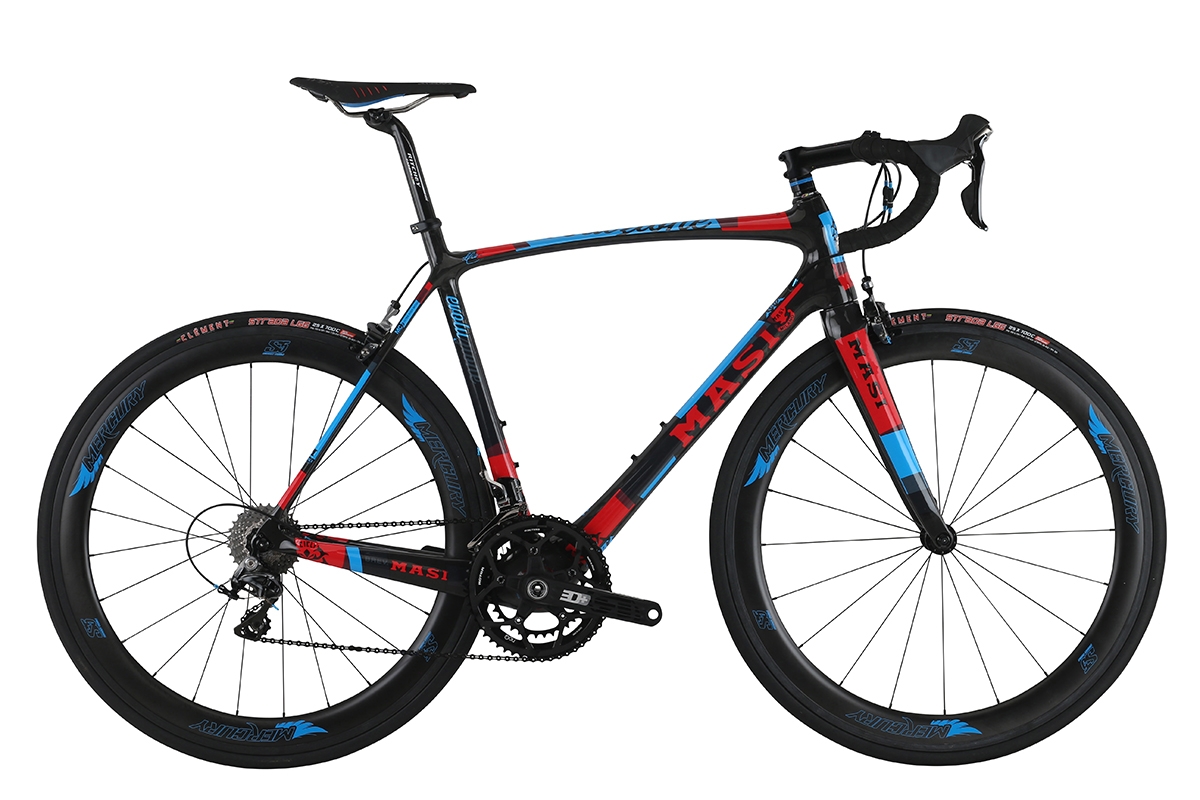

Every performance cyclist has a purpose and a goal; to be fitter and faster than the last ride. The role of the bicycle is that of an ally; a loyal partner that helps to translate your winning ambitions into results. Built around our intelligent and advanced Evoluzione platform, the 2017 Evo redefines the limits of smart specification and the pursuit of genuine performance gains. Race Tuned MC-X TeXtreme carbon delivers a light and stiff skeleton, while direct mount brakes enable greater tire clearance front and rear, so you can pile on the extra rubber. Rotor's 3D+ cranks deliver 100% of your watts to Shimano's Dura Ace transmission, while Mercury S5 carbon clinchers punch a hole in the air. Dream big and ride hard on our most advanced performance race bike to date.
FEATURES
- Masi Race Tuned Carbon MCX TeXtreme carbon, Di2 compatible, BB86, internal routing, 1.5" tapered headtube & direct-mount brakes
- Masi Race Tuned Carbon MCX monocoque TeXtreme carbon, direct-mount brake
- Shimano Dura Ace derailleurs, shifters & brakes
- Rotor 3D+ 52/36t crankset w/ Enduro dual-row bearing BB
- Shimano Dura Ace 9000 11-spd 11-28t cassette
- Shimano Dura Ace direct mount dual pivot brakes
- Ritchey WCS carbon EvoCurve bar, WCS Carbon 1 Bolt seatpost, WCS C220 stem
- Mercury S5 50mm carbon clincher wheelset
- Clement Strada LGG 25c 120tpi folding tires
- Fizik Antares R3 saddle
| Frame Components | |
|---|---|
| Frame | Masi Race Tuned Carbon MCX Textreme Carbon, Di2 Compatible, BB86, Internal Routing, 1.5" Tapered Headtube & Direct Mount Brakes |
| Fork | Masi Race Tuned Carbon MCX Monocoque Carbon, Direct Mount Brake |
| Headset | FSA No.42; Orbit C-40 Sealed 1-1/8 ACB Bearings, Carbon Cover |
| Drivetrain | |
| Cranks | Rotor 3D+, 52/36t |
| Bottom Bracket | Enduro Dual-Row Bearing BB86 |
| Chain | KMC X11 DLC Black |
| Front Derailleur | Shimano Dura Ace 9000 |
| Rear Deralleur | Shimano Dura Ace 9000 11-spd |
| Derailleur Shifter | Shimano Dura Ace 9000 11-spd |
| Pedals | N/A |
| Wheels | |
| Tires | Clement Strada LGG 25c 120Tpi Folding |
| Wheels/Rims | Mercury S5 50mm Carbon Clincher |
| Freewheel/Cassette | Shimano 9000 11-28t, 11-spd |
| Braking System | |
| Brakes | Shimano Dura Ace Direct Mount Dual Pivot |
| Brake Levers | Shimano Dura Ace 9000 |
| Other Components | |
| Grips | New Masi Gripper Tape w/Gel |
| Handle Bar | Ritchey Wcs Carbon Evocurve 31.8 |
| Stem | Ritchey Wcs C220 Stem |
| Seat | Fizik Antare R3 |
| Seat Post | Ritchey Wcs Carbon 1 Bolt 27.2 X 300mm |
| Seat Clamp | Alloy, 31.8mm |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 72° | 74° | 520mm (20.5") | 470mm (18.5") | 405mm (15.9") | 68mm (2.7") | 964mm (38") | 712mm (28") | 502mm (19.8") | 376mm (14.8") | 45mm (1.8") | ||||
| 51 | 72.5° | 74° | 530mm (20.9") | 510mm (20.1") | 405mm (15.9") | 68mm (2.7") | 970mm (38.2") | 744mm (29.3") | 523mm (20.6") | 380mm (15") | 45mm (1.8") | ||||
| 54 | 73° | 74° | 545mm (21.5") | 540mm (21.3") | 405mm (15.9") | 68mm (2.7") | 981mm (38.6") | 764mm (30.1") | 543mm (21.4") | 389mm (15.3") | 45mm (1.8") | ||||
| 56 | 73.5° | 73.5° | 565mm (22.2") | 560mm (22") | 405mm (15.9") | 68mm (2.7") | 989mm (38.9") | 797mm (31.4") | 565mm (22.2") | 398mm (15.7") | 43mm (1.7") | ||||
| 58 | 73° | 73.5° | 585mm (23") | 580mm (22.8") | 405mm (15.9") | 68mm (2.7") | 1014mm (39.9") | 817mm (32.2") | 582mm (22.9") | 413mm (16.3") | 43mm (1.7") | ||||
| 61 | 73° | 73.5° | 600mm (23.6") | 610mm (24") | 405mm (15.9") | 68mm (2.7") | 1029mm (40.5") | 842mm (33.1") | 601mm (23.7") | 422mm (16.6") | 43mm (1.7") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
