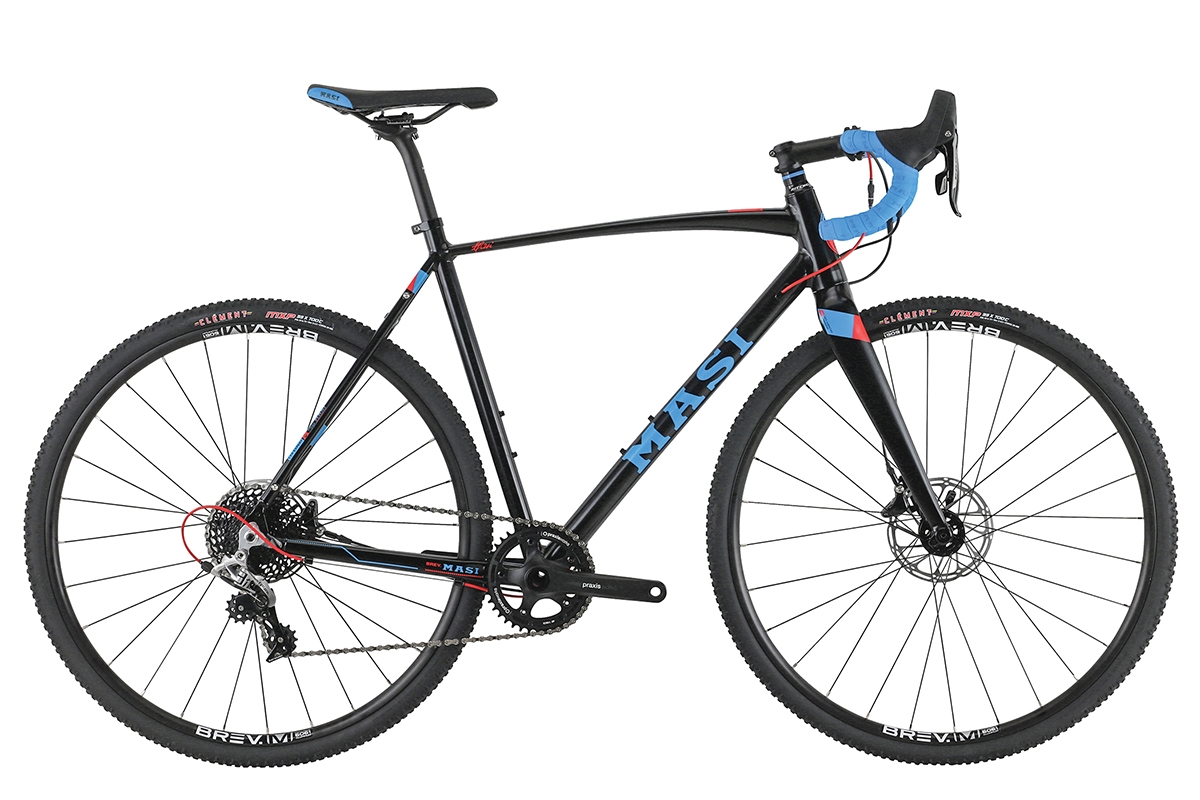

The all new, 2017 CXR Expert finds the ultimate sweet spot between desirable technology and outright affordability. Masi's Dirt Tuned Aluminum CX Race frame is designed to make your life easier in the hazy quagmire of the CX war zone. A series of quality components produce a lightweight and versatile package. The SRAM Rival CX Race drive-train, that features the Praxis Works' Alba single ring crankset, creates versatile gearing for those soul searching moments. And for those less intense adventures, rack and fender mounts allow for easy adaptation into a mellow weekend path finder.
FEATURES
- All-New Masi Dirt Tuned Alloy MA6 Disc alloy frame, full internal cable routing, tapered 1.5" head tube, BB86 press-fit BB, flat mount disc, QR/TA convertible dropout system
- New Masi Dirt Tuned MC7 Carbon w/ 7075 tapered 1.5" alloy steerer, 12mm thru-axle, flat mount disc brake, w/ fender mounts
- SRAM Rival 1 rear derailleur & shifters / levers
- Praxis Works Alba 1X 40t crankset w/Praxis Works M30 by Enduro BB
- SRAM PG1130 11-spd 11-36t cassette
- SRAM Rival HRD flat mount hydraulic disc brakes
- New Brev. M 3D forged alloy cockpit
- New Brev. M CXR Disc rims w/ Alloy 28h disc thru-axle disc hubs w/alloy TA
- Clement MXP 33c 60tpi folding tires
| Frame Components | |
|---|---|
| Frame | New Masi Ma6 Double-Butted Dirt Tuned Alloy w/ Integrated 1.5" Tapered Headtube, Internal Cable Routing, Flat-Mount Disc Brakes & QR/Ta Convertible Dropout System |
| Fork | New Masi Dirt Tuned MC7 Carbon w/ 7075 Tapered 1.5" Alloy Steerer, 12mm Thru-Axle, Flat Mount Disc Brake, w/ Fender Mounts |
| Headset | FSA No.42; Orbit C-40 Sealed 1-1/8 ACB Top, 1.5" Industrial Sealed Bottom |
| Drivetrain | |
| Cranks | Praxis Works Alba 1X 40T |
| Bottom Bracket | Praxis Works M30 By Enduro |
| Chain | KMC X11-1 |
| Front Derailleur | N/A |
| Rear Deralleur | Sram Rival 1 |
| Derailleur Shifter | Sram Rival 1 |
| Pedals | N/A |
| Wheels | |
| Tires | Clement MXP 33c 60Tpi Folding |
| Wheels/Rims | New Brev. M 21mm Internal Disc Rims, Alloy 28h 12mm Thru-Axle Hubs w/Alloy TA |
| Freewheel/Cassette | Sram PG-1130 11-36t |
| Braking System | |
| Brakes | Sram Rival Hrd Hydraulic Flat Mount Disc, 160F/160R |
| Brake Levers | Sram Rival 1 |
| Other Components | |
| Grips | New Masi Gripper Tape w/Gel |
| Handle Bar | New Brev. M Cx 31.8 Alloy Bar |
| Stem | New Brev. M 3D Forged Flip/Flop Stem |
| Seat | New Masi Scs |
| Seat Post | New Brev. M 3D Forged Alloy 27.2 X 300mm |
| Seat Clamp | Alloy, 31.8mm |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 71° | 74° | 515mm (20.3") | 490mm (19.3") | 425mm (16.7") | 68mm (2.7") | 989mm (38.9") | 753mm (29.6") | 532mm (20.9") | 360mm (14.2") | 45mm (1.8") | ||||
| 52 | 72° | 73.5° | 535mm (21.1") | 520mm (20.5") | 425mm (16.7") | 68mm (2.7") | 995mm (39.2") | 772mm (30.4") | 545mm (21.5") | 371mm (14.6") | 45mm (1.8") | ||||
| 55 | 72° | 73° | 560mm (22") | 550mm (21.7") | 425mm (16.7") | 68mm (2.7") | 1016mm (40") | 800mm (31.5") | 564mm (22.2") | 387mm (15.2") | 45mm (1.8") | ||||
| 57 | 72° | 73° | 575mm (22.6") | 570mm (22.4") | 425mm (16.7") | 68mm (2.7") | 1031mm (40.6") | 822mm (32.4") | 597mm (23.5") | 395mm (15.6") | 45mm (1.8") | ||||
| 60 | 72° | 72.5° | 590mm (23.2") | 600mm (23.6") | 425mm (16.7") | 68mm (2.7") | 1041mm (41") | 847mm (33.3") | 616mm (24.3") | 398mm (15.7") | 45mm (1.8") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
