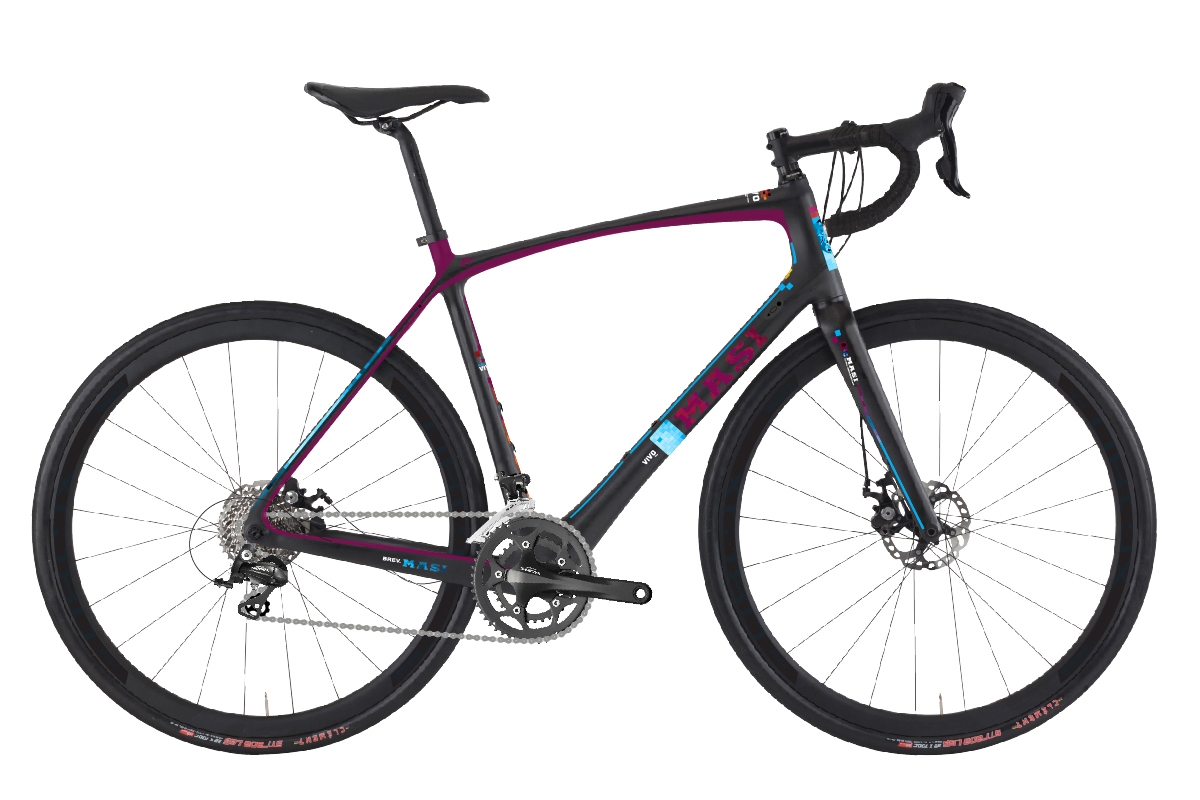

At Masi, we recognize and support the growing community of ambitious and talented female riders who set standards. The Masi Vivo Uno Bellissima becomes the catalyst for everything we love about designing and building female specific bikes. The "Uno Bell" harnesses the light and rigid attributes of our MC9 frame, with female specific componentry and a range of quality hardware to guarantee a high quality and low maintenance package. The wide ratio gearing makes those hard climbs a little less daunting, and the classic Masi paint and decals complete a stylish and affordable package.
FEATURES
- All-New Comfort-Tuned-Carbon MC9 Carbon frame, BB86, full internal cable routing, tapered headtube, 12mm thru-axle
- Masi CTC MC9 tapered full carbon fork w/ 12mm thru-axle
- 12mm Shimano e-thru axle F & R
- Shimano flat-mount disc brake mounts
- Shimano Sora 50/34t crankset w/ BB86 press-fit BB
- Shimano Sora 9 speed shifters, front & rear derailleurs
- Wide-ratio 11-32 cassette
- Custom KMC X9 chain
- Brev. M oversized alloy bar and forged flip/flop stem
- Weinmann disc-specific rims
- Masi SLS women’s-specific saddle
- Brev. M alloy zero-offset seatpost
- Clement Strada LGG 28mm tires
- Tektro Mira mechanical disc brake, 160mm F/140mm R rotors
| Frame Components | |
|---|---|
| Frame | Masi Comfort Tuned Carbon MC9 Carbon frame, BB86, full internal cable routing, tapered headtube, 12mm thru-axle |
| Fork | Masi CTC MC9 tapered full carbon fork with 12mm thru-axle |
| Headset | FSA Orbit No. 42 tapered |
| Drivetrain | |
| Cranks | Shimano Sora 50/34t |
| Bottom Bracket | Shimano BB86 press-fit |
| Chain | Custom KMC X9 |
| Front Derailleur | Shimano Sora 3500 |
| Rear Deralleur | Shimano Sora 3500 |
| Derailleur Shifter | Shimano Sora |
| Pedals | N/A |
| Wheels | |
| Tires | Clement Strada LGG 700 x 28c |
| Wheels/Rims | Weinmann 180 Disc 28h rims, 12mm Thru-Axle disc hubs |
| Freewheel/Cassette | Sunrace CSM90 11-32t |
| Braking System | |
| Brakes | Tektro Mira mechancial disc, 160F/140R rotors |
| Brake Levers | Shimano Sora 3500 |
| Other Components | |
| Grips | Masi embossed tape |
| Handle Bar | Brev. M alloy drop bar, 31.8mm |
| Stem | Brev. M alloy 3D forged stem, 31.8mm |
| Seat | Masi Bellissima |
| Seat Post | Brev. M Classic |
| Seat Clamp | Alloy, 31.8mm |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 71° | 74° | 515mm (20.3") | 43mm (1.7") | 425mm (16.7") | 73mm (2.9") | 992mm (39.1") | 729mm (28.7") | 530mm (20.9") | 363mm (14.3") | 50mm (2") | ||||
| S | 72° | 74° | 530mm (20.9") | 46.5mm (1.8") | 425mm (16.7") | 73mm (2.9") | 993mm (39.1") | 758mm (29.8") | 554mm (21.8") | 371mm (14.6") | 45mm (1.8") | ||||
| M | 72.5° | 73° | 545mm (21.5") | 50mm (2") | 425mm (16.7") | 70mm (2.8") | 995mm (39.2") | 788mm (31") | 572mm (22.5") | 370mm (14.6") | 45mm (1.8") | ||||
| M/L | 72.5° | 73° | 560mm (22") | 53.5mm (2.1") | 425mm (16.7") | 68mm (2.7") | 1006mm (39.6") | 815mm (32.1") | 591mm (23.3") | 379mm (14.9") | 40mm (1.6") | ||||
| L | 72.5° | 72° | 580mm (22.8") | 55.5mm (2.2") | 425mm (16.7") | 68mm (2.7") | 1014mm (39.9") | 830mm (32.7") | 610mm (24") | 382mm (15") | 40mm (1.6") | ||||
| XL | 72.5° | 72° | 600mm (23.6") | 58.5mm (2.3") | 425mm (16.7") | 65mm (2.6") | 1035mm (40.7") | 853mm (33.6") | 626mm (24.6") | 397mm (15.6") | 40mm (1.6") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
