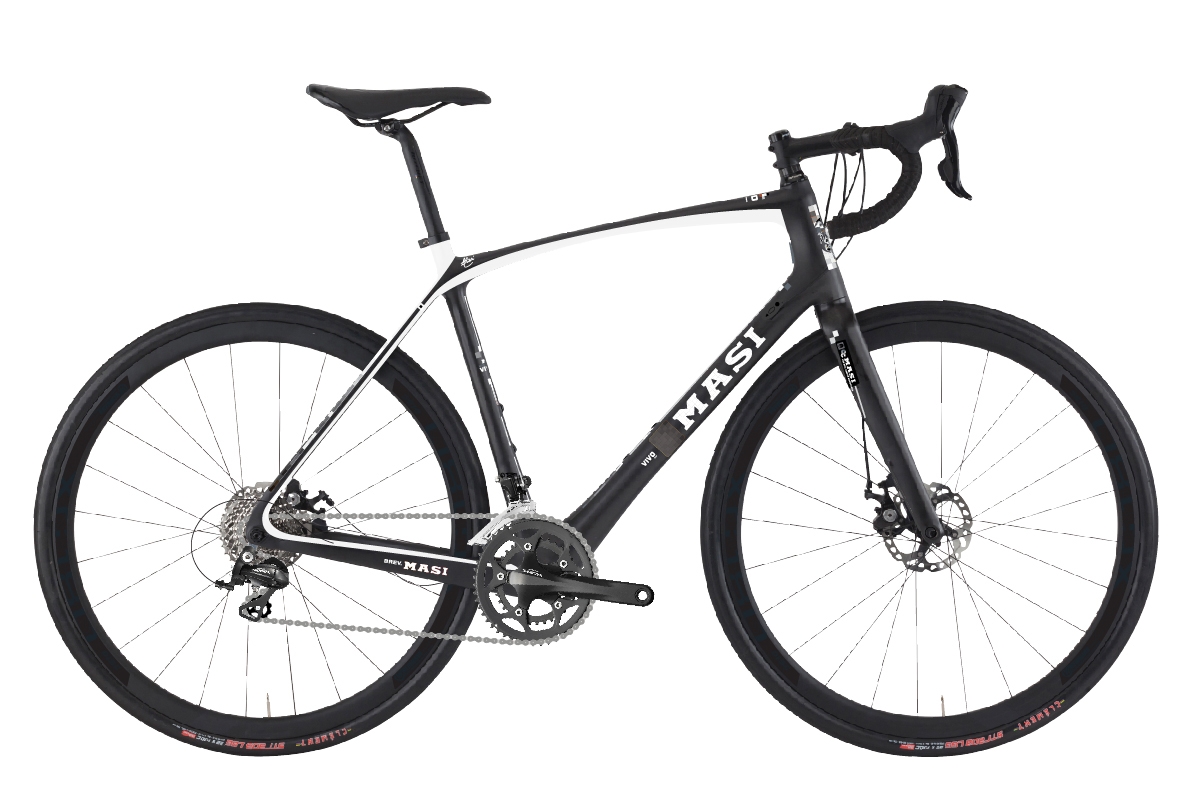

The Uno represents our "All Road" entry point. The Vivo Uno presents a blend of performance materials and quality components to achieve an intelligent combination of ride-ability and reliability. The MC9 Comfort tuned carbon fiber frame is light and stiff. The tapered head tube and fork create confident control while the wide ratio gearing enables you to find high and low cadence easily when the moment demands a decisive shift. The Vivo Uno represents value for money and a quality riding experience.
FEATURES
- All-New Comfort Tuned-Carbon MC9 Carbon frame, BB86, full internal cable routing, tapered headtube, 12mm thru-axle
- Masi CTC MC9 tapered full carbon fork w/ 12mm thru-axle
- 12mm Shimano e-thru axle F & R
- Shimano flat-mount disc brake mounts
- Shimano Sora 50/34t crankset w/ BB86 press-fit BB
- Shimano Sora 9 speed shifters, front & rear derailleurs
- Wide-ratio 11-32 cassette
- Custom KMC X9 chain
- Brev. M oversized alloy bar and forged flip/flop stem
- Weinmann disc-specific rims
- Masi SLS saddle
- Brev. M alloy seatpost
- Clement Strada LGG 28mm tires
- Tektro Mira mechanical disc brake, 160mm F/140mm R rotors
| Frame Components | |
|---|---|
| Frame | Masi Comfort Tuned Carbon MC9 Carbon frame, BB86, full internal cable routing, tapered headtube, 12mm thru-axle |
| Fork | Masi CTC MC9 tapered full carbon fork with 12mm thru-axle |
| Headset | FSA Orbit No. 42 tapered |
| Drivetrain | |
| Cranks | Shimano Sora 50/34t |
| Bottom Bracket | Shimano BB86 press-fit |
| Chain | Custom KMC X9 |
| Front Derailleur | Shimano Sora 3500 |
| Rear Deralleur | Shimano Sora 3500 |
| Derailleur Shifter | Shimano Sora |
| Pedals | N/A |
| Wheels | |
| Tires | Clement Strada LGG 700 x 28c |
| Wheels/Rims | Weinmann 180 Disc 28h rims, 12mm Thru-Axle disc hubs |
| Freewheel/Cassette | Sunrace CSM90 11-32t |
| Braking System | |
| Brakes | Tektro Mira mechancial disc, 160F/140R rotors |
| Brake Levers | Shimano Sora 3500 |
| Other Components | |
| Grips | Masi embossed tape |
| Handle Bar | Brev. M alloy drop bar, 31.8mm |
| Stem | Brev. M alloy 3D forged stem, 31.8mm |
| Seat | Masi SLS |
| Seat Post | Brev. M Classic |
| Seat Clamp | Alloy, 31.8mm |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 71° | 74° | 515mm (20.3") | 43mm (1.7") | 425mm (16.7") | 73mm (2.9") | 992mm (39.1") | 729mm (28.7") | 530mm (20.9") | 363mm (14.3") | 50mm (2") | ||||
| S | 72° | 74° | 530mm (20.9") | 46.5mm (1.8") | 425mm (16.7") | 73mm (2.9") | 993mm (39.1") | 758mm (29.8") | 554mm (21.8") | 371mm (14.6") | 45mm (1.8") | ||||
| M | 72.5° | 73° | 545mm (21.5") | 50mm (2") | 425mm (16.7") | 70mm (2.8") | 995mm (39.2") | 788mm (31") | 572mm (22.5") | 370mm (14.6") | 45mm (1.8") | ||||
| M/L | 72.5° | 73° | 560mm (22") | 53.5mm (2.1") | 425mm (16.7") | 68mm (2.7") | 1006mm (39.6") | 815mm (32.1") | 591mm (23.3") | 379mm (14.9") | 40mm (1.6") | ||||
| L | 72.5° | 72° | 580mm (22.8") | 55.5mm (2.2") | 425mm (16.7") | 68mm (2.7") | 1014mm (39.9") | 830mm (32.7") | 610mm (24") | 382mm (15") | 40mm (1.6") | ||||
| XL | 72.5° | 72° | 600mm (23.6") | 58.5mm (2.3") | 425mm (16.7") | 65mm (2.6") | 1035mm (40.7") | 853mm (33.6") | 626mm (24.6") | 397mm (15.6") | 40mm (1.6") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
