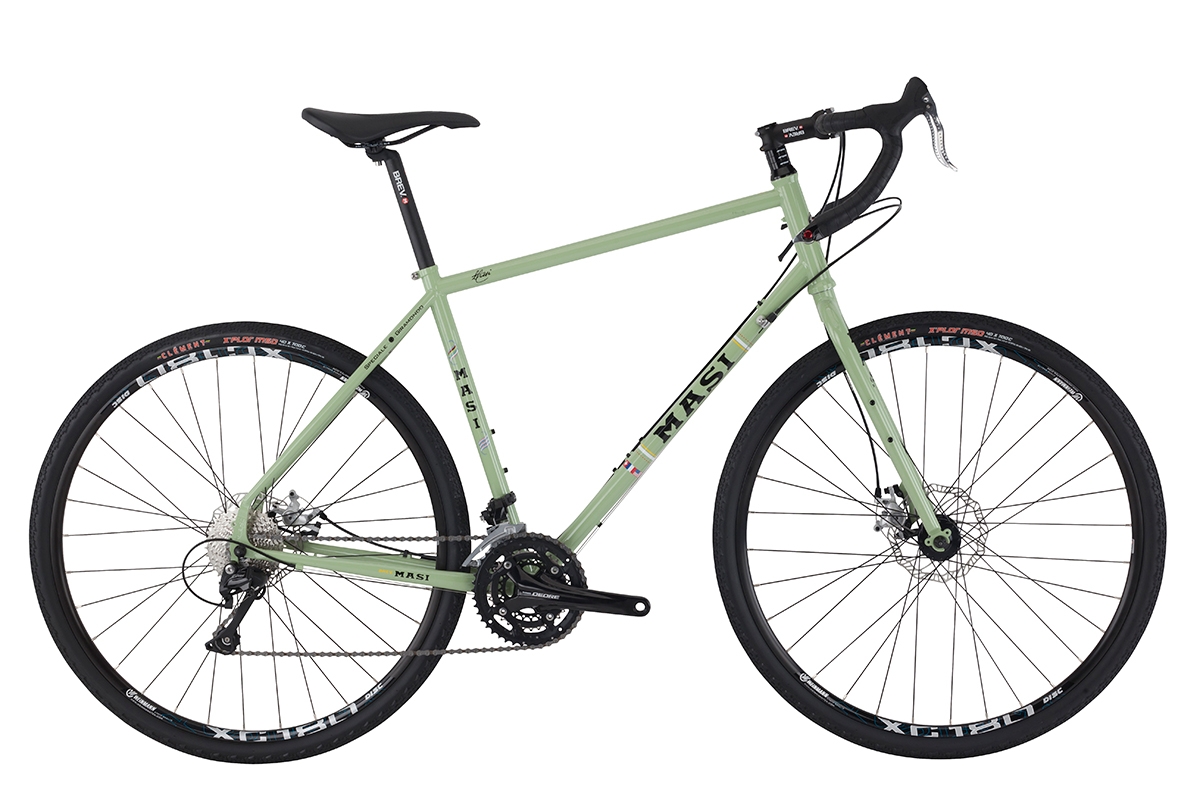

Our most versatile new model; the Masi Giramondo is a globetrotters dream. Designed for off road distance and adventure riding, this is the ultimate choice for long days with heavy loads. With relaxed touring geometry and plenty of options for mounting racks, bottles and bags, the Giramondo becomes a trusted companion for all eventualities and your cycling soul mate for the longest road.
FEATURES
- New 2016 Masi Giramondo disc frame, 100% double butted chromoly w/ rack & fender mounts, spoke holder & integrated headtube
- Masi chromoly touring fork, IS disc mount w/ rack, fender & bottle cage mounts
- Shimano Deore crankset, 44/32/24t w/ sealed Shimano BB
- Shimano Deore 10-speed front & rear derailleurs w/ Microshift barend shifters
- Shimano HG-500 11-32t, 10-speed cassette
- Brev. M flared alloy drop bar w/ Brev. M alloy 3D forged stem
- Brev.M alloy seatpost
- Weinmann XC180 32h rims, alloy 32h disc cassette hubs
- Clement X'Plor MSO 700x40c
- Promax DSK-300R disc brakes
| Frame Components | |
|---|---|
| Frame | New 2016 Masi Giramondo disc frame, 100% double butted chromoly w/ rack & fender mounts, spoke holder and integrated headtube |
| Fork | Masi chromoly touring fork, IS disc mount w/ rack, fender and bottle cage mounts |
| Headset | FSA No. 23, integrated sealed bearing |
| Drivetrain | |
| Cranks | Shimano Deore 2-pc, 44/32/24t |
| Bottom Bracket | Shimano SM-BB52, sealed bearing |
| Chain | Shimano CN-HG54, 10spd |
| Front Derailleur | Shimano Deore |
| Rear Deralleur | Shimano Deore, 10spd |
| Derailleur Shifter | MicroShift 10spd barend shifters |
| Pedals | N/A |
| Wheels | |
| Tires | Clement X'Plor MSO 700x40c |
| Wheels/Rims | Weinmann XC180 32h rims, Alloy 32h disc cassette hubs w/ alloy QR |
| Freewheel/Cassette | Shimano HG-500, 11-32t, 10spd |
| Braking System | |
| Brakes | Promax DSK-300R 160F/140R |
| Brake Levers | Promax BL-256 |
| Other Components | |
| Grips | Masi embossed tape |
| Handle Bar | Brev. M flared alloy drop bar, 31.8mm |
| Stem | Brev. M alloy 3D forged stem, 31.8mm |
| Seat | Masi SLS |
| Seat Post | Brev. M alloy 27.2mm |
| Seat Clamp | Integrated with frame |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 71° | 74° | 555mm (21.9") | 475mm (18.7") | 455mm (17.9") | 70mm (2.8") | 1067mm (42") | 792mm (31.2") | 584mm (23") | 387mm (15.2") | 50mm (2") | ||||
| M | 72° | 73.5° | 575mm (22.6") | 495mm (19.5") | 455mm (17.9") | 70mm (2.8") | 1072mm (42.2") | 813mm (32") | 610mm (24") | 394mm (15.5") | 50mm (2") | ||||
| L | 72° | 73° | 600mm (23.6") | 525mm (20.7") | 455mm (17.9") | 70mm (2.8") | 1092mm (43") | 839mm (33") | 634mm (25") | 406mm (16") | 50mm (2") | ||||
| XL | 72° | 72° | 625mm (24.6") | 550mm (21.7") | 455mm (17.9") | 70mm (2.8") | 1104mm (43.5") | 861mm (33.9") | 657mm (25.9") | 411mm (16.2") | 50mm (2") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
