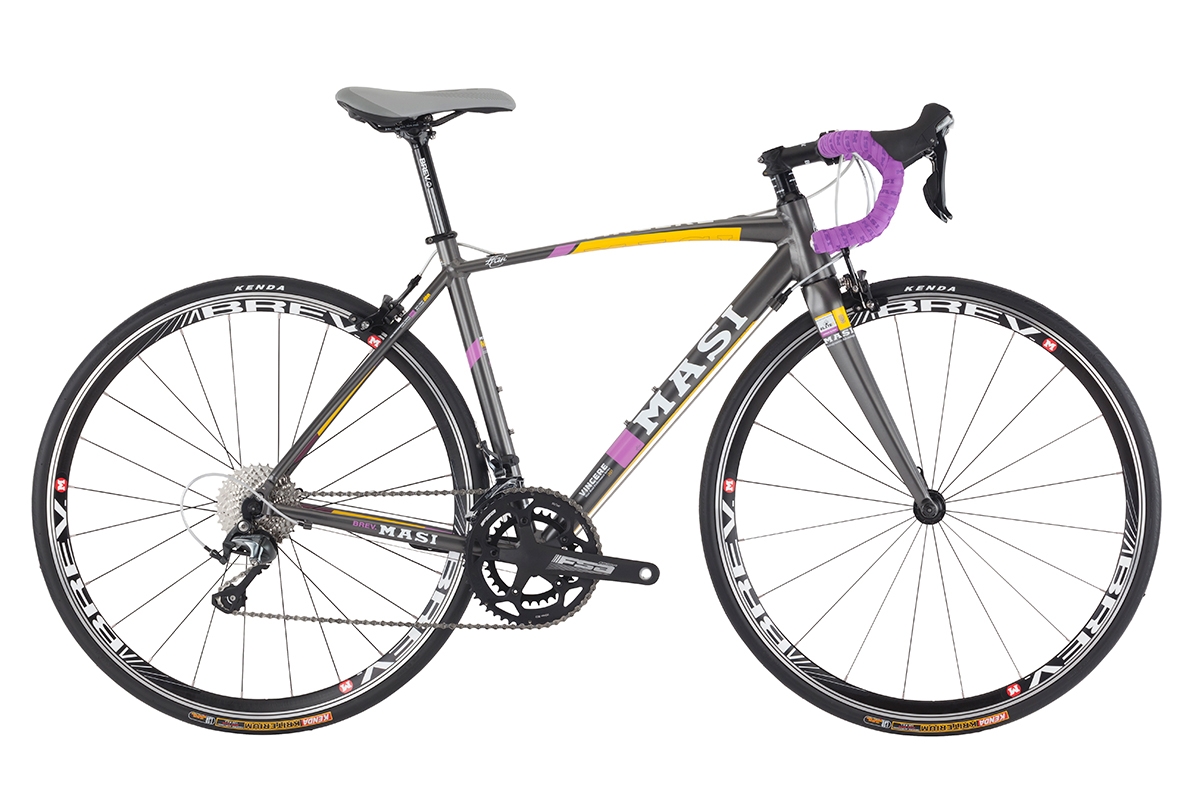

Featuring four women's specific sizes to choose from, women's specific components and wide-ratio gearing with 20 speeds, a long day in the saddle never felt so smooth and comfortable with an even lighter Vincere Bellissima for 2016.
FEATURES
- Masi MA-4 6061-T6 double-butted alloy frame w/ integrated tapered head tube, BB-86 shell & internal T/T cable routing
- Masi Elite/RS carbon integrated fork w/ tapered 7075 alloy steerer
- FSA Omega Compact 50-34T crankset w/ BB-AL-86 sealed cartridge BB set
- Shimano Tiagra 4700 derailleurs, shifters & levers
- Shimano Tiagra CS-HG500 10-speed 11-32T cassette
- Brev. M 31.8 alloy handlebar, 75mm reach
- Brev. M alloy Zero Offset seat-post
- Brev. M 30mm Race rims w/ 20/24h hubs
| Frame Components | |
|---|---|
| Frame | Masi MA4 double-butted alloy w/ integrated Tapered headtube & BB-86 |
| Fork | Masi Elite/RS carbon integrated w/ 7075 alloy Tapered steerer |
| Headset | FSA Orbit Integrated, Tapered 1-1/8"-1.5", AC bearing top, 46/56 w/ 15mm top cover |
| Drivetrain | |
| Cranks | Omega Compact 50-34t |
| Bottom Bracket | FSA BB-AL-86 sealed cartridge BB |
| Chain | KMC X-10 1/2" x 11/128" |
| Front Derailleur | Shimano Tiagra FD-4700 |
| Rear Deralleur | Shimano Tiagra 10-spd RD-4700 |
| Derailleur Shifter | Shimano Tiagra 10 speed ST-4700 |
| Pedals | Nylon body |
| Wheels | |
| Tires | Kenda Kriterium 25c |
| Wheels/Rims | Brev. M 30mm Race rims, alloy 20/24h cassette hubs w/ alloy QR |
| Freewheel/Cassette | Shimano Tiagra cassette, CS-HG500-10-spd, 11-32T |
| Braking System | |
| Brakes | Tektro R312 dual pivot w/ cartridge pads |
| Brake Levers | Shimano Tiagra |
| Other Components | |
| Grips | Masi embossed tape |
| Handle Bar | Brev. M 31.8 alloy, 75mm reach |
| Stem | Brev. M 3-D forged flip/flop stem, Ext. 70 to 90mm |
| Seat | Masi SLS Bellissima |
| Seat Post | Brev. M alloy Zero Offset 27.2 x 300mm |
| Seat Clamp | 31.8mm alloy clamp w/ bolt |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 71.5° | 75° | 519mm (20.4") | 470mm (18.5") | 408mm (16.1") | 73mm (2.9") | 977mm (38.5") | 723mm (28.5") | 505mm (19.9") | 383mm (15.1") | 45mm (1.8") | ||||
| 49 | 72° | 74.5° | 528mm (20.8") | 490mm (19.3") | 408mm (16.1") | 70mm (2.8") | 978mm (38.5") | 745mm (29.3") | 523mm (20.6") | 383mm (15.1") | 43mm (1.7") | ||||
| 51 | 72.5° | 74° | 537mm (21.1") | 510mm (20.1") | 408mm (16.1") | 70mm (2.8") | 978mm (38.5") | 759mm (29.9") | 534mm (21") | 384mm (15.1") | 43mm (1.7") | ||||
| 53 | 73° | 73.5° | 547mm (21.5") | 530mm (20.9") | 412mm (16.2") | 70mm (2.8") | 982mm (38.7") | 776mm (30.6") | 550mm (21.7") | 384mm (15.1") | 43mm (1.7") | ||||
| 56 | 73.5° | 73° | 560mm (22") | 560mm (22") | 412mm (16.2") | 68mm (2.7") | 986mm (38.8") | 806mm (31.7") | 579mm (22.8") | 383mm (15.1") | 43mm (1.7") | ||||
| 58 | 74° | 73° | 580mm (22.8") | 580mm (22.8") | 418mm (16.5") | 68mm (2.7") | 1007mm (39.6") | 826mm (32.5") | 600mm (23.6") | 397mm (15.6") | 43mm (1.7") | ||||
| 60 | 74° | 72.5° | 596mm (23.5") | 600mm (23.6") | 418mm (16.5") | 68mm (2.7") | 1016mm (40") | 843mm (33.2") | 614mm (24.2") | 402mm (15.8") | 43mm (1.7") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
