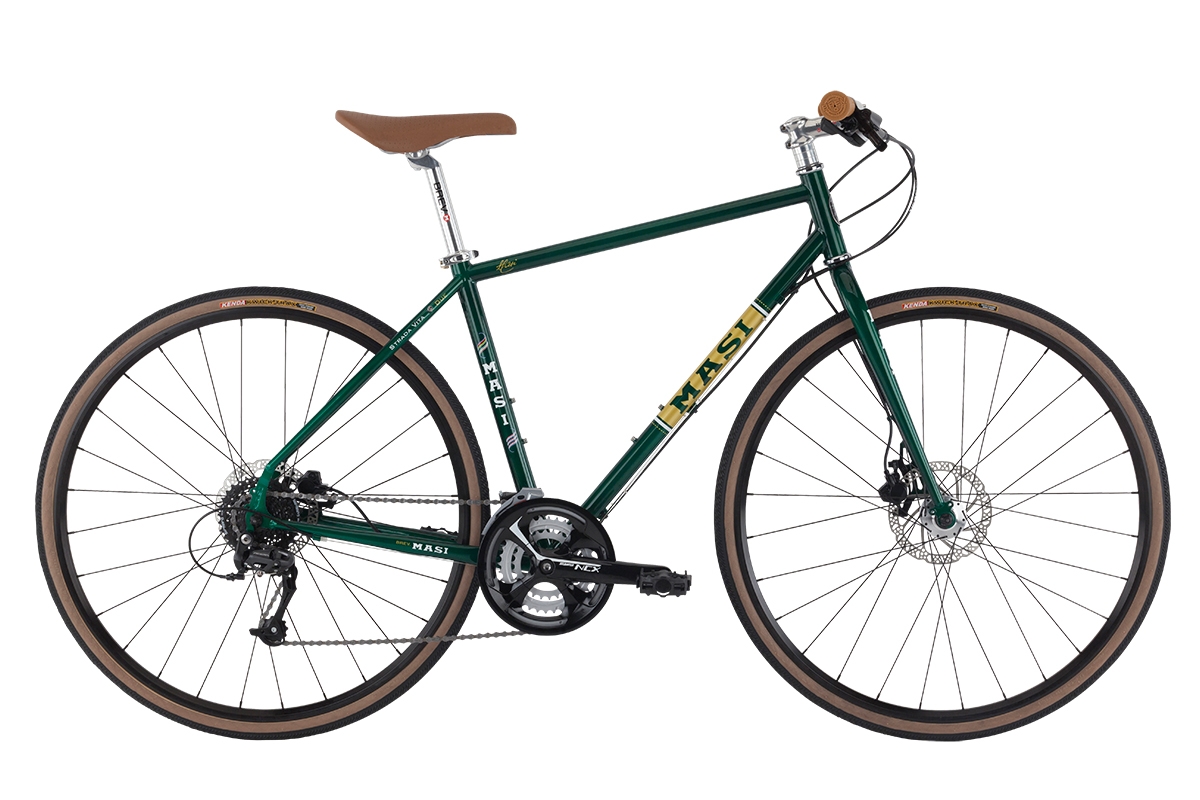

Upgrade to the ever stylish Due model with a fitness-specific NCX crankset, 27-speed gearingand powerful Auriga hydraulic disc brakes.
FEATURES
- Hybrid Sport Double Butted Crmo frame
- Masi Crmo fork w/ 1-1/8" steerer & disc mount
- Suntour NCX 48/36/26T crankset w/ sealed cartridge BB
- 27-speed gearing
- Shimano Altus front derailleur
- Shimano Acera rear derailleur
- Shimano Altus 3x9-speed shifters
- Shimano 9-speed 11-32T cassette
- Brev. M alloy handlebar & stem
- Weinmann LUX 20 Disc 700x32c, alloy double wheelset
- Kenda Kwick Bitumen 700x32c tires
- Tektro Auriga Hydraulic disc brakeset
| Frame Components | |
|---|---|
| Frame | Masi Hybrid Sport Double Butted Crmo |
| Fork | Masi Crmo, 1-1/8" steerer w/ disc mount |
| Headset | FSA TH-888; Sealed steel cups, Retainer bearings, w/ Plastic top cover |
| Drivetrain | |
| Cranks | Suntour NCX T418 48/36/26T |
| Bottom Bracket | Suntour BB10-XCT, square taper, 68x113mm sealed cartridge BB |
| Chain | KMC X9 1/2" x 11/128" |
| Front Derailleur | Shimano Altus, 3 x 9-spd compatible |
| Rear Deralleur | Shimano Acera 9-spd |
| Derailleur Shifter | Shimano Altus 3 x 9-speed |
| Pedals | Wellgo LU-895 9/6" Axles |
| Wheels | |
| Tires | Kenda Kwick Bitumen 700x32c |
| Wheels/Rims | Weinmann LUX 20 Disc 700x32c, alloy double wall rims, alloy disc / cassette 28h hubs |
| Freewheel/Cassette | Shimano CS-HG200-9, 9-spd, 11-32T |
| Braking System | |
| Brakes | Tektro Auriga Hydraulic Disc, 160mm discs front & rear |
| Brake Levers | Tektro Auriga |
| Other Components | |
| Grips | Brev. M, no flange |
| Handle Bar | Brev. M alloy 25mm riser bar 25.4mm |
| Stem | Brev. M melt forged stem, Ext. 90 to 110mm |
| Seat | Brev, M, Hybrid Sport |
| Seat Post | Brev. M alloy micro adjust 27.2mm |
| Seat Clamp | 31.8mm alloy clamp w/ bolt |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 71° | 74° | 545mm (21.5") | 380mm (15") | 440mm (17.3") | 70mm (2.8") | 1030mm (40.6") | 747mm (29.4") | 548mm (21.6") | 387mm (15.2") | 41mm (1.6") | ||||
| S | 71° | 74° | 560mm (22") | 430mm (16.9") | 440mm (17.3") | 70mm (2.8") | 1046mm (41.2") | 778mm (30.6") | 563mm (22.2") | 399mm (15.7") | 41mm (1.6") | ||||
| M | 72° | 73.5° | 570mm (22.4") | 485mm (19.1") | 440mm (17.3") | 70mm (2.8") | 1042mm (41") | 816mm (32.1") | 585mm (23") | 397mm (15.6") | 41mm (1.6") | ||||
| L | 72° | 73.5° | 585mm (23") | 535mm (21.1") | 440mm (17.3") | 70mm (2.8") | 1058mm (41.7") | 859mm (33.8") | 623mm (24.5") | 400mm (15.7") | 41mm (1.6") | ||||
| XL | 72° | 73.5° | 595mm (23.4") | 575mm (22.6") | 440mm (17.3") | 70mm (2.8") | 1068mm (42") | 890mm (35") | 647mm (25.5") | 403mm (15.9") | 41mm (1.6") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
