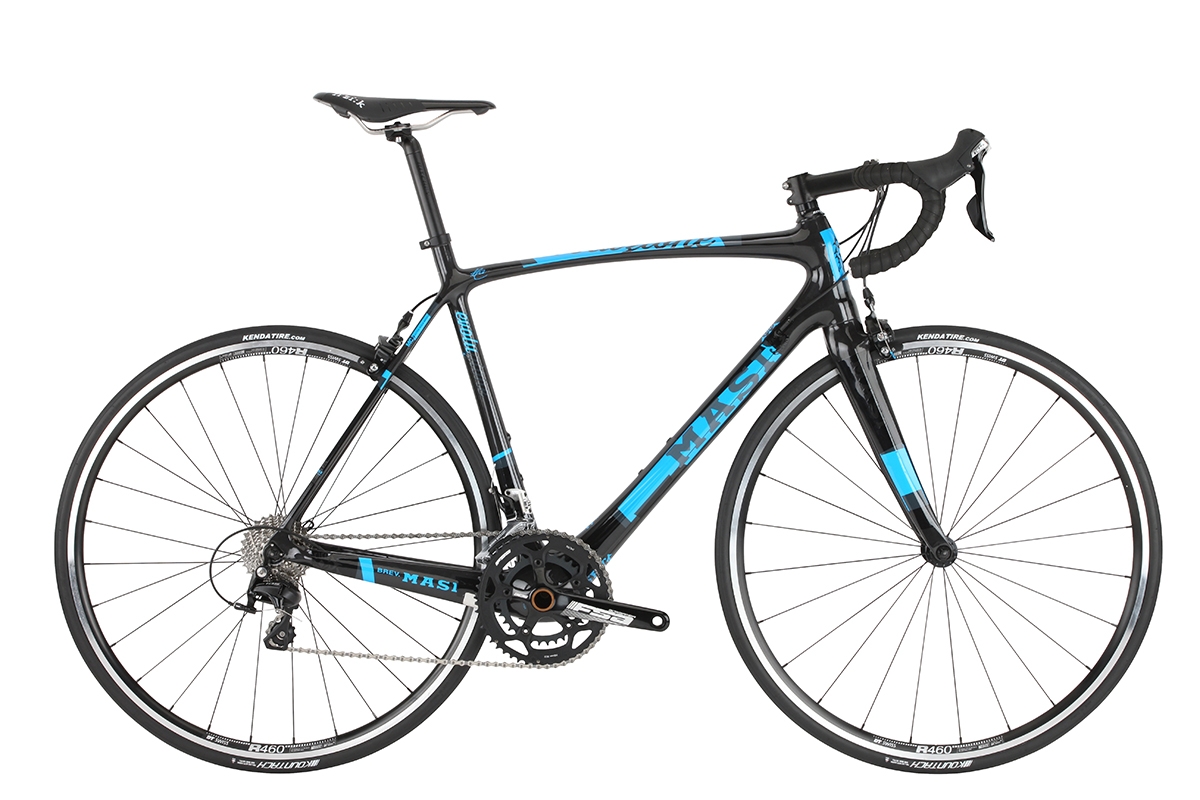

Our entry-level composite performance model punches way above its weight. Whether you race crits or ride distance, the Masi Evo 105 puts credibility into your most ambitious goals. A custom Ritchey cockpit controls a super stiff and responsive tapered fork and head tube combination, to provide an optimal balance of front-end damping and precision handling. The new and improved Masi Race-Tuned MC9 Carbon frame, features Di2 compatible internal cable routing and carbon dropouts to produce a stellar combination of performance capability, and winning technology, at an affordable price.
FEATURES
- All-New Race Tuned Carbon MC9 Carbon frame, BB86, full internal cable routing, Di2 compatible, tapered headtube, carbon dropouts
- Masi RTC MC9 tapered full carbon fork
- Ritchey Comp Logic 1.5" tapered headset
- Shimano 105 direct-mount brakes
- FSA Gossamer 52/36t cranksetw/ BB86 press-fit BB
- Shimano 105 11 speed shifters, front & rear derailleurs
- Shimano 105 11-28t cassette
- Custom KMC X11 chain
- Custom Ritchey EvoCurve Comp oversized bar and 4-Axis stem
- DT Swiss R460 rims
- Fizik Antares R7 saddle
- Custom Ritchey 2-Bolt alloy seatpost
- Clement Strada LGG 25mm tires
| Frame Components | |
|---|---|
| Frame | Masi RaceTuned Carbon MC9 carbon, Di2 compatible, BB86, internal routing, tapered headtube |
| Fork | Masi Race Tuned Carbon MC9 monocoque carbon |
| Headset | Ritchey Logic Comp tapered |
| Drivetrain | |
| Cranks | FSA Gossamer 52/36t |
| Bottom Bracket | FSA BB86 press-fit |
| Chain | Custom KMC X11 |
| Front Derailleur | Shimano 105 5800 |
| Rear Deralleur | Shimano 105 5800 |
| Derailleur Shifter | Shimano 105 5800 |
| Pedals | N/A |
| Wheels | |
| Tires | Clement Strada LGG 700 x 25c |
| Wheels/Rims | DT Swiss R460 rims, Alloy 24/28h cassette hubs w/ alloy QR |
| Freewheel/Cassette | Shimano 105 5800 11-28t |
| Braking System | |
| Brakes | Shimano 5800 Direct Mount |
| Brake Levers | Shimano 105 5800 |
| Other Components | |
| Grips | Masi embossed tape |
| Handle Bar | Custom Ritchey EvoCurve Comp |
| Stem | Custom Ritchey 4-Axis |
| Seat | Fizik Antares R7 |
| Seat Post | Custom Ritchey 2-Bolt |
| Seat Clamp | Alloy, 31.8mm |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 72° | 74° | 520mm (20.5") | 470mm (18.5") | 405mm (15.9") | 68mm (2.7") | 964mm (38") | 724mm (28.5") | 502mm (19.8") | 376mm (14.8") | 45mm (1.8") | ||||
| 51 | 72.5° | 74° | 530mm (20.9") | 510mm (20.1") | 405mm (15.9") | 68mm (2.7") | 970mm (38.2") | 754mm (29.7") | 523mm (20.6") | 380mm (15") | 45mm (1.8") | ||||
| 54 | 73° | 74° | 545mm (21.5") | 540mm (21.3") | 405mm (15.9") | 68mm (2.7") | 981mm (38.6") | 778mm (30.6") | 543mm (21.4") | 389mm (15.3") | 45mm (1.8") | ||||
| 56 | 73.5° | 73.5° | 565mm (22.2") | 560mm (22") | 405mm (15.9") | 68mm (2.7") | 989mm (38.9") | 800mm (31.5") | 565mm (22.2") | 398mm (15.7") | 43mm (1.7") | ||||
| 58 | 73° | 73.5° | 585mm (23") | 580mm (22.8") | 405mm (15.9") | 68mm (2.7") | 1014mm (39.9") | 820mm (32.3") | 582mm (22.9") | 413mm (16.3") | 43mm (1.7") | ||||
| 61 | 73° | 73.5° | 600mm (23.6") | 610mm (24") | 405mm (15.9") | 68mm (2.7") | 1029mm (40.5") | 842mm (33.1") | 601mm (23.7") | 422mm (16.6") | 43mm (1.7") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
