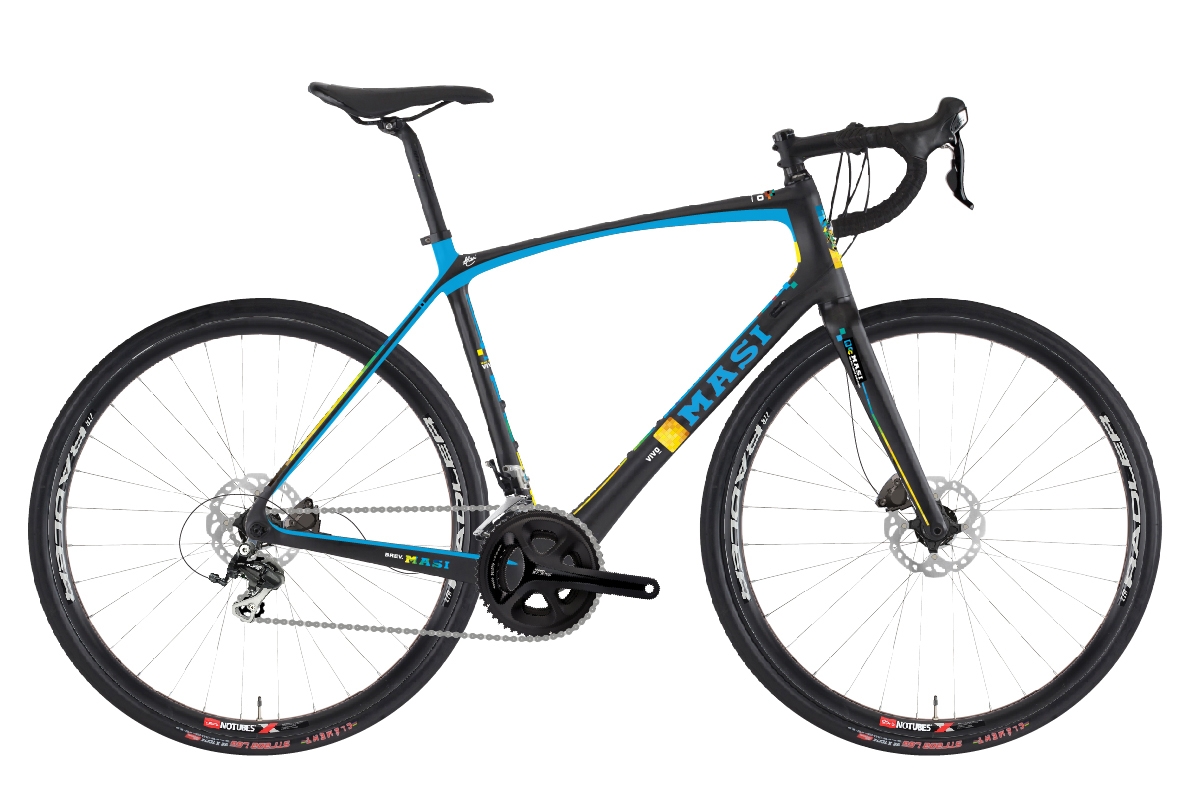

The Vivo Tre represents the cream of our "All Road" offering. Less aggressive geometry suits the endurance rider and makes this model ideal for those long challenge rides and Gran Fondos. Equipped with RS505 hydraulic disc brakes and a Shimano 105 group set, the Vivo Tre Utilizes our MC9 Comfort Tuned Carbon fiber frame and tapered fork to assure you have a great day in the saddle and look forward to the next one.
FEATURES
- All-New Comfort Tuned Carbon MC9 frame, BB86, full internal cable routing, tapered headtube, 12mm thru-axle
- Masi CTC MC9 tapered full carbon fork with 12mm thru-axle
- Shimano flat-mount disc brake mounts
- Shimano 105 50/34t crankset w/ BB86 press-fit BB
- Shimano RS505 11 speed shifters
- Shimano 105 front and rear derailleurs
- Wide-ratio 105 11-32t cassette
- Custom Ritchey EvoCurve Comp oversized bar and 4-Axis stem
- Stans NoTubes Radler disc-specific rims
- Custom Ritchey 2-Bolt alloy seatpost
- Clement Strada LGG 28mm tires
- Shimano RS505 hydraulic disc brake for flat mount, 140mm F&R rotors
| Frame Components | |
|---|---|
| Frame | Masi Comfort Tuned Carbon MC9 Carbon frame, BB86, full internal cable routing, tapered headtube, 12mm thru-axle |
| Fork | Masi CTC MC9 tapered full carbon fork with 12mm thru-axle |
| Headset | Ritchey Logic Comp tapered |
| Drivetrain | |
| Cranks | Shimano 105 50/34t |
| Bottom Bracket | Shimano BB86 press-fit |
| Chain | Custom KMC X11 |
| Front Derailleur | Shimano 105 5800 |
| Rear Deralleur | Shimano 105 5800 |
| Derailleur Shifter | Shimano 105 5800 |
| Pedals | N/A |
| Wheels | |
| Tires | Clement Strada LGG 700 x 28c |
| Wheels/Rims | Stans NoTubes Radler 28h rims, 12mm Thru-Axle disc hubs |
| Freewheel/Cassette | Shimano 105 5800 11-32t |
| Braking System | |
| Brakes | Shimano BR-S505 hydraulic disc brake, 140mm rotors |
| Brake Levers | Shimano BR-S505 hydraulic |
| Other Components | |
| Grips | Masi embossed tape |
| Handle Bar | Custom Ritchey EvoCurve Comp |
| Stem | Custom Ritchey 4-Axis |
| Seat | Masi SLS |
| Seat Post | Custom Ritchey 2-Bolt |
| Seat Clamp | Alloy, 31.8mm |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 71° | 74° | 515mm (20.3") | 43mm (1.7") | 425mm (16.7") | 73mm (2.9") | 992mm (39.1") | 729mm (28.7") | 530mm (20.9") | 363mm (14.3") | 50mm (2") | ||||
| S | 72° | 74° | 530mm (20.9") | 46.5mm (1.8") | 425mm (16.7") | 73mm (2.9") | 993mm (39.1") | 758mm (29.8") | 554mm (21.8") | 371mm (14.6") | 45mm (1.8") | ||||
| M | 72.5° | 73° | 545mm (21.5") | 50mm (2") | 425mm (16.7") | 70mm (2.8") | 995mm (39.2") | 788mm (31") | 572mm (22.5") | 370mm (14.6") | 45mm (1.8") | ||||
| M/L | 72.5° | 73° | 560mm (22") | 53.5mm (2.1") | 425mm (16.7") | 68mm (2.7") | 1006mm (39.6") | 815mm (32.1") | 591mm (23.3") | 379mm (14.9") | 40mm (1.6") | ||||
| L | 72.5° | 72° | 580mm (22.8") | 55.5mm (2.2") | 425mm (16.7") | 68mm (2.7") | 1014mm (39.9") | 830mm (32.7") | 610mm (24") | 382mm (15") | 40mm (1.6") | ||||
| XL | 72.5° | 72° | 600mm (23.6") | 58.5mm (2.3") | 425mm (16.7") | 65mm (2.6") | 1035mm (40.7") | 853mm (33.6") | 626mm (24.6") | 397mm (15.6") | 40mm (1.6") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
