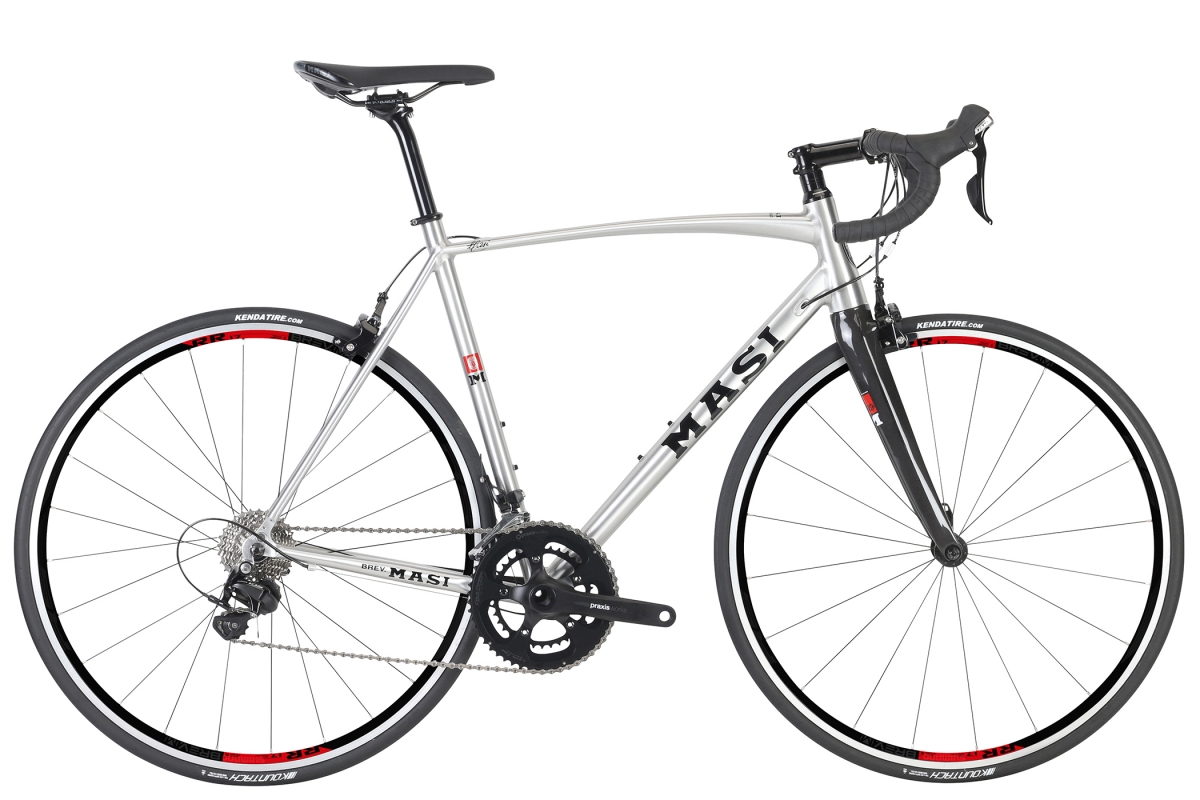

The Gran Corsa has evolved to become a dedicated racer with serious intent. Designed a built using our Race Tuned performance geometry, this balanced and highly compliant aluminum racing bicycle translates your valuable efforts into measurable performance. The full carbon fork integrates Shimano's 105 direct mount brake calipers, creating increased clearance for a variety of sizes Praxis Alba cranks combined with Praxis Works M30 sealed bearing bottom bracket produce efficient and reliable drive, while the lightweight BREV.M aluminum stem and seat post combine to provide ride comfort and precise control.
FEATURES
- Race Tuned Alloy MA7 Disc alloy frame, featuring Masi's race-proven Evoluzione geometry, tapered 1.5" head tube, BB86 press-fit BB, direct mount brakes
- Race Tuned Carbon MC8 tapered full carbon fork, direct mount brakes
- Shimano 105 R7000 shifters & derailleurs
- Tektro R741 direct mount brakes for improved stopping power
- Brev. M 3D forged cockpit
- Praxis Works Alba M30 52/36t crankset w/Enduro M30 BB
- Direct mount brakes enable clearance for up to 28mm tires
- Brev. M RR tubeless-compatible wheelset RR17 Race rims with 17mm internal width
- Kenda Kountach 25mm tires
| Frame Components | |
|---|---|
| Frame | New Superlight Alloy Race Geometry Race Tuned Alloy, Direct Mount Brakes |
| Fork | Masi Race Tuned Carbon MC8 Tapered Full Carbon Fork, Direct Mount Brakes |
| Headset | Masi by Token 1.5" Tapered |
| Drivetrain | |
| Cranks | Praxis Works Alba M30 52/36t |
| Bottom Bracket | Praxis Works M30 by Enduro |
| Chain | KMC X11 |
| Front Derailleur | New Shimano 105 R7000 |
| Rear Deralleur | New Shimano 105 R7000 |
| Derailleur Shifter | New Shimano 105 R7000 |
| Pedals | N/A |
| Wheels | |
| Tires | Kenda Kountach 25mm |
| Wheels/Rims | Brev M. Tubeless Compatible, 21mm Int. |
| Hubs | Brev M. Alloy Sealed Bearing 24/28h |
| Freewheel/Cassette | New Shimano 105 R7000 11-30t 11-spd |
| Braking System | |
| Brakes | Tektro R741 Direct-Mount |
| Brake Levers | New Shimano 105 R7000 |
| Other Components | |
| Grips | Masi Gripper Silicon Gel |
| Handle Bar | Brev. M Compact Bend Alloy |
| Stem | Brev. M 3D Forged Alloy |
| Seat | Masi Corsa Comp |
| Seat Post | Brev. M 3D Forged Alloy, 27.2mm |
| Seat Clamp | Alloy 31.8mm |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 72° | 74° | 520mm (20.5") | 470mm (18.5") | 405mm (15.9") | 68mm (2.7") | 964mm (38") | 712mm (28") | 502mm (19.8") | 376mm (14.8") | 45mm (1.8") | 90mm | 400mm | 170mm | |
| 51 | 72.5° | 74° | 530mm (20.9") | 510mm (20.1") | 405mm (15.9") | 68mm (2.7") | 970mm (38.2") | 714mm (28.1") | 523mm (20.6") | 380mm (15") | 45mm (1.8") | 90mm | 400mm | 170mm | |
| 54 | 73° | 74° | 545mm (21.5") | 540mm (21.3") | 405mm (15.9") | 68mm (2.7") | 981mm (38.6") | 764mm (30.1") | 543mm (21.4") | 389mm (15.3") | 45mm (1.8") | 100mm | 420mm | 172.5mm | |
| 56 | 73.5° | 73.5° | 565mm (22.2") | 560mm (22") | 405mm (15.9") | 68mm (2.7") | 989mm (38.9") | 797mm (31.4") | 565mm (22.2") | 398mm (15.7") | 43mm (1.7") | 110mm | 420mm | 172.5mm | |
| 58 | 73° | 73.5° | 585mm (23") | 580mm (22.8") | 405mm (15.9") | 68mm (2.7") | 1014mm (39.9") | 817mm (32.2") | 582mm (22.9") | 413mm (16.3") | 43mm (1.7") | 110mm | 440mm | 175mm | |
| 61 | 73° | 73.5° | 600mm (23.6") | 610mm (24") | 405mm (15.9") | 68mm (2.7") | 1029mm (40.5") | 842mm (33.1") | 601mm (23.7") | 422mm (16.6") | 43mm (1.7") | 120mm | 440mm | 175mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
