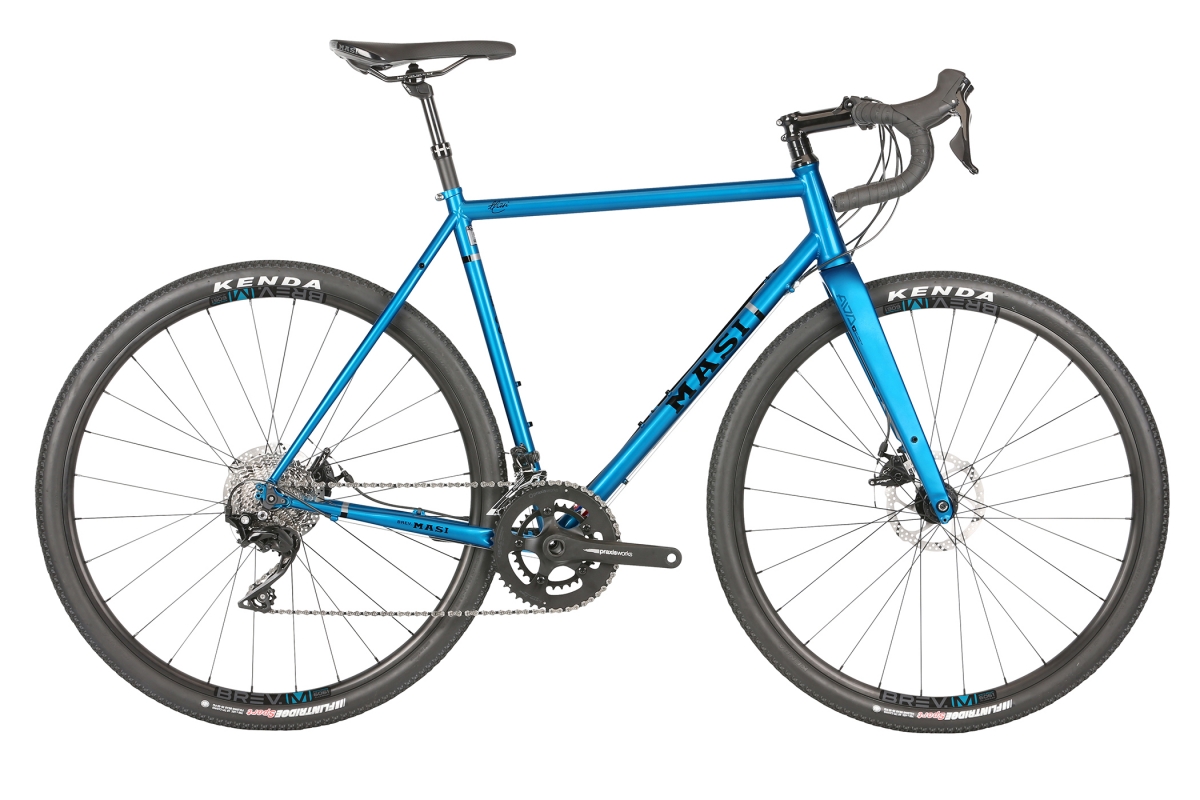

CXGR Supremo
- Year: 2019
- MSRP: $1,949.99 *
- Sizes: 49cm, 51cm, 53cm, 56cm, 58cm, 60cm
- Colors: Bali Blue
- Weight:
- NO LONGER AVAILABLE
Further evolving from its debut in 2016, the Masi CXGR Supremo brings a wealth of modern technology to the dedicated all road rider. A combination of flat mount TRP Spyre dual piston mechanical disc brakes and 12mm thru-axles delivers confidence and control in the most demanding moments. When the trail gets loose the all new KS E-Ten I dropper allows you to lower the seat height on the fly enabling you to drop in on some tasty single track. A Shimano 105 group set mated with the Praxis Works Alba M30 48/32t crank gets you back to the top of the mountain with ease.
FEATURES
- Columbus CROMOR Double Butted Chromoly tig welded tubing, F/R 12mm thru-axle, tapered headtube, Semi-Internal Dropper Post Routing, flat-mount disc brake & rack and fender mounts
- Dirt Tuned MC7 Full Carbon fork w/1.5" steerer, 12mm thru-axle, flat-mount disc brake, w/ fender mounts
- Shimano R7000 105 11spd components.
- TRP Spyre-C Flat Mount Dual Pistion Mechanical Disc, 160mm Rotor F/R
- Brev. M Compact Adventure Bend Bars
- Praxis Works Alba M30 crank for class-leading shifting
- Tubeless-ready Brev. M CXR Disc rims with 23mm internal width
Frame Components | |
---|---|
Frame | Tig Welded Double Butted Columbus CRMOR Chromoly Tubing, Flatmount Disc Mount, 1 1/8"-1.5" Tapered H/T, 12mm F/R Thru-Axle |
Fork | Dirt-Tuned MC7 Carbon w/Carbon Tapered 1 1/8"-1.5" Steerer, Flatmount Disc, 12mm Thru-Axle, Rack & Fender Mounts |
Headset | Token 1 1/8"-1.5" Sealed Bearing |
Drivetrain | |
Cranks | Praxis Works Alba M30 48/32t |
Bottom Bracket | Praxis Works M30 by Enduro, English 68mm |
Chain | KMC X11 |
Front Derailleur | Shimano 105 R7000 |
Rear Deralleur | Shimano 105 R7000 |
Derailleur Shifter | Shimano 105 R7000 |
Pedals | N/A |
Wheels | |
Tires | Kenda Flintridge 700x40mm, 60tpi Folding Bead |
Wheels/Rims | Brev M. 23mm internal Tubeless Ready, Double Wall, 28h. |
Hubs | Alloy Disc Sealed Bearing, 12mm Thru-Axle, 28h |
Freewheel/Cassette | Shimano HG-700 11-34T 11-spd |
Braking System | |
Brakes | TRP Spyre-C Flat Mount Dual Pistion Mechanical Disc, 160mm Rotor F/R |
Brake Levers | Shimano 105 R7000 |
Other Components | |
Grips | Masi Gripper Silicon Gel |
Handle Bar | Brev. M Compact Adventure Bend Alloy, 12 Degree Flair, 31.8mm |
Stem | Brev. M 3D Forged Alloy, 31.8mm |
Seat | Masi Corsa Comp |
Seat Post | KS E-TEN 272 Remote, 27.2mm 65mm travel |
Seat Clamp | Integrated Braze-On |
Extras | Rack & Fender Mounts, DT Bottle Mount |
Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
49 | 71.5° | 74.5° | 520mm (20.5") | 490mm (19.3") | 432mm (17") | 70mm (2.8") | 1003mm (39.5") | 760mm (29.9") | 515mm (20.3") | 373mm (14.7") | 50mm (2") | 80mm | 400mm | 170mm | |
51 | 71.5° | 74° | 530mm (20.9") | 510mm (20.1") | 432mm (17") | 70mm (2.8") | 1004mm (39.5") | 777mm (30.6") | 531mm (20.9") | 375mm (14.8") | 50mm (2") | 90mm | 420mm | 170mm | |
53 | 72° | 73.5° | 535mm (21.1") | 535mm (21.1") | 432mm (17") | 70mm (2.8") | 1006mm (39.6") | 797mm (31.4") | 547mm (21.5") | 376mm (14.8") | 50mm (2") | 100mm | 420mm | 172.5mm | |
56 | 72° | 73° | 555mm (21.9") | 560mm (22") | 432mm (17") | 70mm (2.8") | 1022mm (40.2") | 823mm (32.4") | 575mm (22.6") | 378mm (14.9") | 50mm (2") | 110mm | 440mm | 175mm | |
58 | 72° | 73° | 575mm (22.6") | 580mm (22.8") | 432mm (17") | 68mm (2.7") | 1042mm (41") | 840mm (33.1") | 590mm (23.2") | 393mm (15.5") | 50mm (2") | 110mm | 440mm | 175mm | |
60 | 72° | 72.5° | 590mm (23.2") | 600mm (23.6") | 432mm (17") | 68mm (2.7") | 1052mm (41.4") | 861mm (33.9") | 618mm (24.3") | 395mm (15.6") | 50mm (2") | 120mm | 440mm | 175mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
