Caffe Corsa
- Year: 2019
- MSRP: $1,199.99 *
- Sizes: XS, S, M, M/L, L, XL
- Colors: Brushed Alloy
- Weight:
- NO LONGER AVAILABLE

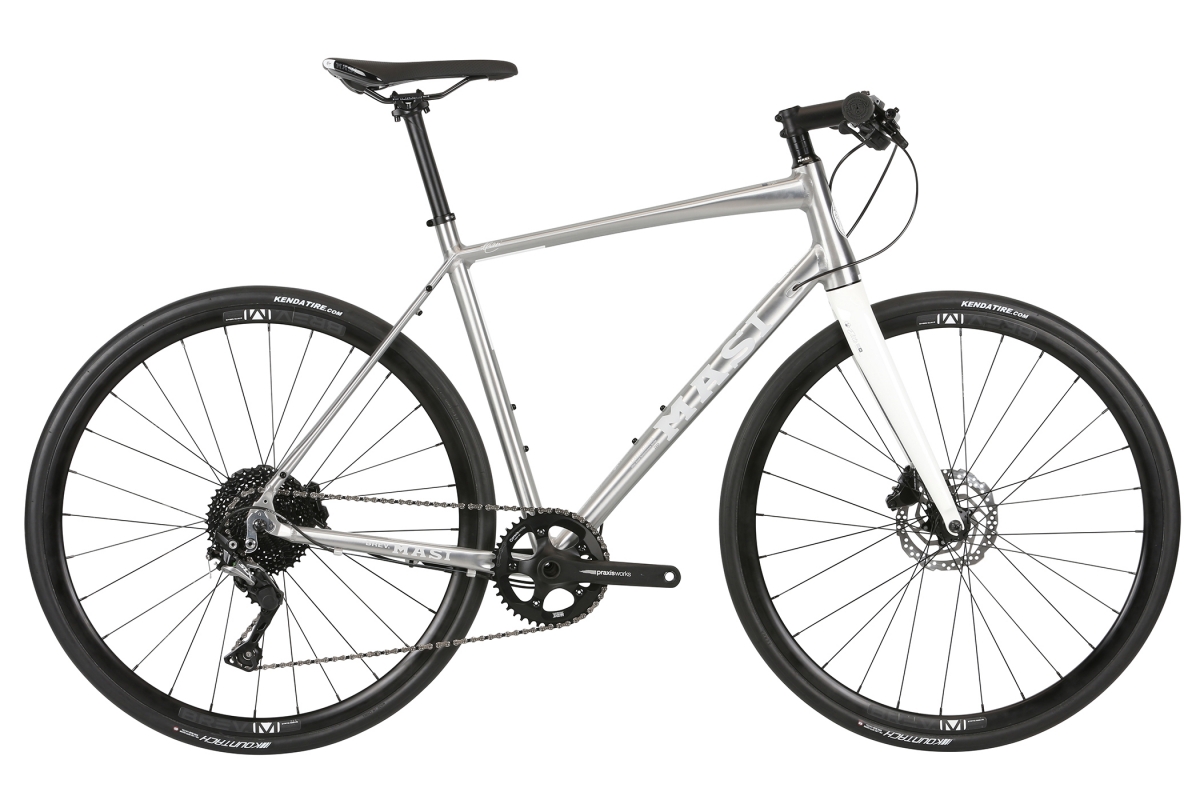

Drawing its geometry and DNA from our fast and lightweight performance range, the Masi Caffe Corsa is optimized for speed, comfort, and versatility earning it Bicycling Magazine's Editors Choice Award. Equipped with SRAM's NX 1x11 drive train, flat mount hydraulic disc brakes and a flat top low rise handlebar, this fast paced urban racer combines the stellar handling, responsive gearing, and intelligent specification that the fast urban rider demands.
FEATURES
- Comfort Tuned X6 Disc aluminum frame, featuring Masi's proven Endurance geometry, tapered 1.5" head tube & flat mount disc mounts
- Masi Elite/RS carbon w/tapered 7075 alloy steerer & flat mount disc mounts
- Shimano SLX 1x11 Rapidfire Plus shifter & derailleur
- Shimano BT-201 Flat Mount Hydraulic Disc brakes
- Brev. M 3D forged cockpit with FlatTop riser bar
- Kenda Kriterium 30mm tires
- Praxis Alba M24 cranks with 42t WaveTech chainring
- New Brev. M tubeless-compatible Race Disc rims, 21mm internal
- Clearance for up to a 32mm tire
- Simple Shimano SLX 1x drivetrain with a wide-range 11-40t cassette
- Shimano BT-201 Flat Mount Hydraulic Disc brakes
- Lightwight flat-top riser handlebar for more comfortable, upright positioning
Frame Components | |
---|---|
Frame | X6 Disc Double-Butted Alloy w/Tapered 1.5" headtube, Flat Mount Disc Brake |
Fork | Masi Elite/RS Disc, Carbon w/Tapered 7075 Alloy Steerer, Flat Mount Disc Brake |
Headset | FSA No. 42 1.5" tapered |
Drivetrain | |
Cranks | Praxis Works Alba M24 42t |
Bottom Bracket | Praxis Works M24 |
Chain | KMC X11-1 |
Front Derailleur | N/A |
Rear Deralleur | Shimano SLX M7000 |
Derailleur Shifter | Shimano SLX Rapidfire Plus |
Pedals | Wellgo Urban |
Wheels | |
Tires | Kenda Kriterium 700x30mm |
Wheels/Rims | Brev M. Tubeless Compatible, 21mm Int. |
Hubs | Alloy Disc, QR, 24/28h |
Freewheel/Cassette | Sunrace CSM8 11-40t 11-spd |
Braking System | |
Brakes | Shimano BT-201 Hydraulic Disc |
Brake Levers | Shimano BT-201 Hydraulic Disc |
Other Components | |
Grips | Brev. M Kraton |
Handle Bar | Brev. M Flattop Alloy |
Stem | Brev. M 3D Forged Alloy |
Seat | Masi Corsa Comp |
Seat Post | Brev. M 3D Forged Alloy, 27.2mm |
Seat Clamp | Alloy 31.8mm |
Extras | Rack & Fender Mounts |
Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
XS | 71° | 74° | 515mm (20.3") | 430mm (16.9") | 425mm (16.7") | 73mm (2.9") | 992mm (39.1") | 729mm (28.7") | 530mm (20.9") | 363mm (14.3") | 50mm (2") | 90mm | 400mm | 165mm | |
S | 72° | 74° | 530mm (20.9") | 465mm (18.3") | 425mm (16.7") | 73mm (2.9") | 993mm (39.1") | 758mm (29.8") | 554mm (21.8") | 371mm (14.6") | 45mm (1.8") | 90mm | 400mm | 170mm | |
M | 72.5° | 73° | 545mm (21.5") | 500mm (19.7") | 425mm (16.7") | 70mm (2.8") | 995mm (39.2") | 788mm (31") | 572mm (22.5") | 370mm (14.6") | 45mm (1.8") | 100mm | 420mm | 170mm | |
M/L | 72.5° | 73° | 560mm (22") | 535mm (21.1") | 425mm (16.7") | 68mm (2.7") | 1006mm (39.6") | 815mm (32.1") | 591mm (23.3") | 379mm (14.9") | 40mm (1.6") | 100mm | 420mm | 172.5mm | |
L | 72.5° | 72° | 580mm (22.8") | 555mm (21.9") | 425mm (16.7") | 68mm (2.7") | 1014mm (39.9") | 830mm (32.7") | 610mm (24") | 382mm (15") | 40mm (1.6") | 110mm | 440mm | 172.5mm | |
XL | 72.5° | 72° | 600mm (23.6") | 585mm (23") | 425mm (16.7") | 65mm (2.6") | 1035mm (40.7") | 853mm (33.6") | 626mm (24.6") | 397mm (15.6") | 40mm (1.6") | 110mm | 440mm | 175mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
