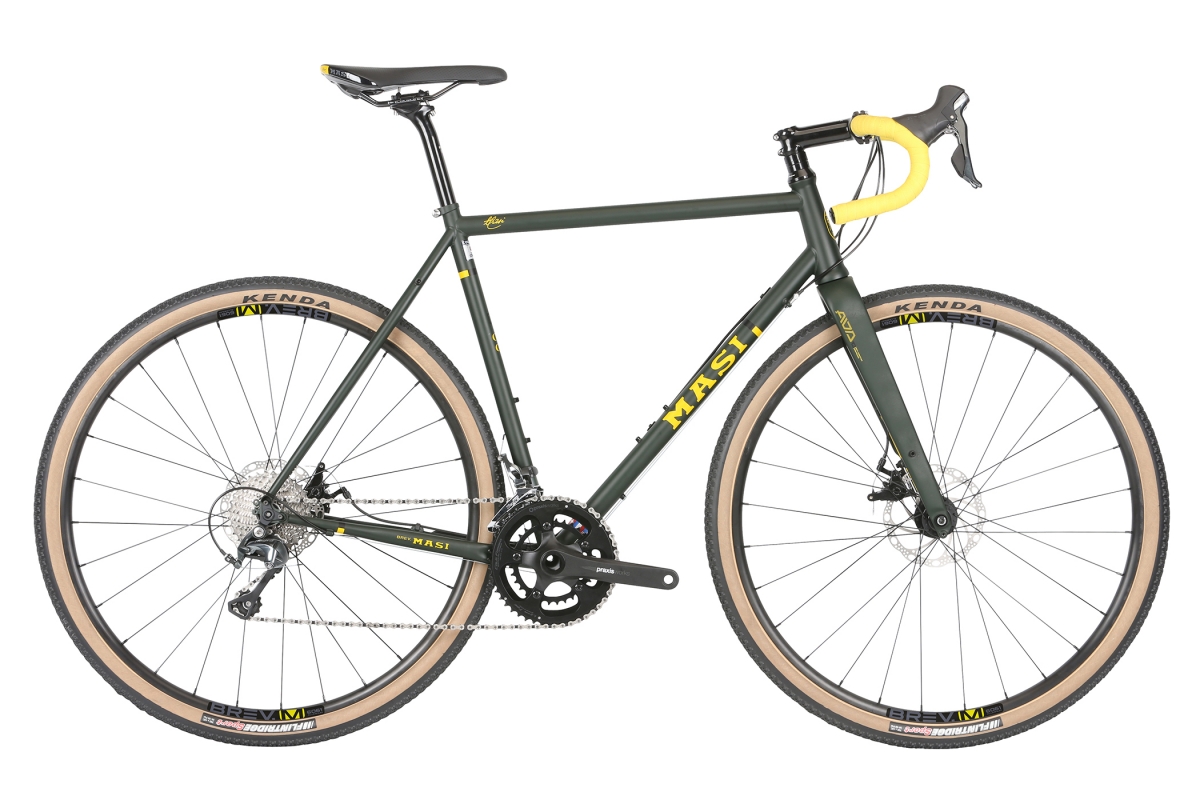

The CXGR Expert emerges lighter, braver, and more advanced than ever before. The refreshed frame features 12mm thru-axle dropouts, dropper post routing, flat mount disc brakes combined with an all new full carbon tapered fork and a 3D forged cockpit provides stability and confidence on those sketchy loose descents. Shimano's 10 speed Tiagra group paired with a Praxis Alba M24 crankset delivers high and low cadence options for those decisive moments and positions the CXGR Expert as Masi's hard hitting and best selling gravel packages.
FEATURES
- Columbus CROMOR double butted chromoly tig welded tubing, F/R 12mm thru-axle, tapered headtube, Semi-Internal Dropper Post Routing, flat-mount disc brake & rack and fender mounts
- Dirt Tuned MC7 Full Carbon fork w/1.5" steerer, 12mm thru-axle, flat-mount disc brake, w/ fender mounts
- Praxis Works Alba M24 crank for class-leading shifting
- Tektro C550 Flat Mount Dual Pistion Mechanical Disc, 160mm Rotor F/R
- Brev. M Compact Adventure Bend Bars
- Tubeless-ready Brev. M CXR Disc rims with 23mm internal width
- Kenda Flintridge 700x40c Tires
| Frame Components | |
|---|---|
| Frame | Tig Welded Double Butted Columbus CRMOR Chromoly Tubing, Flatmount Disc Mount, 1 1/8"-1.5" Tapered H/T, 12mm F/R Thru-Axle |
| Fork | Dirt-Tuned MC7 Carbon w/Carbon Tapered 1 1/8"-1.5" Steerer, Flatmount Disc, 12mm Thru-Axle, Rack & Fender Mounts |
| Headset | Token 1 1/8"-1.5" Sealed Bearing |
| Drivetrain | |
| Cranks | Praxis Works Alba M24 48/32t |
| Bottom Bracket | Praxis Works M24, English 68mm |
| Chain | KMC X10 |
| Front Derailleur | Shimano Tiagra R4700 |
| Rear Deralleur | Shimano Tiagra R4700 |
| Derailleur Shifter | Shimano Tiagra R4700 |
| Pedals | N/A |
| Wheels | |
| Tires | Kenda Flintridge 700x40mm, 30tpi |
| Wheels/Rims | Brev M. 23mm internal Tubeless Ready, Double Wall, 28h. |
| Hubs | Alloy Disc Sealed Bearing, 12mm Thru-Axle, 28h |
| Freewheel/Cassette | Shimano HG-500 11-32T 10-spd |
| Braking System | |
| Brakes | Tektro C550 Flat Mount Dual Pistion Mechanical Disc, 160mm Rotor F/R |
| Brake Levers | Shimano Tiagra R4700 |
| Other Components | |
| Grips | Masi Gripper Silicon Gel |
| Handle Bar | Brev. M Compact Adventure Bend Alloy, 12 Degree Flair, 31.8mm |
| Stem | Brev. M 3D Forged Alloy, 31.8mm |
| Seat | Masi Corsa Comp |
| Seat Post | Brev. M 3D Forged Alloy, 27.2mm |
| Seat Clamp | Integrated Braze-On |
| Extras | Rack & Fender Mounts, DT Bottle Mount |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 71.5° | 74.5° | 520mm (20.5") | 490mm (19.3") | 432mm (17") | 70mm (2.8") | 1003mm (39.5") | 760mm (29.9") | 515mm (20.3") | 373mm (14.7") | 50mm (2") | 80mm | 400mm | 170mm | |
| 51 | 71.5° | 74° | 530mm (20.9") | 510mm (20.1") | 432mm (17") | 70mm (2.8") | 1004mm (39.5") | 777mm (30.6") | 531mm (20.9") | 375mm (14.8") | 50mm (2") | 100mm | 420mm | 172.5mm | |
| 53 | 72° | 73.5° | 535mm (21.1") | 535mm (21.1") | 432mm (17") | 70mm (2.8") | 1006mm (39.6") | 797mm (31.4") | 547mm (21.5") | 376mm (14.8") | 50mm (2") | 100mm | 420mm | 172.5mm | |
| 56 | 72° | 73° | 555mm (21.9") | 560mm (22") | 432mm (17") | 70mm (2.8") | 1022mm (40.2") | 823mm (32.4") | 575mm (22.6") | 378mm (14.9") | 50mm (2") | 110mm | 440mm | 175mm | |
| 58 | 72° | 73° | 575mm (22.6") | 580mm (22.8") | 432mm (17") | 68mm (2.7") | 1042mm (41") | 840mm (33.1") | 590mm (23.2") | 393mm (15.5") | 50mm (2") | 110mm | 440mm | 175mm | |
| 60 | 72° | 72.5° | 590mm (23.2") | 600mm (23.6") | 432mm (17") | 68mm (2.7") | 1052mm (41.4") | 861mm (33.9") | 618mm (24.3") | 395mm (15.6") | 50mm (2") | 120mm | 440mm | 175mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
