Volare
- Year: 2018
- MSRP: $1,359.99 *
- Sizes: XS, S, M, M/L, L, XL
- Colors: Black / Abalone
- Weight:
- NO LONGER AVAILABLE

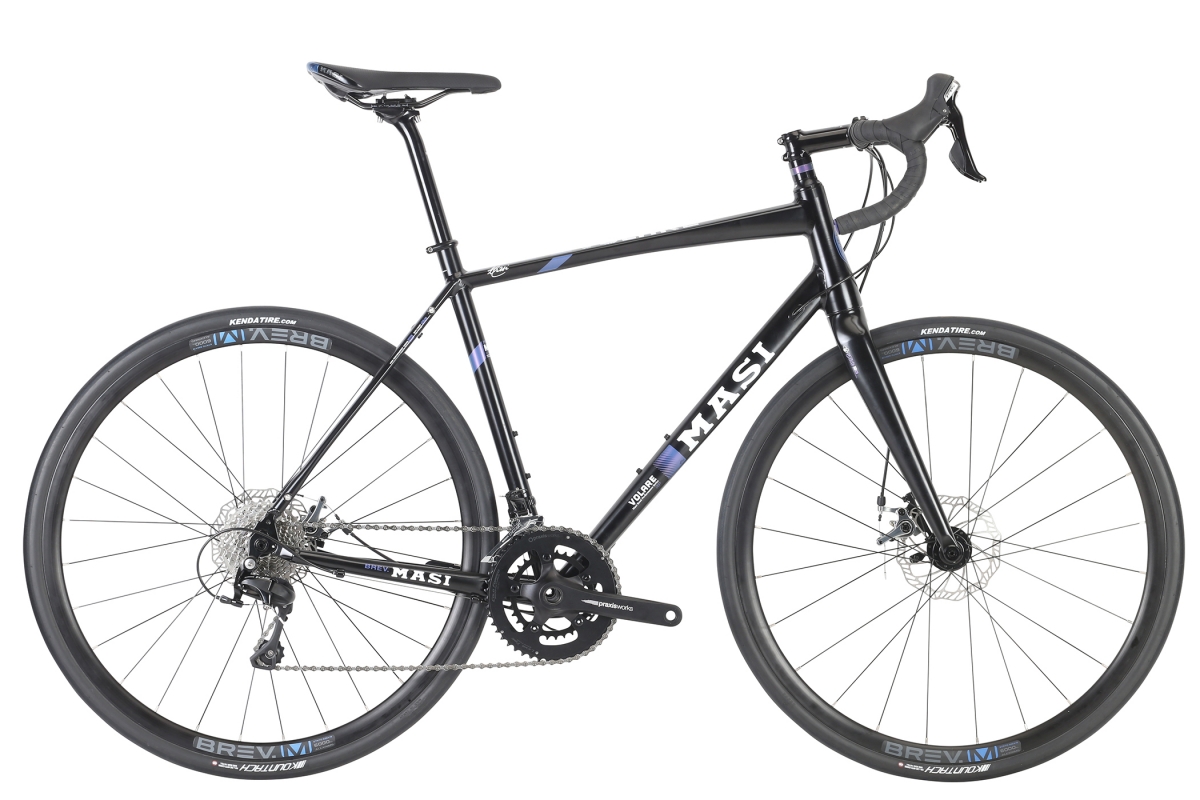

The Volare combines the performance attributes of our MA4 Race Tuned Aluminum frame, carbon bladed fork, and a popular component group to deliver unbeatable value at the mid-level price point. Utilizing Promax DeCode R dual piston float mount disc brakes that combine with BREV.M 28mm disc specific 12mm thru Axle wheels, The Volare holds its own and delivers stiff and responsive road handling regardless of conditions. The lightweight BREV.M aluminum cockpit, Praxis Works Alba M24 cranks, and Shimano 105 11 speed group complete a superb value performance package that delivers on every level.
FEATURES
- Comfort Tuned MA5 disc aluminum frame, featuring Masi's proven endurance geometry, tapered 1.5" head tube, 12mm thru axle, internal cable routing, BB86 & flat mount disc mounts
- Elite/RS Disc carbon fork w/tapered 7075 alloy steerer, 12mm thru axle & flat mount disc
- ProMax DeCode mechanical disc brakes for all-condition stopping power
- Shimano 105 11 speed shifters & derailleurs
- Brev. M 3D forged cockpit
- Praxis Works Alba M24 cranks with new 48/32t right-size gearing featuring a 1:1 low gear
- New Brev. M tubeless-compatible race Disc rims, 21mm internal
- Kenda Kriterium 28mm tires
- Clearance for up to a 32mm tire
Frame Components | |
---|---|
Frame | Masi MA5 Disc Double-Butted Alloy w/Tapered 1.5" headtube, BB86 Press Fit BB, Flat Mount Disc Brake, 12mm Thru Axle |
Fork | Masi Elite/RS Disc, Carbon w/Tapered 7075 Alloy Steerer, Flat Mount Disc Brake, 12mm Thru Axle |
Headset | FSA No.42; Orbit C-40 Sealed 1-1/8 ACB Top, 1.5" Industrial Sealed Bottom |
Drivetrain | |
Cranks | Praxis Works Alba SubCompact M24 48/32t |
Bottom Bracket | Praxis Works M24 |
Chain | KMC X11 |
Front Derailleur | Shimano 105 R5801 |
Rear Deralleur | Shimano 105 R5800 |
Derailleur Shifter | Shimano 105 R5800 |
Pedals | Nylon Test Ride |
Wheels | |
Tires | Kenda Kriterium 700x28mm |
Wheels/Rims | Brev M. Disc Tubeless Compatible, 21mm Internal |
Hubs | Alloy Disc, Thru-Axle, 24/28h |
Freewheel/Cassette | Shimano CS5800 11-32t 11-spd |
Braking System | |
Brakes | LeeChi DeCode R Flat Mount Dual Piston Mechanical Disc |
Brake Levers | Shimano 105 R5800 |
Other Components | |
Grips | Masi Gripper+ Gel |
Handle Bar | Brev. M Compact Bend Alloy |
Stem | Brev. M 3D Forged Alloy Flip Flop |
Seat | Masi Corsa Comp |
Seat Post | Brev. M 3D Forged Alloy, 27.2 x 300mm, 25mm offset |
Seat Clamp | Alloy 31.8mm |
Extras | Rack & Fender Mounts |
Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
XS | 71° | 74° | 515mm (20.3") | 430mm (16.9") | 425mm (16.7") | 73mm (2.9") | 992mm (39.1") | 729mm (28.7") | 530mm (20.9") | 363mm (14.3") | 50mm (2") | 90mm | 400mm | 165mm | |
S | 72° | 74° | 530mm (20.9") | 465mm (18.3") | 425mm (16.7") | 73mm (2.9") | 993mm (39.1") | 758mm (29.8") | 554mm (21.8") | 371mm (14.6") | 45mm (1.8") | 90mm | 400mm | 170mm | |
M | 72.5° | 73° | 545mm (21.5") | 500mm (19.7") | 425mm (16.7") | 70mm (2.8") | 995mm (39.2") | 788mm (31") | 572mm (22.5") | 370mm (14.6") | 45mm (1.8") | 100mm | 420mm | 170mm | |
M/L | 72.5° | 73° | 560mm (22") | 535mm (21.1") | 425mm (16.7") | 68mm (2.7") | 1006mm (39.6") | 815mm (32.1") | 591mm (23.3") | 379mm (14.9") | 40mm (1.6") | 100mm | 420mm | 172.5mm | |
L | 72.5° | 72° | 580mm (22.8") | 555mm (21.9") | 425mm (16.7") | 68mm (2.7") | 1014mm (39.9") | 830mm (32.7") | 610mm (24") | 382mm (15") | 40mm (1.6") | 110mm | 440mm | 172.5mm | |
XL | 72.5° | 72° | 600mm (23.6") | 585mm (23") | 425mm (16.7") | 65mm (2.6") | 1035mm (40.7") | 853mm (33.6") | 626mm (24.6") | 397mm (15.6") | 40mm (1.6") | 110mm | 440mm | 175mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
