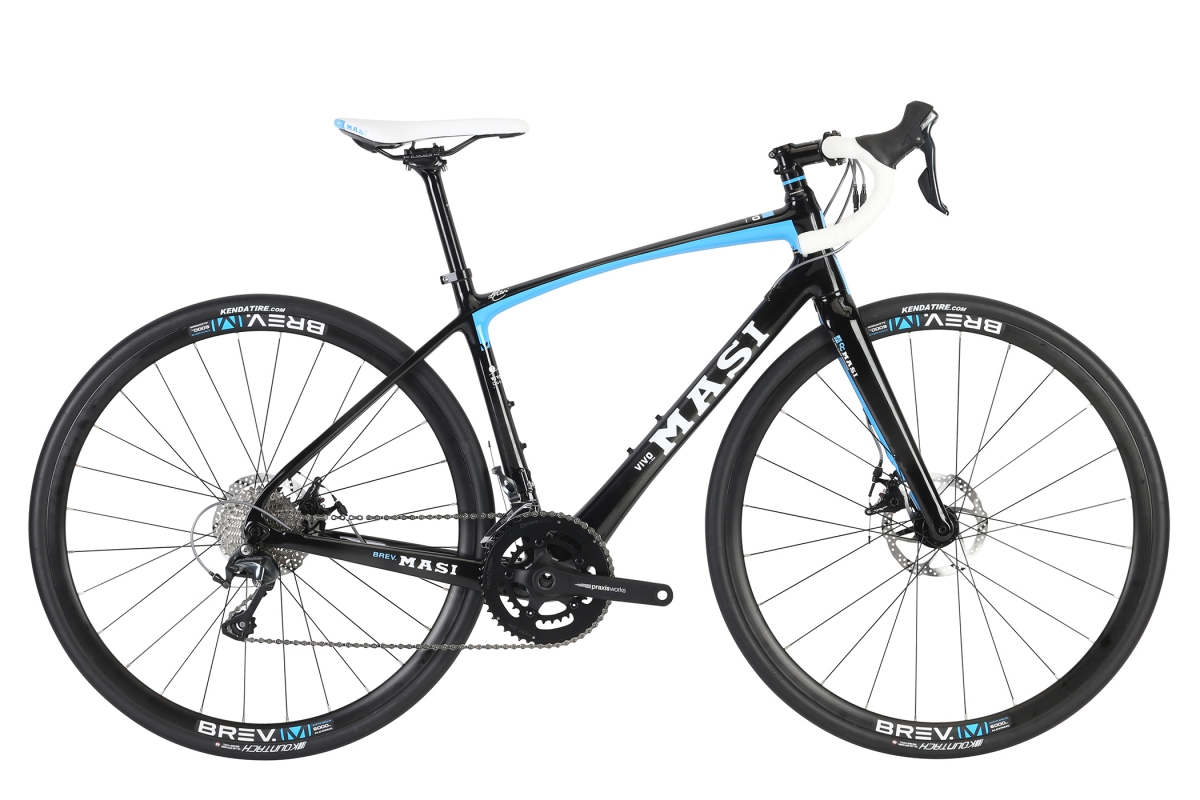

Vivo Due Bellissima

  • Year: 2018
  • MSRP: $2,229.99 *
  • Sizes: XS, S, M, M/L
  • Colors: UD / Sky Blue
  • Weight:
  • NO LONGER AVAILABLE

The 2018 Vivo Due Bellisima offers sizing options to the endurance rider that is more proportionately matched to their shorter upper body torso by utilizing a zero offset seat post combined with shorter stem and narrower bars. With the performance advantages of our MC9 comfort tuned carbon fiber frame and fork, the Due becomes the perfect partner for the longest road and the steepest climb. Flat mount mechanical disc brakes combine with our proprietary Brev. M lightweight 24mm wide rims to maximize ride quality creating a relaxed and compliant ride without sacrificing performance.

FEATURES

  • Comfort Tuned MC9 carbon frame, featuring Masi's proven Endurance geometry, fully convertible internal cable routing, 1.5" tapered head tube, BB86 press-fit BB, flat mount disc, 12mm thru-axle & removable fender mounts
  • Comfort Tuned MC9 tapered full carbon fork with 12mm thru axle, flat mount disc & removable fender mounts
  • Tektro Spyre-C flat mount dual piston mechanical disc brakes for all-condition stopping power
  • Brev. M 3D forged cockpit proportionately designed for shorter torso's with zero offset post, shorter stem, and narrower bars.
  • Praxis Works Alba M24 cranks with new 48/32t right-size gearing featuring a 1:1 low gear
  • New Brev. M tubeless-compatible race Disc rims, 21mm internal
  • Clearance for up to a 35mm tire
SPECIFICATIONS
Frame Components
Frame Masi Comfort Tuned-Carbon MC9 Carbon frame, fully convertible internal cable routing, BB86 press-fit BB, tapered headtube, flat mount disc, 12mm thru-axle & removeable fender mounts, Di2 Compatible
Fork Masi Comfort Tuned MC9 Carbon Tapered 1.5" Steerer, 12mm Thru-Axle, Flat Mount Disc Brake, w/ Removable Fender Mounts
Headset Masi by Token 1.5" Tapered, sealed bearing
Drivetrain
Cranks Praxis Works Alba SubCompact M24 48/32t
Bottom Bracket Praxis Works M24
Chain KMC X10
Front Derailleur Shimano Tiagra R4700
Rear Deralleur Shimano Tiagra R4700
Derailleur Shifter Shimano Tiagra R4700
Pedals N/A
Wheels
Tires Kenda Kriterium 700x28mm
Wheels/Rims Brev M. Disc Tubeless Compatible, 21mm Internal
Hubs Alloy Disc Sealed Bearing, Thru-Axle, 24/28h
Freewheel/Cassette Shimano HG500 11-32 10-spd
Braking System
Brakes Tektro Spyre-C Flat Mount Dual Piston Mechanical Disc
Brake Levers Shimano Tiagra R4700
Other Components
Grips Masi Gripper+ Gel
Handle Bar Brev. M Bellissima Compact Bend Alloy
Stem Brev. M 3D Forged Alloy Flip Flop
Seat Masi Corsa Comp
Seat Post Brev. M 3D Forged Alloy, 27.2 x 300mm, 0mm offset
Seat Clamp Alloy 31.8mm
Extras Removeable Fender Mounts
GEOMETRY
Size Head Angle Seat Angle Top Tube (Effective) Seat Tube (C-T) Chainstay Length BB Drop Wheel Base Stand Over Stack Height Reach Fork Height Fork Offset Stem Length Bar Width Crank Length
XS 71° 74° 515mm (20.3") 430mm (16.9") 425mm (16.7") 73mm (2.9") 992mm (39.1") 729mm (28.7") 530mm (20.9") 363mm (14.3") 50mm (2") 90mm 400mm 165mm
S 72° 74° 530mm (20.9") 460.5mm (18.1") 425mm (16.7") 73mm (2.9") 993mm (39.1") 758mm (29.8") 554mm (21.8") 371mm (14.6") 45mm (1.8") 90mm 400mm 170mm
M 72.5° 73° 545mm (21.5") 500mm (19.7") 425mm (16.7") 70mm (2.8") 995mm (39.2") 788mm (31") 572mm (22.5") 370mm (14.6") 45mm (1.8") 100mm 420mm 170mm
M/L 72.5° 73° 560mm (22") 530.5mm (20.9") 425mm (16.7") 68mm (2.7") 1006mm (39.6") 815mm (32.1") 591mm (23.3") 379mm (14.9") 40mm (1.6") 100mm 420mm 172.5mm
