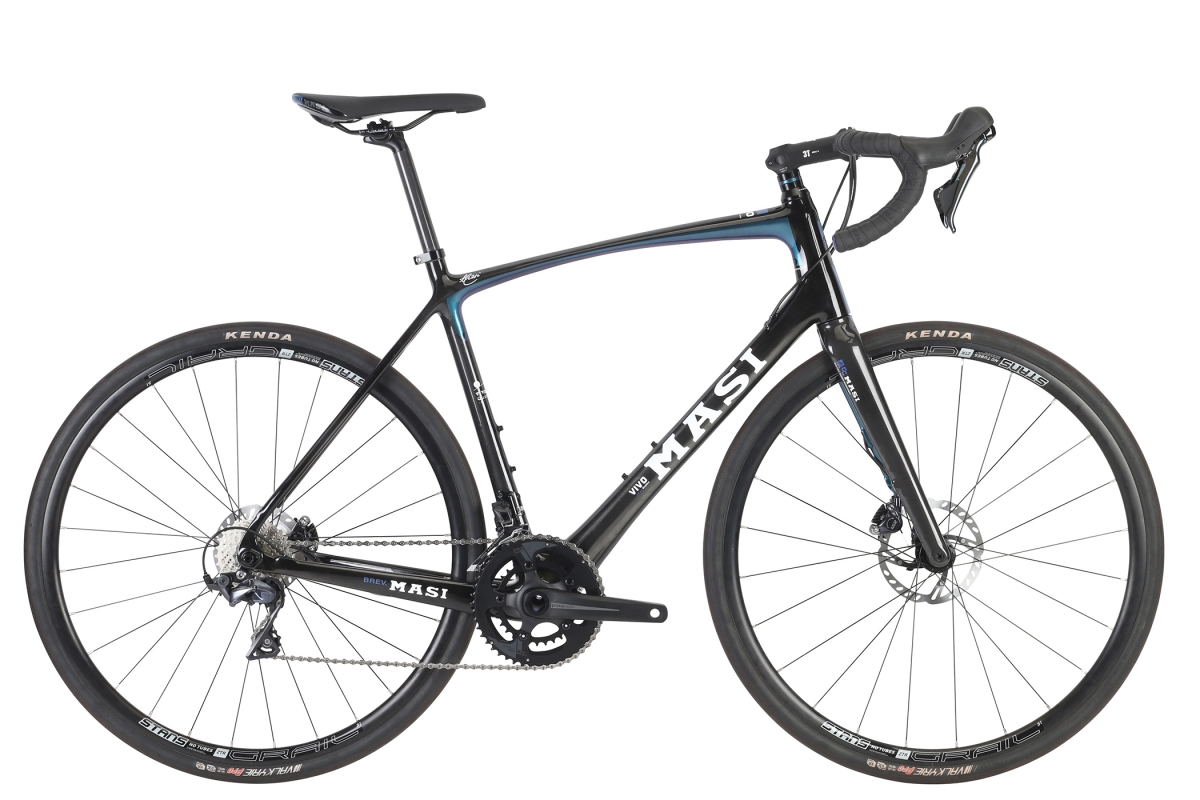

At the pinnacle of the Vivo range lies the Quattro. Designed with the modern road cyclist in mind, the Quattro combines advanced carbon technology with the latest component advancements. The Quattro features Shimano's latest Ultegra R8000 components and is equipped with hydraulic disc brakes to bring all conditions stopping power to your ride. A Praxis Works hollow-forged Zayante crankset featuring new 48/32t chainrings equips the Quattro with a hill conquering 1:1 ratio low gear. Meanwhile, Kenda’s new Valkyrie tires in 30mm width soak up whatever the road throws at you, so grab onto the 3T Ergonova bar and seize the day!
FEATURES
- Comfort Tuned MC9 carbon frame, featuring Masi's proven Endurance geometry, fully convertible internal cable routing, 1.5" tapered head tube, BB86 press-fit BB, flat mount disc, 12mmthru-axle & removable fender mounts
- Comfort Tuned MC9 tapered full carbon fork with 12mm thru axle, flat mount disc & removeable fender mounts
- New Shimano Ultegra R8020 11 speed shifters & R8000 derailleurs
- New Shimano Ultegra R8070 hydraulic disc brakes for all-condition stopping power
- Praxis Works Zayante M30 cranks with new 48/32t right-size gearing featuring a 1:1 low gear
- Stans NoTubes Grail S1 tubeless-ready rims
- New Kenda Valkyrie 30mm 120tpi tires
- Clearance for up to a 35mm tire
| Frame Components | |
|---|---|
| Frame | Masi Comfort Tuned-Carbon MC9 Carbon frame, fully convertible internal cable routing, BB86 press-fit BB, tapered headtube, flat mount disc, 12mm thru-axle & removeable fender mounts, Di2 Compatible |
| Fork | Masi Comfort Tuned MC9 Carbon Tapered 1.5" Steerer, 12mm Thru-Axle, Flat Mount Disc Brake, w/ Removable Fender Mounts |
| Headset | Masi by Token 1.5" Tapered, sealed bearing |
| Drivetrain | |
| Cranks | Praxis Works Zayante M30 SubCompact M24 48/32t |
| Bottom Bracket | Praxis Works M30 by Enduro |
| Chain | KMC X11 |
| Front Derailleur | New Shimano Ultegra R8000 |
| Rear Deralleur | New Shimano Ultegra R8000 |
| Derailleur Shifter | New Shimano Ultegra R8020 |
| Pedals | N/A |
| Wheels | |
| Tires | Kenda Valkyrie 30mm |
| Wheels/Rims | Stans NoTubes Grail S1 Tubeless Ready |
| Hubs | Alloy Disc Sealed Bearing, Thru-Axle, 24/28h |
| Freewheel/Cassette | Shimano CS5800 11-32t 11-spd |
| Braking System | |
| Brakes | New Shimano Ultegra R8070 Hydraulic Flat Mount Disc |
| Brake Levers | New Shimano Ultegra R8020 |
| Other Components | |
| Grips | Masi Gripper+ Gel |
| Handle Bar | 3T Ergonova Pro |
| Stem | 3T ARX II |
| Seat | Masi Corsa Comp |
| Seat Post | Brev. M 3D Carbon Fiber, 27.2 x 300mm, 25mm offset |
| Seat Clamp | Alloy 31.8mm |
| Extras | Removeable Fender Mounts |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 71° | 74° | 515mm (20.3") | 430mm (16.9") | 425mm (16.7") | 73mm (2.9") | 992mm (39.1") | 729mm (28.7") | 530mm (20.9") | 363mm (14.3") | 50mm (2") | 90mm | 400mm | 165mm | |
| S | 72° | 74° | 530mm (20.9") | 460.5mm (18.1") | 425mm (16.7") | 73mm (2.9") | 993mm (39.1") | 758mm (29.8") | 554mm (21.8") | 371mm (14.6") | 45mm (1.8") | 90mm | 400mm | 170mm | |
| M | 72.5° | 73° | 545mm (21.5") | 500mm (19.7") | 425mm (16.7") | 70mm (2.8") | 995mm (39.2") | 788mm (31") | 572mm (22.5") | 370mm (14.6") | 45mm (1.8") | 100mm | 420mm | 170mm | |
| M/L | 72.5° | 73° | 560mm (22") | 530.5mm (20.9") | 425mm (16.7") | 68mm (2.7") | 1006mm (39.6") | 815mm (32.1") | 591mm (23.3") | 379mm (14.9") | 40mm (1.6") | 100mm | 420mm | 172.5mm | |
| L | 72.5° | 72° | 580mm (22.8") | 550.5mm (21.7") | 425mm (16.7") | 68mm (2.7") | 1014mm (39.9") | 830mm (32.7") | 610mm (24") | 382mm (15") | 40mm (1.6") | 110mm | 440mm | 172.5mm | |
| XL | 72.5° | 72° | 600mm (23.6") | 580.5mm (22.9") | 425mm (16.7") | 65mm (2.6") | 1035mm (40.7") | 853mm (33.6") | 626mm (24.6") | 397mm (15.6") | 40mm (1.6") | 110mm | 440mm | 175mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
