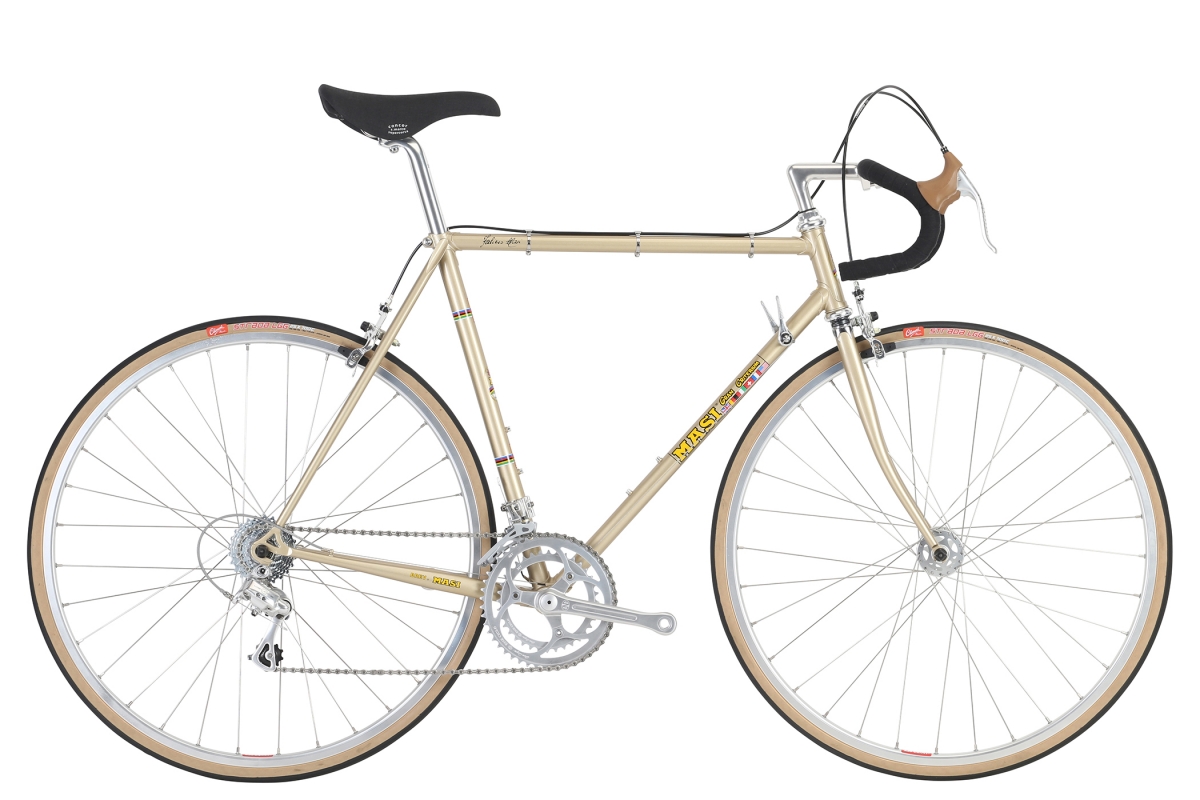

The ultimate Masi race bike, and for many people, the core of what we are as a racing bike brand. Ridden by countless champions from around the world, and by a certain Dave Stoller from Bloomington, Indiana. We painstakingly recreated the iconic lug set, 3D scanning the originals to make sure every angle, every point was exactly how it was. When that was done we reached out to our good friends at Columbus for their SL double butted tub set. Era-appropriate spec like non-aero brake levers, high flange polished hubs and a Cinelli 26.0mm cockpit round out the build. And we even sourced the original cotton handlebar tape to finish off this truly modern classic.
FEATURES
- The return of the iconic Masi road racing machine, painstakingly recreated using exact replicas of the original gran criterium lugs
- Hand crafted from Columbus SL double butted tubing
- Era-appropriate spec: downtube shifters & non-aero brake levers
- Cinelli handlebars & stem
- Selle San Marco Concor SuperCorsa saddle
- Clement tan sidewall tires for a classic look
| Frame Components | |
|---|---|
| Frame | Origional Masi Lugs w/ Columbus Double Butted SL Tubing |
| Fork | Lugged Columbus SL |
| Headset | FSA TH-365/Duron X (1") |
| Drivetrain | |
| Cranks | Dia-Compe CICLO ENE 48/36T |
| Bottom Bracket | Dia-Compe Sealed Square Taper |
| Chain | KMC X10 |
| Front Derailleur | Campagnolo Veloce |
| Rear Deralleur | Campagnolo Veloce |
| Derailleur Shifter | Dia-Compe ENE Downtube |
| Pedals | MKS Sylvan Road w/ Toeclips |
| Wheels | |
| Tires | Clement Strada LGG 700x25mm, 60TPI |
| Wheels/Rims | Brev. M Scatola Road Rim, Double Wall |
| Hubs | Alloy Disc Sealed Bearing, QR, 32h |
| Freewheel/Cassette | Campagnolo Veloce 11-25T, 10-spd |
| Braking System | |
| Brakes | Dia-Compe 505Q |
| Brake Levers | Dia-Compe GC202 |
| Other Components | |
| Grips | Classic Cotton |
| Handle Bar | Cinelli Giro d'Italia, 26.0mm |
| Stem | Cinelli A1, 26.0mm |
| Seat | Selle San Marco Concor SuperCorsa |
| Seat Post | Brev. M Alloy, 27.2mm |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 72.5° | 75° | 510mm (20.1") | 500mm (19.7") | 410mm (16.1") | 70mm (2.8") | 963mm (37.9") | 764mm (30.1") | 509mm (20") | 374mm (14.7") | 45mm (1.8") | 100mm | 420mm | 165mm | |
| 52 | 73° | 74° | 530mm (20.9") | 520mm (20.5") | 410mm (16.1") | 70mm (2.8") | 974mm (38.3") | 782mm (30.8") | 525mm (20.7") | 380mm (15") | 45mm (1.8") | 100mm | 420mm | 165mm | |
| 54 | 73° | 73.5° | 540mm (21.3") | 540mm (21.3") | 410mm (16.1") | 70mm (2.8") | 974mm (38.3") | 800mm (31.5") | 543mm (21.4") | 380mm (15") | 45mm (1.8") | 100mm | 420mm | 165mm | |
| 56 | 73° | 73.5° | 550mm (21.7") | 560mm (22") | 410mm (16.1") | 70mm (2.8") | 985mm (38.8") | 820mm (32.3") | 562mm (22.1") | 383mm (15.1") | 45mm (1.8") | 110mm | 440mm | 170mm | |
| 58 | 73° | 73° | 560mm (22") | 580mm (22.8") | 410mm (16.1") | 70mm (2.8") | 990mm (39") | 837mm (33") | 580mm (22.8") | 384mm (15.1") | 45mm (1.8") | 110mm | 440mm | 170mm | |
| 60 | 73.5° | 73° | 570mm (22.4") | 600mm (23.6") | 410mm (16.1") | 70mm (2.8") | 995mm (39.2") | 855mm (33.7") | 599mm (23.6") | 387mm (15.2") | 45mm (1.8") | 120mm | 440mm | 170mm | |
| 63 | 73.5° | 73° | 590mm (23.2") | 630mm (24.8") | 410mm (16.1") | 70mm (2.8") | 1014mm (39.9") | 884mm (34.8") | 627mm (24.7") | 399mm (15.7") | 45mm (1.8") | 120mm | 440mm | 170mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
