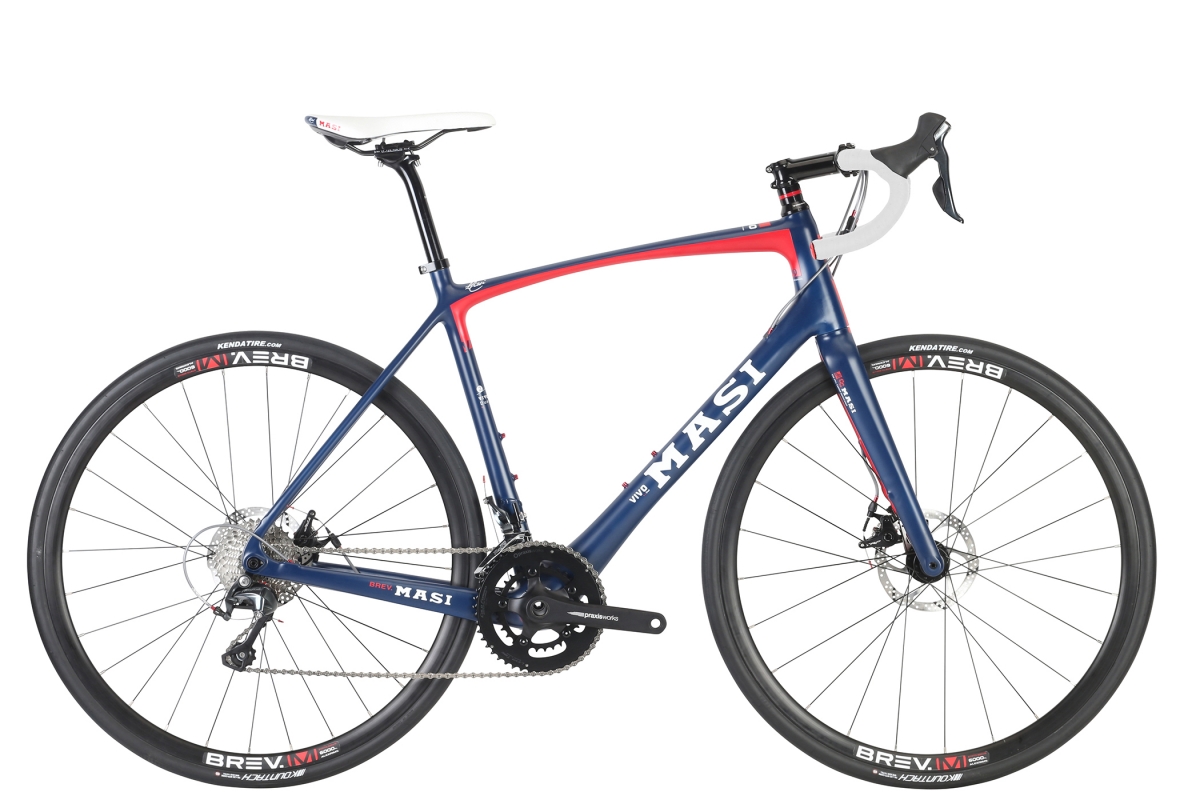

The 2018 Masi Vivo range offers genuine performance options to the endurance rider blending leading edge technology with long distance ride comfort and versatility. Utilizing the performance advantages of our MC9 comfort tuned carbon fiber frame and fork, the Due becomes the perfect partner for the longest road and the steepest climb. Flat mount mechanical disc brakes combine with our proprietary Brev. M lightweight 24mm wide rims to maximize ride quality and tire size options. Shimano R4700 Tiagra 10 speed derailleurs and shifters offer precise shifting while a lightweight Brev. M cockpit combine to create superb ride characteristics.
FEATURES
- Comfort Tuned MC9 carbon frame, featuring Masi's proven endurance geometry, fully convertible internal cable routing, 1.5" tapered head tube, BB86 press-fit BB, flat mount disc, 12mm thru-axle & removable fender mounts
- Comfort Tuned MC9 tapered full carbon fork with 12mm thru axle, flat mount disc & removable fender mounts
- Tektro Spyre-C flat mount dual piston mechanical disc brakes for all-condition stopping power
- Brev. M 3D forged cockpit
- Praxis Works Alba M24 cranks with new 48/32t right-size gearing featuring a 1:1 low gear
- New Brev. M tubeless-compatible race Disc rims, 21mm internal
- Clearance for up to a 35mm tire
| Frame Components | |
|---|---|
| Frame | Masi Comfort Tuned-Carbon MC9 Carbon frame, fully convertible internal cable routing, BB86 press-fit BB, tapered headtube, flat mount disc, 12mm thru-axle & removeable fender mounts, Di2 Compatible |
| Fork | Masi Comfort Tuned MC9 Carbon Tapered 1.5" Steerer, 12mm Thru-Axle, Flat Mount Disc Brake, w/ Removable Fender Mounts |
| Headset | Masi by Token 1.5" Tapered, sealed bearing |
| Drivetrain | |
| Cranks | Praxis Works Alba SubCompact M24 48/32t |
| Bottom Bracket | Praxis Works M24 |
| Chain | KMC X10 |
| Front Derailleur | Shimano Tiagra R4700 |
| Rear Deralleur | Shimano Tiagra R4700 |
| Derailleur Shifter | Shimano Tiagra R4700 |
| Pedals | N/A |
| Wheels | |
| Tires | Kenda Kriterium 700x28mm |
| Wheels/Rims | Brev M. Disc Tubeless Compatible, 21mm Internal |
| Hubs | Alloy Disc Sealed Bearing, Thru-Axle, 24/28h |
| Freewheel/Cassette | Shimano HG500 11-32 10-spd |
| Braking System | |
| Brakes | Tektro Spyre-C Flat Mount Dual Piston Mechanical Disc |
| Brake Levers | Shimano Tiagra R4700 |
| Other Components | |
| Grips | Masi Gripper+ Gel |
| Handle Bar | Brev. M Compact Bend Alloy |
| Stem | Brev. M 3D Forged Alloy Flip Flop |
| Seat | Masi Corsa Comp |
| Seat Post | Brev. M 3D Forged Alloy, 27.2 x 300mm, 25mm offset |
| Seat Clamp | Alloy 31.8mm |
| Extras | Removeable Fender Mounts |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 71° | 74° | 515mm (20.3") | 430mm (16.9") | 425mm (16.7") | 73mm (2.9") | 992mm (39.1") | 729mm (28.7") | 530mm (20.9") | 363mm (14.3") | 50mm (2") | 90mm | 400mm | 165mm | |
| S | 72° | 74° | 530mm (20.9") | 460.5mm (18.1") | 425mm (16.7") | 73mm (2.9") | 993mm (39.1") | 758mm (29.8") | 554mm (21.8") | 371mm (14.6") | 45mm (1.8") | 90mm | 400mm | 170mm | |
| M | 72.5° | 73° | 545mm (21.5") | 500mm (19.7") | 425mm (16.7") | 70mm (2.8") | 995mm (39.2") | 788mm (31") | 572mm (22.5") | 370mm (14.6") | 45mm (1.8") | 100mm | 420mm | 170mm | |
| M/L | 72.5° | 73° | 560mm (22") | 530.5mm (20.9") | 425mm (16.7") | 68mm (2.7") | 1006mm (39.6") | 815mm (32.1") | 591mm (23.3") | 379mm (14.9") | 40mm (1.6") | 100mm | 420mm | 172.5mm | |
| L | 72.5° | 72° | 580mm (22.8") | 550.5mm (21.7") | 425mm (16.7") | 68mm (2.7") | 1014mm (39.9") | 830mm (32.7") | 610mm (24") | 382mm (15") | 40mm (1.6") | 110mm | 440mm | 172.5mm | |
| XL | 72.5° | 72° | 600mm (23.6") | 580.5mm (22.9") | 425mm (16.7") | 65mm (2.6") | 1035mm (40.7") | 853mm (33.6") | 626mm (24.6") | 397mm (15.6") | 40mm (1.6") | 110mm | 440mm | 175mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
