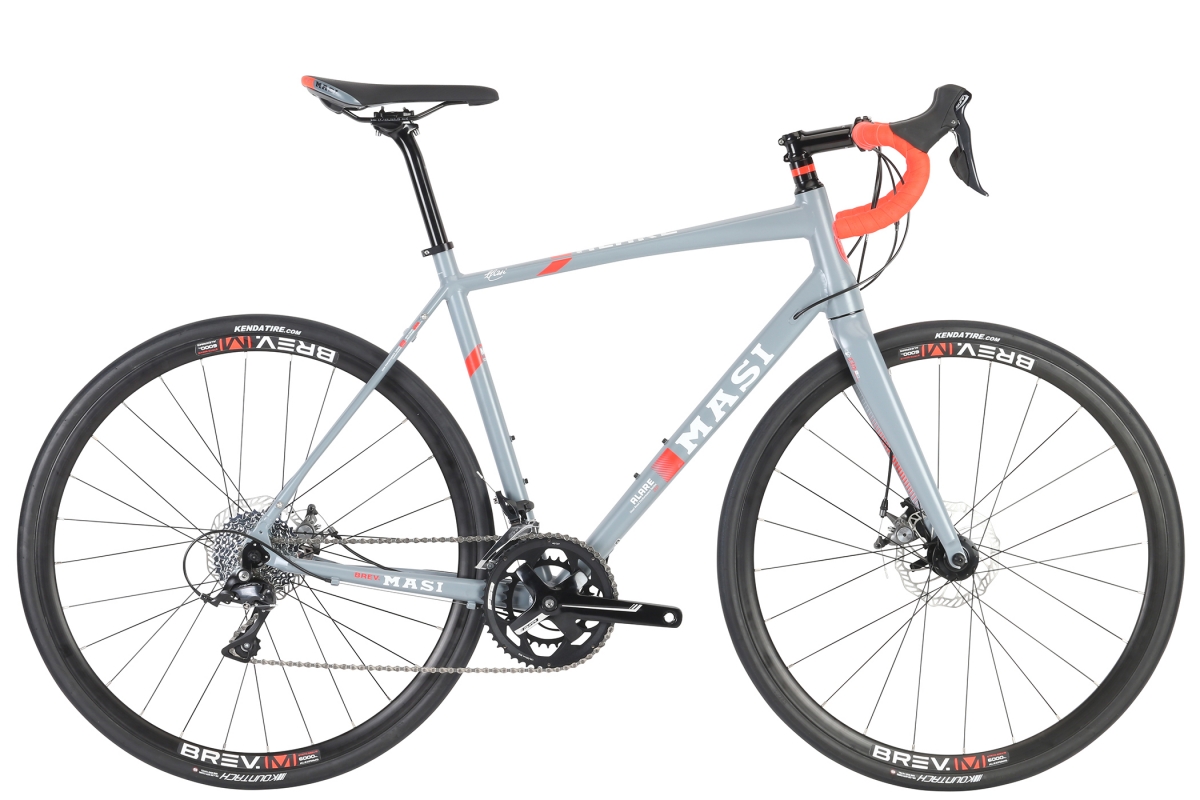

Stylish, affordable, and packed with modern upgrades, the 2018 Masi Alare proves that performance cycling doesn’t have to break the bank. The MA4 6000 series aluminum frame features a taller tapered head tube while the Alare’s “comfort Tuned“ geometry creates the perfect choice for those challenging Gran Fondos. The addition of road specific flat mount disc brakes, our proprietary BREV.M 28mm rims, and a lightweight 3D forged aluminum cockpit combine to deliver a great value package that includes the precision and reliability of Shimano’s Sora R3000 group.
FEATURES
- Comfort Tuned MA5 disc aluminum frame, featuring Masi's proven endurance geometry, tapered 1.5" head tube & flat mount disc mounts
- Masi Elite/RS carbon fork with tapered 7075 alloy steerer & flat mount disc mounts
- ProMax MS3.3R mechanical disc brakes for all-condition stopping power
- Shimano Sora R3000 9 speed shifters & derailleurs
- Brev. M 3D forged cockpit
- FSA Vero Pro cranks with new 48/32t right-size gearing featuring a 1:1 low gear
- New Brev. M tubeless-compatible race Disc rims, 21mm internal
- Kenda Kriterium 28mm tires
- Clearance for up to a 32mm tire
| Frame Components | |
|---|---|
| Frame | Masi MA5 Disc Double-Butted Alloy w/Tapered 1.5" headtube, Flat Mount Disc Brake |
| Fork | Masi Elite/RS Disc, Carbon w/Tapered 7075 Alloy Steerer, Flat Mount Disc Brake |
| Headset | FSA No.42; Orbit C-40 Sealed 1-1/8 ACB Top, 1.5" Industrial Sealed Bottom |
| Drivetrain | |
| Cranks | FSA Vero Pro SubCompact 48/32t |
| Bottom Bracket | FSA Sealed Cartridge |
| Chain | KMC X9 |
| Front Derailleur | Shimano Sora R3000 |
| Rear Deralleur | Shimano Sora R3000 |
| Derailleur Shifter | Shimano Sora R3000 |
| Pedals | Nylon Test Ride |
| Wheels | |
| Tires | Kenda Kriterium 700x28mm |
| Wheels/Rims | Brev M. Disc Tubeless Compatible, 21mm Internal |
| Hubs | Alloy Disc, QR, 24/28h |
| Freewheel/Cassette | Sunrace CSM90 11-32 9spd |
| Braking System | |
| Brakes | LeeChi MS3.3 Flat Mount Mechanical Disc |
| Brake Levers | Shimano Sora R3000 |
| Other Components | |
| Grips | Masi Gripper+ Gel |
| Handle Bar | Brev. M Compact Bend Alloy |
| Stem | Brev. M 3D Forged Alloy Flip Flop |
| Seat | Masi Corsa Comp |
| Seat Post | Brev. M 3D Forged Alloy, 27.2 x 300mm, 25mm offset |
| Seat Clamp | Alloy 31.8mm |
| Extras | Rack & Fender Mounts |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 71° | 74° | 515mm (20.3") | 430mm (16.9") | 425mm (16.7") | 73mm (2.9") | 992mm (39.1") | 729mm (28.7") | 530mm (20.9") | 363mm (14.3") | 50mm (2") | 90mm | 400mm | 165mm | |
| S | 72° | 74° | 530mm (20.9") | 465mm (18.3") | 425mm (16.7") | 73mm (2.9") | 993mm (39.1") | 758mm (29.8") | 554mm (21.8") | 371mm (14.6") | 45mm (1.8") | 90mm | 400mm | 170mm | |
| M | 72.5° | 73° | 545mm (21.5") | 500mm (19.7") | 425mm (16.7") | 70mm (2.8") | 995mm (39.2") | 788mm (31") | 572mm (22.5") | 370mm (14.6") | 45mm (1.8") | 100mm | 420mm | 170mm | |
| M/L | 72.5° | 73° | 560mm (22") | 535mm (21.1") | 425mm (16.7") | 68mm (2.7") | 1006mm (39.6") | 815mm (32.1") | 591mm (23.3") | 379mm (14.9") | 40mm (1.6") | 100mm | 420mm | 172.5mm | |
| L | 72.5° | 72° | 580mm (22.8") | 555mm (21.9") | 425mm (16.7") | 68mm (2.7") | 1014mm (39.9") | 830mm (32.7") | 610mm (24") | 382mm (15") | 40mm (1.6") | 110mm | 440mm | 172.5mm | |
| XL | 72.5° | 72° | 600mm (23.6") | 585mm (23") | 425mm (16.7") | 65mm (2.6") | 1035mm (40.7") | 853mm (33.6") | 626mm (24.6") | 397mm (15.6") | 40mm (1.6") | 110mm | 440mm | 175mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
