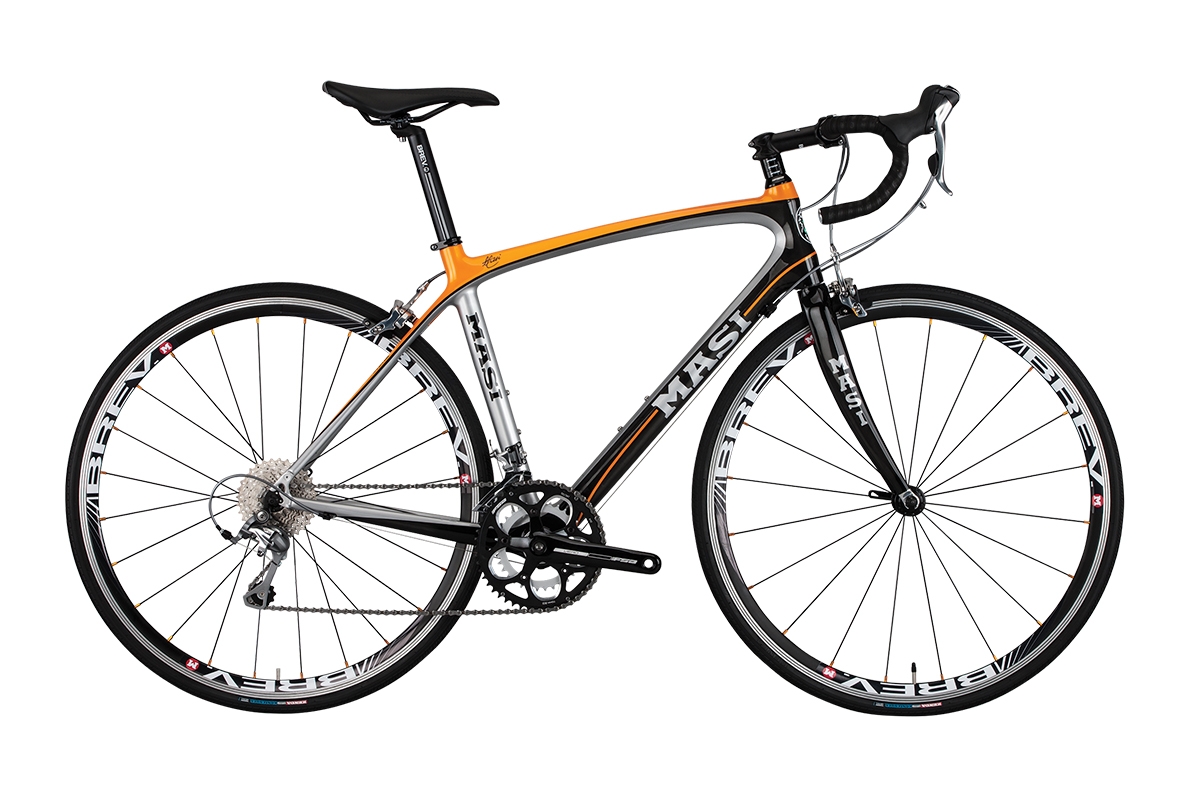

FEATURES
- Masi MC3 carbon frame w/ internal rear brake routing and integrated headtube
- Masi Elite/RS carbon integrated fork w/ 7075 alloy steerer
- FSA Vero crankset; 50/34 w/ sealed cartridge BB
- Shimano Tiagra shifters, front and rear derailleur
- Sunrace CSRS, 10 speed, 12-32t cassette
- Brev. M alloy bar / Brev. M 3-D forged flip/flop stem
- Masi SLS saddle
- Brev. M alloy seatpost
- Alloy 20/24h cassette hubs w/ alloy QR
- Brev. M 20/24 Race rims
- Kenda Kontender 26c tires
- Tektro R312 dual pivot brakeset w/ cartridge pads
| Frame Components | |
|---|---|
| Frame | Masi MC3 carbon w/ internal rear brake routing and integrated headtube |
| Fork | Masi Elite / RS carbon integrated w/ 7075 alloy steerer |
| Headset | FSA 23/CC internal |
| Drivetrain | |
| Cranks | FSA Vero, 50/34 |
| Bottom Bracket | FSA square taper |
| Chain | Shimano CN-4601 |
| Front Derailleur | Shimano Tiagra |
| Rear Deralleur | Shimano Tiagra |
| Derailleur Shifter | Shimano Tiagra |
| Pedals | N/A |
| Wheels | |
| Tires | Kenda Kontender 26c wire bead |
| Wheels/Rims | Brev. M 20/24h rims, alloy cassette hubs, stainless spokes |
| Freewheel/Cassette | Sunrace CSRS, 10 speed, 12-32t |
| Braking System | |
| Brakes | Tektro R312 w/ cartridge pads |
| Brake Levers | Shimano Tiagra |
| Other Components | |
| Grips | Masi cork tape |
| Handle Bar | Brev. M alloy, 31.8mm |
| Stem | Brev. M 3-D forged alloy |
| Seat | Masi SLS |
| Seat Post | Brev. M alloy, 31.6 x 300mm |
| Seat Clamp | Alloy SL |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 71° | 74° | 515mm (20.3") | 43mm (1.7") | 420mm (16.5") | 73mm (2.9") | 986mm (38.8") | 714mm (28.1") | 50mm (2") | ||||||
| S | 72° | 74° | 530mm (20.9") | 46.5mm (1.8") | 420mm (16.5") | 73mm (2.9") | 988mm (38.9") | 751mm (29.6") | 45mm (1.8") | ||||||
| M | 72.5° | 73° | 545mm (21.5") | 50mm (2") | 420mm (16.5") | 70mm (2.8") | 990mm (39") | 776mm (30.6") | 45mm (1.8") | ||||||
| M/L | 72.5° | 73° | 560mm (22") | 53.5mm (2.1") | 420mm (16.5") | 68mm (2.7") | 1001mm (39.4") | 804mm (31.7") | 40mm (1.6") | ||||||
| L | 72.5° | 72° | 575mm (22.6") | 55.5mm (2.2") | 420mm (16.5") | 68mm (2.7") | 1004mm (39.5") | 823mm (32.4") | 40mm (1.6") | ||||||
| XL | 72.5° | 72° | 595mm (23.4") | 58.5mm (2.3") | 420mm (16.5") | 65mm (2.6") | 1025mm (40.4") | 849mm (33.4") | 40mm (1.6") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
