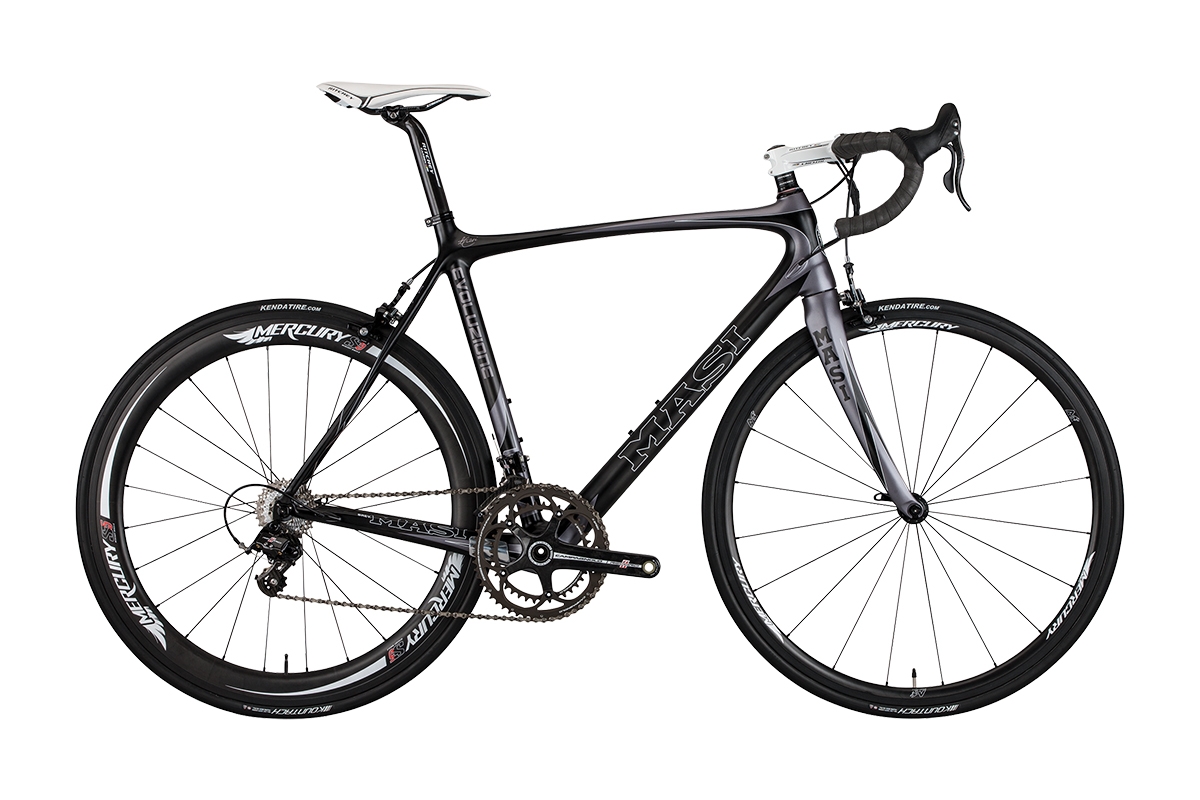

Evoluzione Record
- Year: 2014
- MSRP: $6,769.99 *
- Sizes: 47cm, 50cm, 53cm, 56cm, 59cm, 60cm
- Colors: Charcoal / White
- Weight:
- NO LONGER AVAILABLE
FEATURES
- Masi MC7 carbon frame, Di2 compatible, PF30, internal routing, tapered headtube
- Masi FC/Pro Taper monocoque carbon fork
- Campagnolo Record, 53/39 crankset
- Ritchey WCS Carbon Streem saddle
- Ritchey WCS 1 bolt carbon seatpost
- Mercury M3 front / Mercury M5 rear carbon clincher wheelset
- Kenda Kountach 25c folding bead, 120tpi tires
Frame Components | |
---|---|
Frame | Masi MC7 carbon, Di2 compatible, PF30, internal routing, tapered headtube |
Fork | Masi FC / Pro Taper monocoque carbon |
Headset | Ritchey Pro Logic Taper headset |
Drivetrain | |
Cranks | Campagnolo Record, 53/39 |
Bottom Bracket | Campagnolo Record, OS-Fit, Press Fit 30 |
Chain | Campagnolo Record 11 |
Rear Deralleur | Campagnolo Record |
Derailleur Shifter | Campagnolo Record |
Pedals | N/A |
Wheels | |
Tires | Kenda Kountach 25c folding bead, 120tpi |
Wheels/Rims | Mercury S3 front / Mercury S5 rear carbon clincher |
Freewheel/Cassette | Campagnolo Record, 11 speed, 11-25t |
Braking System | |
Brakes | Campagnolo Record |
Brake Levers | Campagnolo Record |
Other Components | |
Grips | Masi cork tape |
Handle Bar | Ritchey WCS Evo Curve, 31.8mm |
Stem | Ritchey WCS 4-Axis |
Seat | Ritchey WCS Carbon Streem |
Seat Post | Ritchey WCS 1 bolt carbon, 31.6 x 350mm |
Seat Clamp | Alloy SL |
Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
47 | 72° | 74° | 520mm (20.5") | 470mm (18.5") | 410mm (16.1") | 68mm (2.7") | 965mm (38") | 712mm (28") | 45mm (1.8") | ||||||
50 | 72.5° | 74° | 530mm (20.9") | 500mm (19.7") | 410mm (16.1") | 68mm (2.7") | 975mm (38.4") | 744mm (29.3") | 45mm (1.8") | ||||||
53 | 73° | 74° | 545mm (21.5") | 530mm (20.9") | 410mm (16.1") | 68mm (2.7") | 986mm (38.8") | 764mm (30.1") | 45mm (1.8") | ||||||
56 | 73.5° | 73.5° | 565mm (22.2") | 560mm (22") | 410mm (16.1") | 68mm (2.7") | 996mm (39.2") | 797mm (31.4") | 45mm (1.8") | ||||||
59 | 73° | 73.5° | 585mm (23") | 590mm (23.2") | 410mm (16.1") | 68mm (2.7") | 1021mm (40.2") | 817mm (32.2") | 45mm (1.8") | ||||||
62 | 73° | 73.5° | 595mm (23.4") | 620mm (24.4") | 410mm (16.1") | 68mm (2.7") | 1031mm (40.6") | 842mm (33.1") | 45mm (1.8") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
