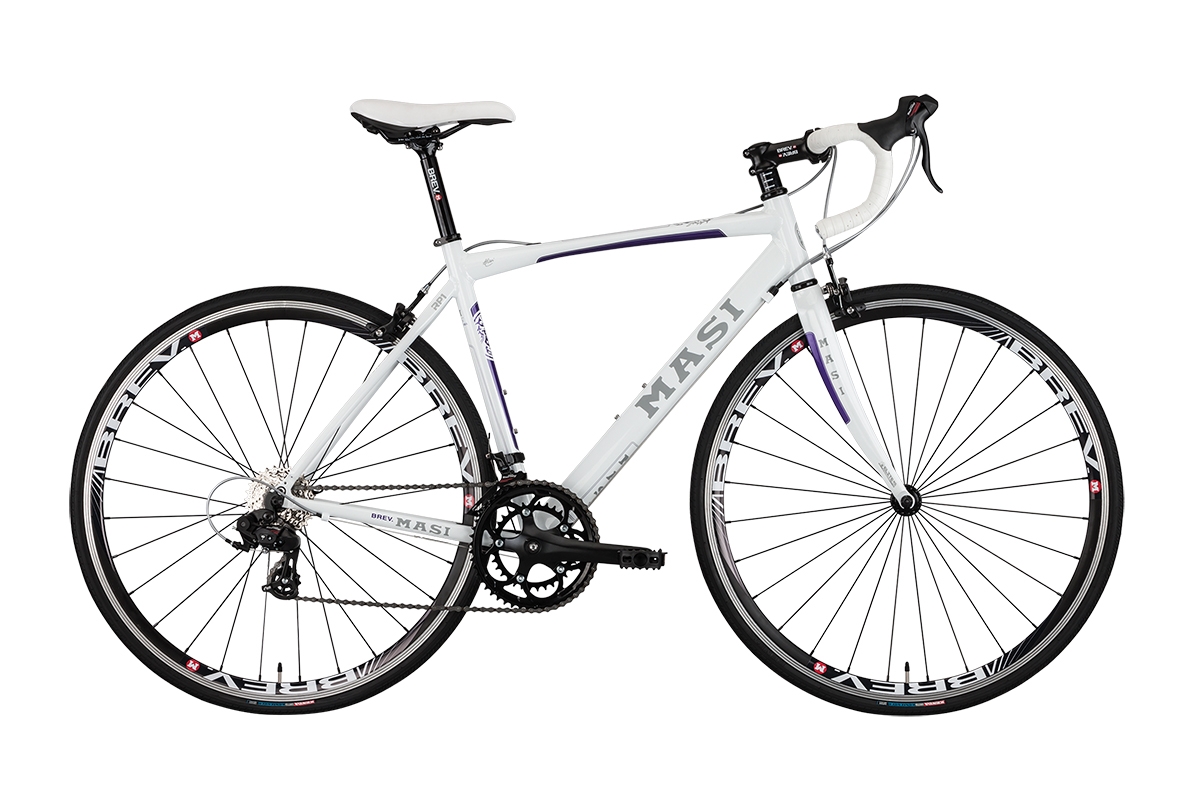

Inizio Bellissima
- Year: 2014
- MSRP: $749.99 *
- Sizes: 47cm, 49cm, 51cm, 53cm
- Colors: Pearl White
- Weight:
- NO LONGER AVAILABLE
FEATURES
- Masi MA4 double-butted alloy frame
- Masi Elite/RS carbon integrated fork w/ 7075 alloy steerer
- Forged Alloy crankset; 50/34 w/ sealed cartridge BB
- Shimano A070 shifters, front and rear derailleur
- Sunrace CSM-63 cassette 11-28T 7-speed
- Brev. M alloy bar /Brev. M forged flip/flop stem
- Masi SLS saddle
- Brev. M alloy seatpost
- Alloy 28h cassette hubs w/ alloy QR
- Brev. M 28 Race rims
- Kenda Kontender 26c tires
- Tektro R312 dual pivot brakeset
Frame Components | |
---|---|
Frame | Masi MA4 double-butted alloy w/ internal rear brake routing |
Fork | Masi Elite / RS carbon integrated w/ 7075 alloy steerer |
Headset | FSA Threadless |
Drivetrain | |
Cranks | Forged alloy, 50/34 |
Bottom Bracket | FSA square taper |
Chain | KMC Z-50 |
Front Derailleur | Shimano A070 |
Rear Deralleur | Shimano A070 |
Derailleur Shifter | Shimano A070 |
Pedals | Nylon body |
Wheels | |
Tires | Kenda Kontender 26c wire bead |
Wheels/Rims | Brev. M 28h rims, alloy cassette hubs, stainless spokes |
Freewheel/Cassette | Sunrace CSR-63, 7 speed, 11-28t |
Braking System | |
Brakes | Tektro R312 |
Brake Levers | Shimano A070 |
Other Components | |
Grips | Masi cork tape |
Handle Bar | Brev. M Bellissima alloy, 31.8mm |
Stem | Brev. M alloy |
Seat | Masi Bellissima |
Seat Post | Brev. M Zero Offset alloy, 27.2 x 300mm |
Seat Clamp | Alloy SL |
Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
47 | 71° | 75° | 502mm (19.8") | 470mm (18.5") | 408mm (16.1") | 73mm (2.9") | 966mm (38") | 728mm (28.7") | 50mm (2") | ||||||
49 | 72° | 74.5° | 520mm (20.5") | 490mm (19.3") | 408mm (16.1") | 70mm (2.8") | 973mm (38.3") | 739mm (29.1") | 50mm (2") | ||||||
51 | 72.5° | 74° | 530mm (20.9") | 510mm (20.1") | 408mm (16.1") | 70mm (2.8") | 972mm (38.3") | 759mm (29.9") | 45mm (1.8") | ||||||
53 | 73° | 73.5° | 540mm (21.3") | 530mm (20.9") | 412mm (16.2") | 70mm (2.8") | 981mm (38.6") | 765mm (30.1") | 45mm (1.8") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
