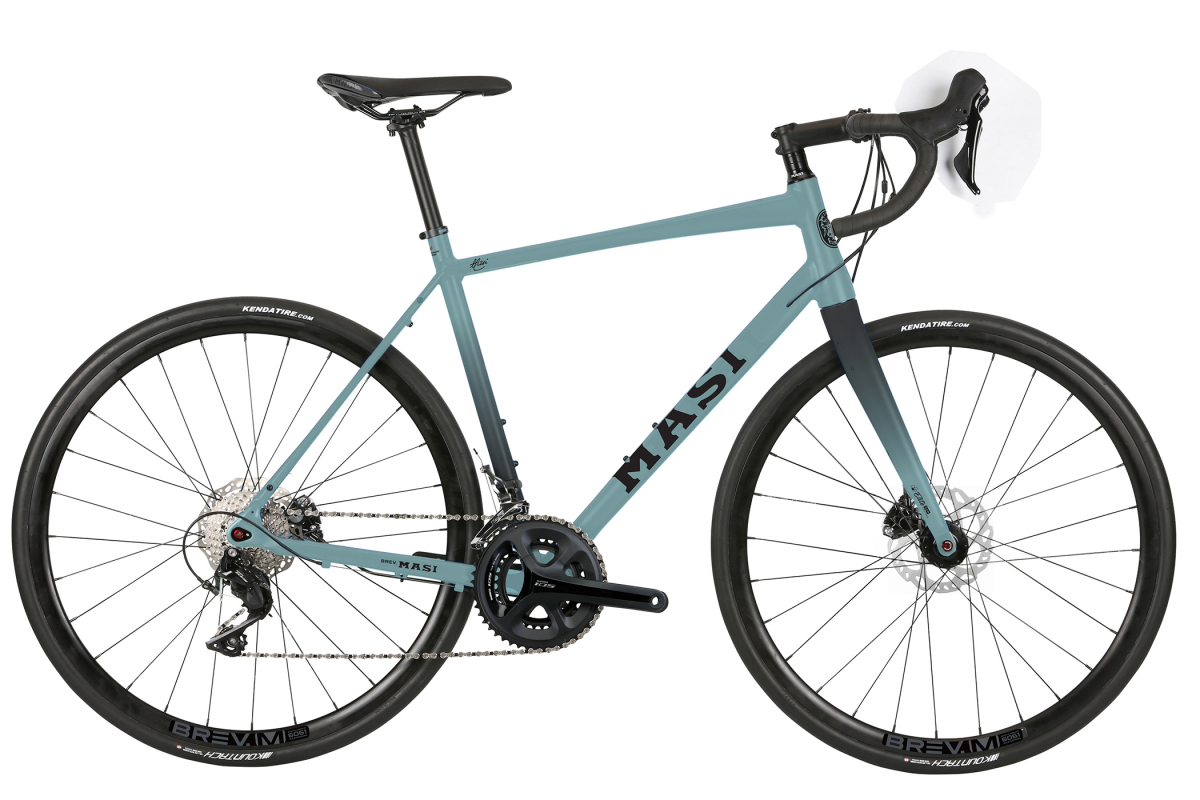

Built around our X6 Disc aluminum frame and comfort-tuned geometry, the Vincere 105 features a taller, tapered head tube and a carbon bladed fork to produce the perfect all-day Grand Fondo bike. Paired with Shimano 105 group, the flagship Vincere is geared for the performance-demanding, budget-conscious rider. Shimano hydraulic disc brakes and Kenda Valkyrie 30c folding tires deliver excellent control and comfort for a variety of conditions.
FEATURES
- Vincere X6 Disc, butted alloy frame with smooth welds, tapered head tube, and internal cable routing
- Vincere Disc MC-7 carbon fork with tapered steer tube, flat-mount disc, and thru-axle
- Shimano 105 Components with compact drivetrain
- 68mm threaded BSA bottom bracket
- Flat-mount disc brakes
- 12mm thru-axles
- 30c tires and clearance for tires up to 32c
- Brev. M carbon seatpost
| Frame Components | |
|---|---|
| Frame | Vincere X6 Disc | Double-butted alloy | Smooth welded | 1.125 - 1.5" tapered head tube | 68mm threaded BSA bottom bracket | Internal routing | Flat-mount disc brake | Replaceable derailleur hanger | 12x142mm thru-axle |
| Fork | Vincere Disc | MC-7 Carbon | 1.125 - 1.5" tapered 7075 aluminum steer tube | Flat-mount disc brake | 12x100mm thru-axle |
| Headset | FSA 42E 1.5" tapered |
| Drivetrain | |
| Cranks | Shimano 105 FC-R7000 | 50/34T chainring | 50cm: 165mm, 52cm: 170mm, 54 - 56cm: 172.5mm, 58 - 60cm: 175mm |
| Bottom Bracket | Shimano 68mm threaded BSA |
| Chain | KMC X11 |
| Front Derailleur | Shimano 105 FD-R7000 | 31.8mm band-type |
| Rear Deralleur | Shimano 105 RD-R7000GSL |
| Derailleur Shifter | Shimano 105 ST-R7020 Hydraulic |
| Pedals | |
| Wheels | |
| Tires | Kenda Valkyrie | 700 x 30c | Folding |
| Wheels/Rims | Brev M. 700c Performance Disc | Depth: 23mm, Width (Internal): 21mm | 24H front, 28H rear | Tubeless compatible |
| Hubs | Brev M. Performance Disc | Sealed bearings | Front: 12 x 100mm thru-axle, Rear: 12 x 142mm thru-axle | Center Lock | 24H |
| Freewheel/Cassette | Shimano 105 CS-R7000 | 11-spd | 11-32T |
| Spokes | 14g | Black Stainless |
| Braking System | |
| Brakes | Shimano 105 BR-R7070 hydraulic disc | Flat mount | RT-70 Center Lock rotor, F: 160mm, R: 140mm |
| Brake Levers | Shimano 105 ST-R7020 Hydraulic |
| Other Components | |
| Grips | Masi Gripper Silicone Gel |
| Handle Bar | Brev M. compact alloy endurance bend | Ï• 31.8mm | 120mm drop | 75mm reach | 50-52cm: 40cm, 54-56cm: 42cm, 58-60cm: 44cm |
| Stem | Brev M. Endurance | 3D forged alloy | -7° drop | 50-52cm: 90mm, 54-56cm: 100mm, 58-60cm: 110mm |
| Seat | Masi Endurance Comp |
| Seat Post | Brev M. Carbon | Ï• 27.2mm x 300mm | 10mm offset |
| Seat Clamp | Alloy | Ï• 31.8mm |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS (50) | 70° | 74° | 515mm (20.3") | 430mm (16.9") | 425mm (16.7") | 73mm (2.9") | 996mm (39.1") | 674mm (28.7") | 526.8mm (20.9") | 363.9mm (14.3") | 45mm (2") | 90mm | 400mm | 165mm | |
| S (52) | 70.5° | 74° | 530mm (20.9") | 465mm (18.3") | 425mm (16.7") | 73mm (2.9") | 1008mm (39.1") | 703mm (29.8") | 547.5mm (21.8") | 373mm (14.6") | 45mm (1.8") | 90mm | 400mm | 170mm | |
| M (54) | 71° | 73° | 545mm (21.5") | 500mm (19.7") | 425mm (16.7") | 70mm (2.8") | 1010mm (39.2") | 746mm (31") | 565.3mm (22.5") | 372.2mm (14.6") | 45mm (1.8") | 100mm | 420mm | 170mm | |
| ML (56) | 71.5° | 73° | 560mm (22") | 535mm (21.1") | 425mm (16.7") | 68mm (2.7") | 1006mm (39.6") | 770.4mm (32.1") | 584.1mm (23.3") | 381.4mm (14.9") | 45mm (1.6") | 100mm | 420mm | 172.5mm | |
| L (58) | 72.0° | 72° | 580mm (22.8") | 555mm (21.9") | 425mm (16.7") | 68mm (2.7") | 1025mm (39.9") | 790.5mm (32.7") | 605mm (24") | 383.4mm (15") | 45mm (1.6") | 110mm | 440mm | 172.5mm | |
| XL (60) | 72.0° | 72° | 600mm (23.6") | 585mm (23") | 425mm (16.7") | 65mm (2.6") | 1035mm (40.7") | 822.5mm (33.6") | 621.1mm (24.6") | 398.2mm (15.6") | 45mm (1.6") | 110mm | 440mm | 175mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
