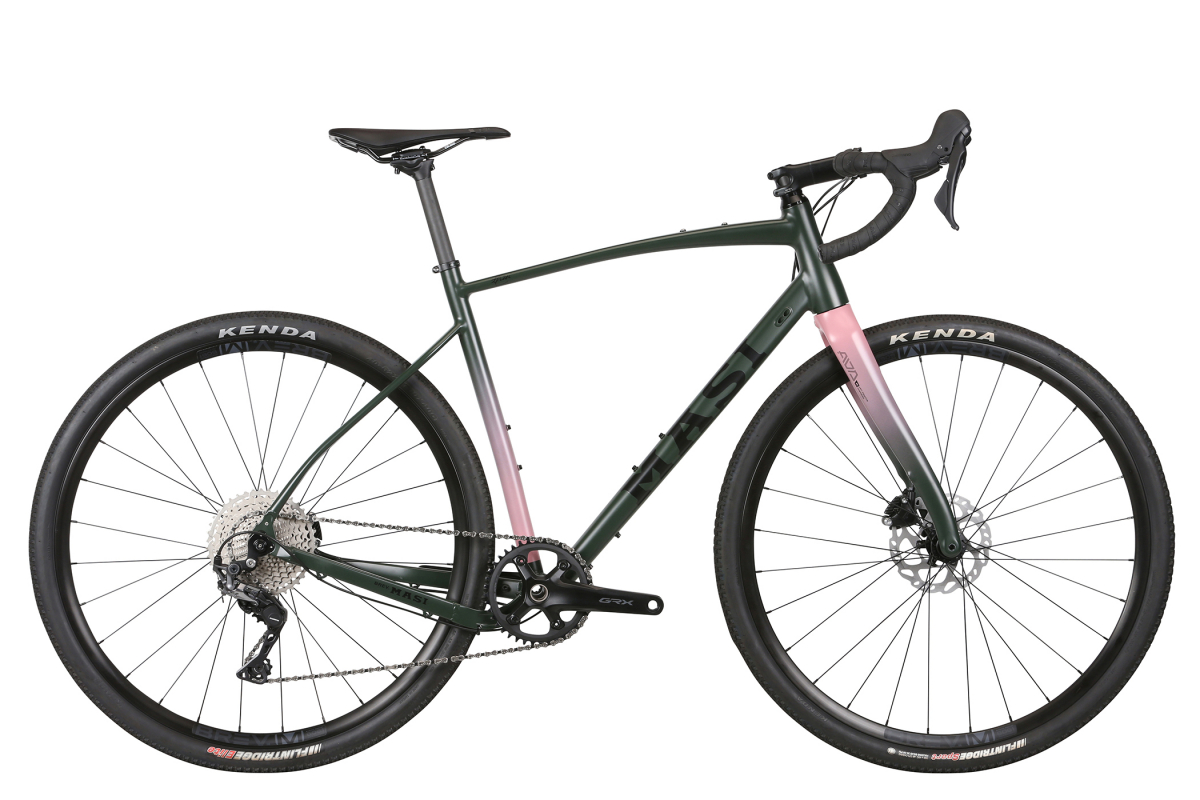

Just like the wine it's named after, the Brunello surprises you when you get a taste of it. An all new aluminum gravel frame and full carbon fork easily handle the needs of the road enthusiast turned gravel rider. With its dropped chainstay, massive tire clearance, gravel-specific geometry, and 1X Shimano GRX drivetrain, the Brunello is ready for you to choose your own adventure.
FEATURES
- Butted, formed, and smooth welded gravel-specific aluminum frame
- Full-carbon fork
- 12mm thru-axles
- Shimano GRX 600 1X 11-speed drivetrain
- 650b or 700c compatible
- 700x45c tire clearance
- Dropper post compatible
| Frame Components | |
|---|---|
| Frame | Brunello gravel | Smooth welded double-butted aluminum | 1.125 - 1.5" integrated head tube | BB86 bottom bracket | Flat-mount disc brake | Replaceable derailleur hanger | Internal dropper post compatible | 12 x 142mm thru-axle |
| Fork | Brunello gravel | MC-9 carbon construction | Carbon 1.125 - 1.5" tapered steer tube | Flat-mount disc | Fender mounts | 12 x 100mm thru-axle |
| Headset | FSA 42E 1.5" tapered |
| Drivetrain | |
| Cranks | Shimano GRX FC-RX600 1x11s | 40T chainring | 47-51cm : 170mm, 54-56cm : 172.5mm, 58-61cm : 175mm |
| Bottom Bracket | Token BB86 for 24mm spindle |
| Chain | KMC X11 |
| Rear Deralleur | Shimano GRX RD-RX812 11s |
| Derailleur Shifter | Shimano GRX ST-RX600 1X11 |
| Pedals | |
| Wheels | |
| Tires | Kenda Flintridge | 700x40c | 60tpi | Folding |
| Wheels/Rims | Brev M. 700c Performance Gravel Disc | Depth: 23mm, Width (internal): 21mm | 28H | Double wall | Tubeless compatible |
| Hubs | Brev M. Disc | Sealed bearings | Front: 12 x 100mm thru-axle, Rear: 12 x 142mm thru-axle | Center Lock | 28H |
| Freewheel/Cassette | Shimano CS-M5100 | 11-spd | 11-42T |
| Spokes | 14g | Black Stainless |
| Braking System | |
| Brakes | Shimano GRX BR-RX400 hydraulic disc | Flat mount | RT-70 Center Lock rotor, F: 160mm, R: 140mm |
| Brake Levers | Shimano GRX ST-RX600 hydraulic |
| Other Components | |
| Grips | Masi Gripper Silicone Gel |
| Handle Bar | Brev M. race alloy gravel bend | ϕ 31.8mm | 122mm drop | 70mm reach | 16° flare | 47cm: 40cm, 51cm: 42cm, 54cm: 44cm, 56-61cm: 46cm |
| Stem | Brev M. Gravel Race | 3D forged alloy | -7° drop | 47cm: 90mm, 51-54cm: 100mm, 56-58cm: 110mm, 61cm: 120mm |
| Seat | Masi Gravel Performance |
| Seat Post | Brev M. Carbon | Ï• 27.2mm x 300mm | 10mm offset |
| Seat Clamp | Alloy | Ï• 31.8mm |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 69.5° | 74° | 519.4mm (20.4") | 440mm (17.3") | 425mm (16.7") | 70mm (2.8") | 1012.2mm (39.8") | 733mm (28.9") | 538mm (21.2") | 370mm (14.6") | 401mm (") | 45mm (1.8") | 90mm | 400mm | 165mm |
| 51 | 70° | 74° | 530.5mm (20.9") | 470mm (18.5") | 425mm (16.7") | 70mm (2.8") | 1020.1mm (40.1") | 762mm (30") | 559.2mm (22") | 375mm (14.8") | 401mm (") | 45mm (1.8") | 90mm | 400mm | 170mm |
| 54 | 70.5° | 73.5° | 545.2mm (21.5") | 500mm (19.7") | 425mm (16.7") | 70mm (2.8") | 1027.5mm (40.4") | 788mm (31") | 580mm (22.8") | 380mm (15") | 401mm (") | 45mm (1.8") | 100mm | 420mm | 172.5mm |
| 56 | 71° | 73° | 560.2mm (22.1") | 520mm (20.5") | 425mm (16.7") | 70mm (2.8") | 1034.3mm (40.7") | 807mm (31.8") | 594.3mm (23.4") | 387mm (15.2") | 401mm (") | 45mm (1.8") | 100mm | 420mm | 172.5mm |
| 58 | 71.5° | 73° | 572mm (22.5") | 540mm (21.3") | 425mm (16.7") | 70mm (2.8") | 1041.3mm (40.9") | 826mm (32.5") | 610mm (24") | 394mm (15.5") | 401mm (") | 45mm (1.8") | 110mm | 440mm | 175mm |
| 60 | 71.5° | 72° | 588.8mm (23.2") | 570mm (22.4") | 425mm (16.7") | 70mm (2.8") | 1050.3mm (41.3") | 851mm (33.5") | 629mm (24.8") | 396.6mm (15.6") | 401mm (") | 45mm (1.8") | 110mm | 440mm | 175mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
