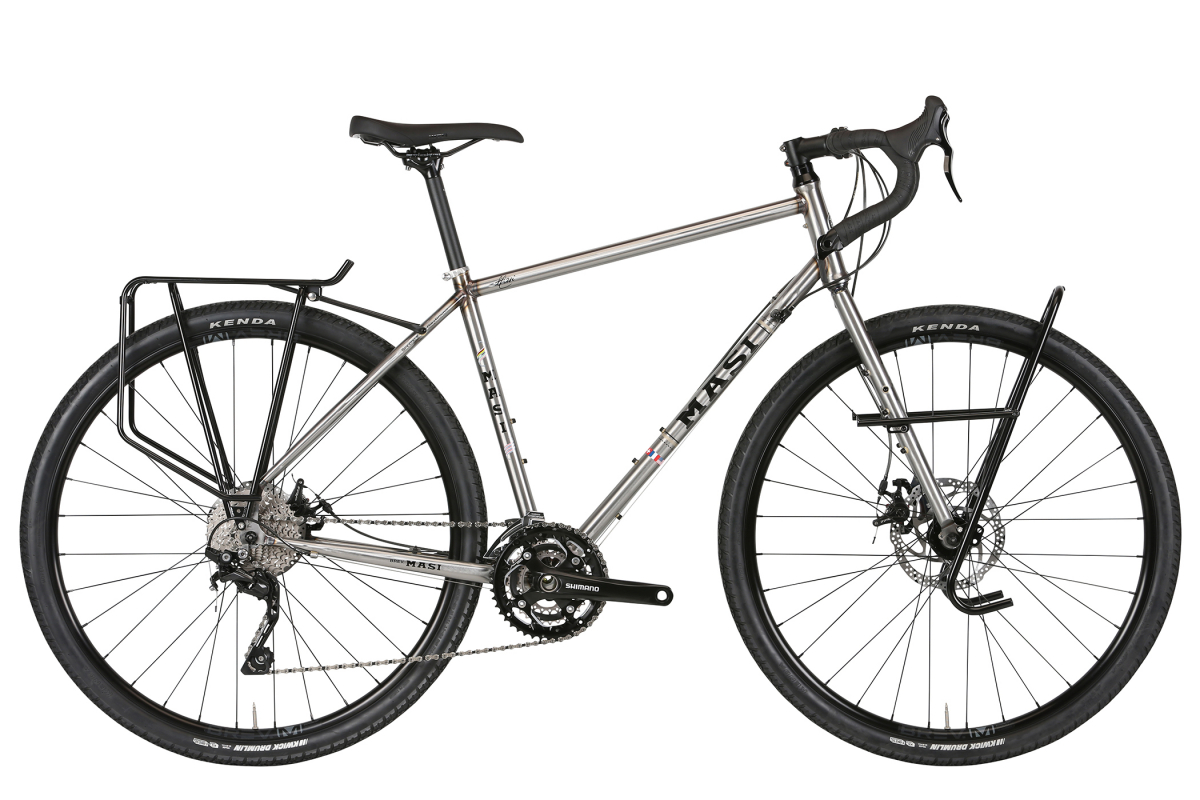

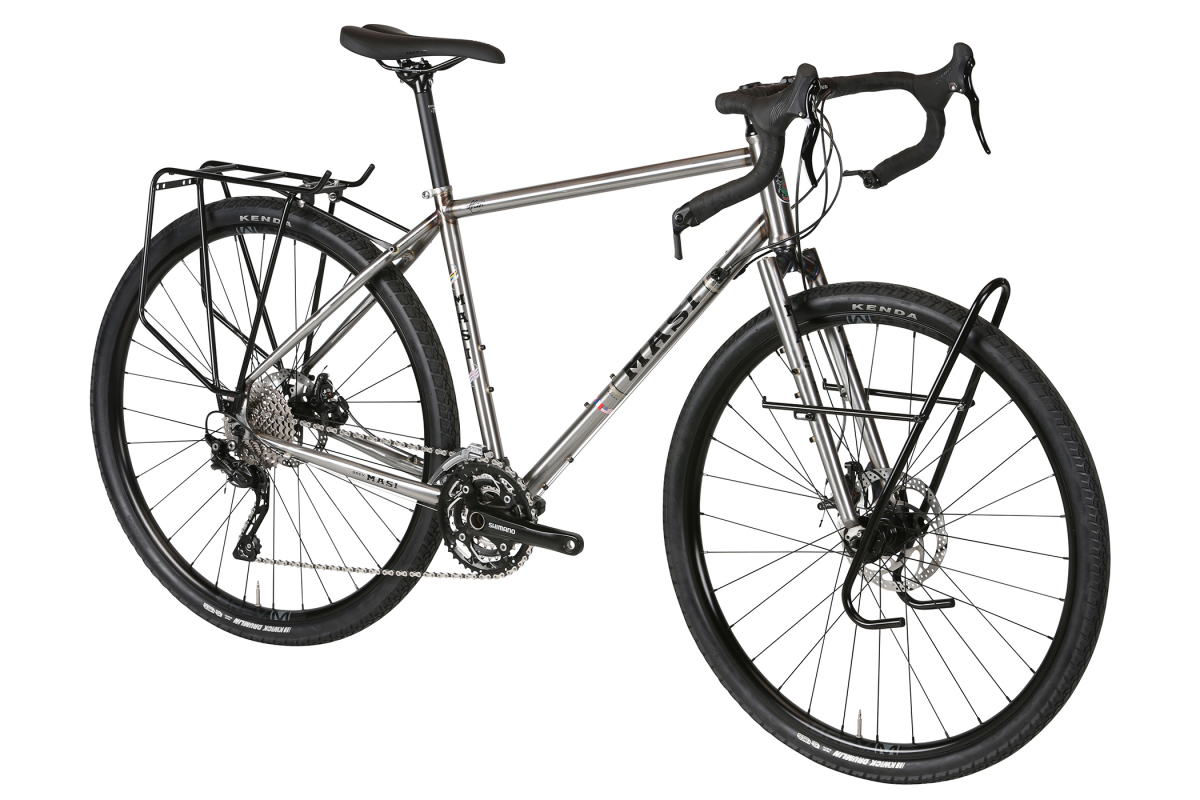

You can't choose your own adventure if your bike doesn't have your back. No worries with the Giramondo, your road ready companion for long days and heavy loads. From its relaxed modern touring geometry, low-rider rack front rack, and heavy-duty rear rack, there is a wealth of practical and intelligent options for the most demanding days in the saddle.
FEATURES
- A modern day touring bike with geometry designed for hours of comfortable riding
- Constructed from double butted cromoly tig welded tubing
- Three bottle mounting locations on the main triangle & two on the fork legs mean you'll always stay hydrated
- Tire clearance up 29 x 2.0"
- Tubus Tara low-rider front rack & Tubus Cargo rear rack
- Bar-end shifters for reliability and easy adjustment
- Tubeless compatible Brev. M 700c rims with 23mm internal width
- WTB Volt Sport Saddle
| Frame Components | |
|---|---|
| Frame | Giramondo adventure | Tig welded double-butted chromoly | 1.125" integrated head tube | 68mm BSA threaded bottom bracket | IS disc brake | QR dropouts |
| Fork | Giramondo adventure | Chromoly segmented-crown with straight blades | 1.125" steer tube | IS disc mount | Rack, fender, and bottle mounts | Dynamo wire routing | QR dropouts |
| Headset | Masi by Token 1.5" tapered | Sealed bearing |
| Drivetrain | |
| Cranks | Shimano Deore FC-T551 11s | 44/32/24T chainring | XS - M : 170mm, L - XL : 175mm |
| Bottom Bracket | Shimano 68mm threaded BSA |
| Chain | KMC X10 |
| Front Derailleur | Shimano FD-RX810 | Braze-on with Ï• 28.6mm adapter |
| Rear Deralleur | Shimano Deore FD-T6000 |
| Derailleur Shifter | MicroShift Barend Shifters |
| Pedals | |
| Wheels | |
| Tires | Kenda Quick Drumlin | 700x45c | K-Shield+ puncture protection |
| Wheels/Rims | Brev M. 700c Adventure Disc | Depth: 26mm, Width (internal): 23mm | 32H | Double wall | Tubeless compatible |
| Hubs | Brev M. Disc | Sealed bearings | QR | 6-Bolt | 32H |
| Freewheel/Cassette | Shimano CS-HG500 | 10-spd | 11-36T |
| Spokes | 14g | Black Stainless |
| Braking System | |
| Brakes | TRP Spyre-C disc | Flat mount | Dual piston | 6-bolt rotors, 160mm |
| Brake Levers | TRP RRL-A | Ultralight | Non-integrated |
| Other Components | |
| Grips | Masi Gripper Silicone Gel |
| Handle Bar | Brev M. compact adventure bend | ϕ 31.8mm | 125mm drop | 78mm reach | | 12° flare | XS-M: 42cm, L-XL: 44cm |
| Stem | Brev M. Gravel | 3D forged alloy | -7° drop | XS: 60mm, S-M: 70mm, L: 80mm, XL: 90mm |
| Seat | WTB Volt Sport |
| Seat Post | Brev M. Alloy | Ï• 27.2mm x 330mm | 5mm offset |
| Seat Clamp | Intergrated clamp with CP bolt |
| Extras | Tubus Tara Lowrider front rack | Tubus Cargo rear rack |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 71° | 75° | 542mm (21.3") | 455mm (17.9") | 455mm (17.9") | 70mm (2.8") | 1064mm (41.9") | 777mm (30.6") | 572mm (22.5") | 386mm (15.2") | 50mm (2") | 60mm | 420mm | 170mm | |
| S | 71° | 74° | 555mm (21.9") | 475mm (18.7") | 455mm (17.9") | 70mm (2.8") | 1067mm (42") | 792mm (31.2") | 584mm (23") | 388mm (15.3") | 50mm (2") | 70mm | 420mm | 170mm | |
| M | 72° | 73.5° | 575mm (22.6") | 495mm (19.5") | 455mm (17.9") | 70mm (2.8") | 1072mm (42.2") | 813mm (32") | 610mm (24") | 394mm (15.5") | 50mm (2") | 70mm | 420mm | 172.5mm | |
| L | 72° | 73° | 600mm (23.6") | 525mm (20.7") | 455mm (17.9") | 70mm (2.8") | 1092mm (43") | 839mm (33") | 634mm (25") | 406mm (16") | 50mm (2") | 80mm | 440mm | 172.5mm | |
| XL | 72° | 72° | 625mm (24.6") | 550mm (21.7") | 455mm (17.9") | 70mm (2.8") | 1104mm (43.5") | 861mm (33.9") | 657mm (25.9") | 411mm (16.2") | 50mm (2") | 90mm | 440mm | 175mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
