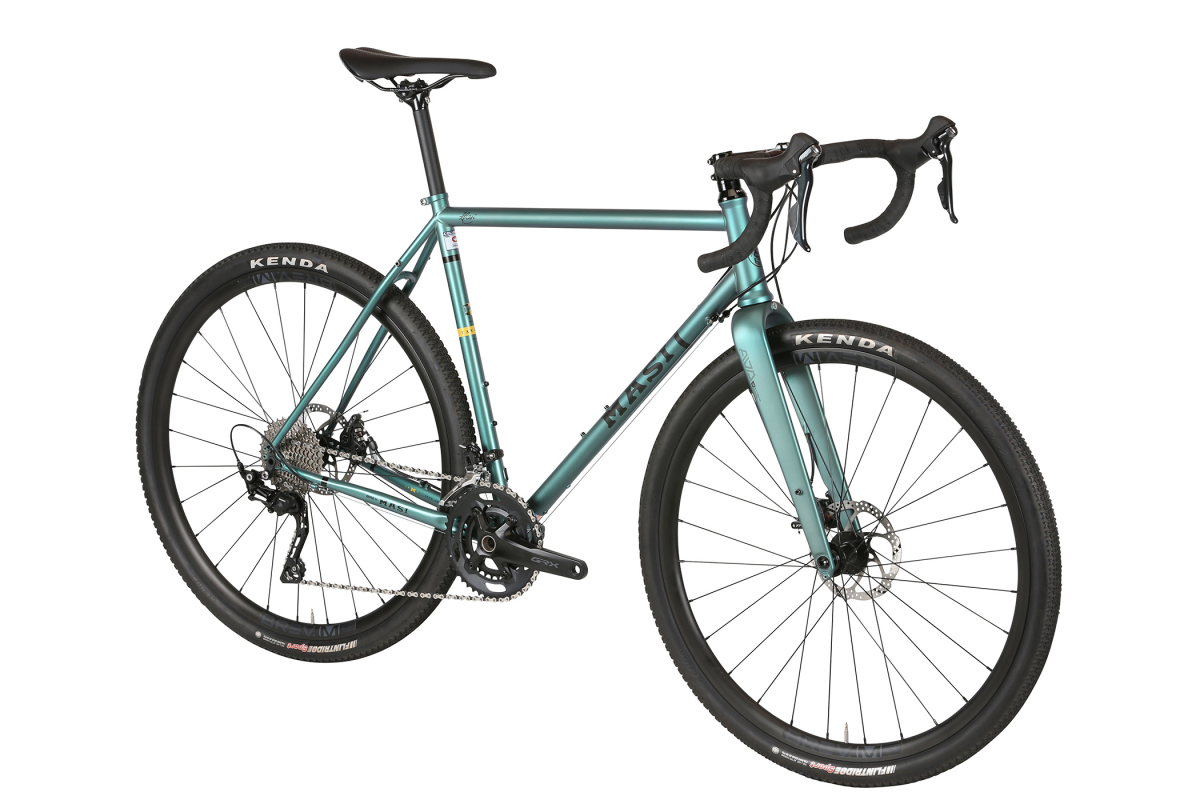

Tavolo Tiagra

  • Year: 2021
  • MSRP: $1,599.99 *
  • Sizes: 49cm, 51cm, 53cm, 56cm, 58cm, 60cm
  • Colors: Green Cell Grey
  • Weight: 24.4 lbs
  • NO LONGER AVAILABLE

Da Tavolo, commonly translated as table wine, is the perfect drink to accompany an everyday meal. Tavalo appeals to the common sense that not every wine need cost a fortune to be enjoyed with meal among friends. It's the same reasoning behind our Tavalo line of gravel bikes, starting with the Tavalo Tiagra. Simply and purposefully built, from the GRX drivetrain to the no nonsense ride that only a steel frame can deliver, the Tavolo Tiagra is the perfect pairing to any gravel adventure.

FEATURES

  • New Cromoly, Tig-welded frame with 12mm thru-axles and flat-mount brake standards
  • Dirt Tuned MC7 Full Carbon fork w/1.5" steerer, 12mm thru-axle, flat-mount disc brake, w/ fender mounts
  • Shimano GRX400 gravel-specific drivetrain with clutch rear derailleur
  • TRP Spyre-C flat mount dual-piston disc brakes, 160mm rotors
  • Tubeless compatible Brev. M Gravel disc-specific rims with 23mm internal width
SPECIFICATIONS
Frame Components
Frame Tavolo gravel | Tig welded double-butted chromoly | 1.125 - 1.5" integrated head tube | 68mm BSA threaded bottom bracket | Flat-mount disc brake | Replaceable derailleur hanger | 12 x 142mm thru-axle
Fork Tavolo gravel | MC-7 carbon construction | Carbon 1.125 - 1.5" tapered steer tube | Flat-mount disc | Rack and fender mounts | 12 x 100mm thru-axle
Headset Masi by Token 1.5" tapered | Sealed bearing
Drivetrain
Cranks Shimano GRX FC-RX600 10s | 46/30T chainring | 49cm : 170mm, 51-56cm : 172.5mm, 58-60cm : 175mm
Bottom Bracket Shimano 68mm threaded BSA
Chain KMC X10
Front Derailleur Shimano FD-RX400 | Braze-on with Ï• 28.6mm adapter
Rear Deralleur Shimano GRX RD-RX400 10s
Derailleur Shifter Shimano Tiagra ST-4700
Pedals
Wheels
Tires Kenda Flintridge | 700x40c | 60tpi | Folding
Wheels/Rims Brev M. 700c Gravel Disc | Depth: 26mm, Width (internal): 23mm | 32H | Double wall | Tubeless compatible
Hubs Brev M. Disc | Sealed bearings | Front: 12 x 100mm thru-axle, Rear: 12 x 142mm thru-axle | 6-Bolt | 32H
Freewheel/Cassette Shimano CS-HG500 | 10-spd | 11-34T
Spokes 14g | Black Stainless
Braking System
Brakes TRP Spyre-C disc | Flat mount | Dual piston | 6-bolt rotors, 160mm
Brake Levers Shimano Tiagra ST-4700
Other Components
Grips Masi Gripper Silicone Gel
Handle Bar Brev M. compact alloy gravel bend | Ï• 31.8mm | 120mm drop | 75mm reach | 49cm: 40cm, 51-53cm: 42cm, 56-60cm: 44cm
Stem Brev M. Gravel | 3D forged alloy | -7° drop | 49cm: 90mm, 51-53cm: 100mm, 56-58cm: 110mm, 60cm: 120mm
Seat Masi Gravel Comp
Seat Post Brev M. Alloy | Ï• 27.2mm x 330mm | 5mm offset
Seat Clamp Intergrated clamp with CP bolt
GEOMETRY
Size Head Angle Seat Angle Top Tube (Effective) Seat Tube (C-T) Chainstay Length BB Drop Wheel Base Stand Over Stack Height Reach Fork Height Fork Offset Stem Length Bar Width Crank Length
49 71.5° 74.5° 520mm (20.5") 490mm (19.3") 432mm (17") 70mm (2.8") 1003mm (39.5") 760mm (29.9") 515mm (20.3") 373mm (14.7") 50mm (2") 80mm 400mm 170mm
51 71.5° 74° 530mm (20.9") 510mm (20.1") 432mm (17") 70mm (2.8") 1004mm (39.5") 777mm (30.6") 531mm (20.9") 375mm (14.8") 50mm (2") 90mm 420mm 170mm
53 72° 73.5° 535mm (21.1") 535mm (21.1") 432mm (17") 70mm (2.8") 1006mm (39.6") 797mm (31.4") 547mm (21.5") 376mm (14.8") 50mm (2") 100mm 420mm 172.5mm
56 72° 73° 555mm (21.9") 560mm (22") 432mm (17") 70mm (2.8") 1022mm (40.2") 823mm (32.4") 575mm (22.6") 378mm (14.9") 50mm (2") 110mm 440mm 175mm
58 72° 73° 575mm (22.6") 580mm (22.8") 432mm (17") 68mm (2.7") 1042mm (41") 840mm (33.1") 590mm (23.2") 393mm (15.5") 50mm (2") 110mm 440mm 175mm
60 72° 72.5° 590mm (23.2") 600mm (23.6") 432mm (17") 68mm (2.7") 1052mm (41.4") 861mm (33.9") 618mm (24.3") 395mm (15.6") 50mm (2") 120mm 440mm 175mm
