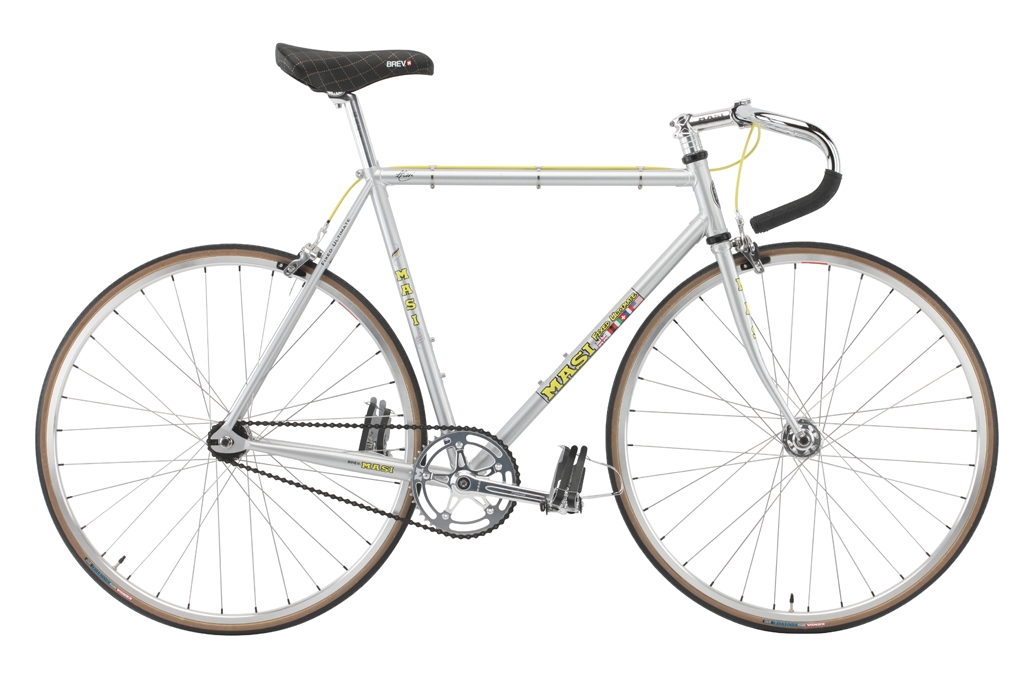

The Fixed Ultimate is exactly that, a ULTIMATE. We start with Reynolds 525 tubing mated beautifully to elegant lugs and a vintage-inspired graphics package. The parts mix is thoroughly modern, but with a very classic feel. The ride is nothing short of incredible, fully capitalizing on the excellent qualities of the Reynolds tubing. If ride quality, elegance and refinement are important to you, there is only one Ultimate selection.
FEATURES
- Fully lugged Reynolds 525 double butted chromoly steel w/ Masi track dropouts and Masi lugged chromoly steel fork
- Brev. M parts package
- FSA Gimondi crankset
- Tange chromoly track handlebar and Masi forged stem
| Frame Components | |
|---|---|
| Frame | Reynolds 525 lugged double-butted crmo |
| Fork | Masi lugged crmo |
| Drivetrain | |
| Cranks | FSA F.Gimondi w/ custom Masi 46t chainring |
| Bottom Bracket | FSA square taper |
| Chain | Taya 410B |
| Front Derailleur | N/A |
| Rear Deralleur | N/A |
| Derailleur Shifter | N/A |
| Pedals | Brev. M Quill w/ Brev. M steel double clips & straps |
| Wheels | |
| Tires | Kenda Kontender 23c |
| Wheels/Rims | Weinmann LP18 32h rims, Brev. M flip/flop sealed bearing hubs w/ track nuts, stainless spokes |
| Freewheel/Cassette | 16t fixed cog w/ lock ring & 16t freewheel |
| Braking System | |
| Brakes | Tektro 510A w/ cartridge pads |
| Brake Levers | Tektro RL720 |
| Other Components | |
| Grips | Brev. M Track grip |
| Handle Bar | Tange crmo track |
| Stem | Masi 3-D forged flip/flop |
| Seat | Brev. M Sellino |
| Seat Post | Masi alloy, 27.2 x 300mm |
| Seat Clamp | Integrated w/ frame |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
