Our CX has been one of our most popular models since its introduction with its unmatched versatility. Its built with double butted chromoly and a geometry that is perfect for entry level 'cross racing, commuting and fun weekend rides. The CX comes equipped with fender mounts that make it an excellent commuting or light duty touring bike as well. If you need a bike that can handle it all, The CX is for you.
FEATURES
- Masi double butted chromoly steel and Masi lugged chromoly steel fork
- Rack & fender mounts
- FSA Vero compact crankset
- Shimano Tiagra 10 speed shifters and derailleurs

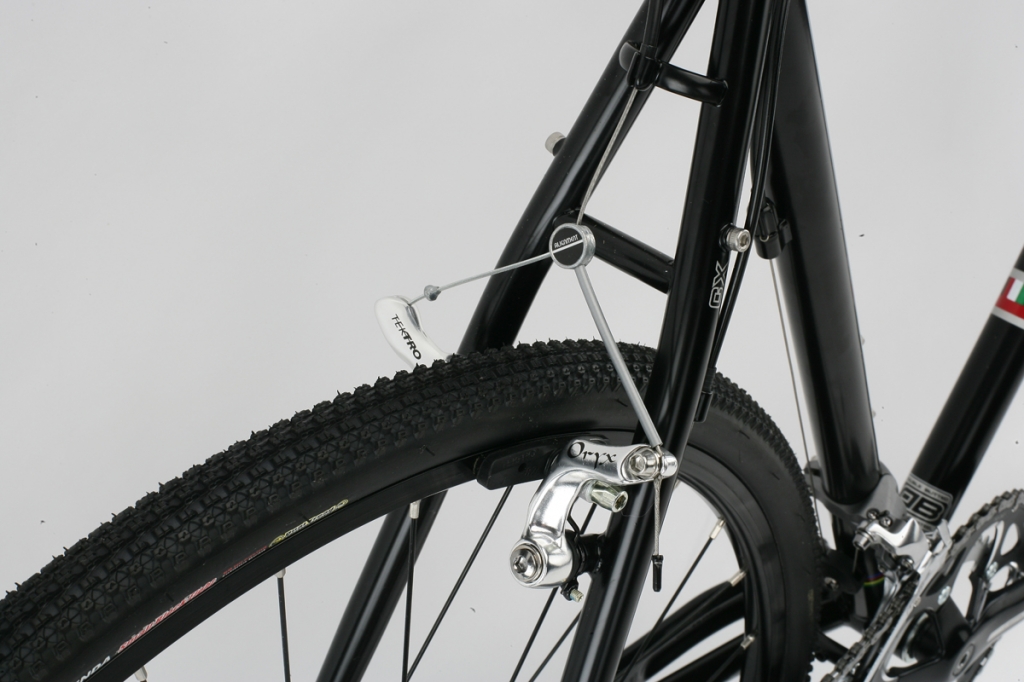

- Tektro Oryx cantilever brake calipers
| Frame Components | |
|---|---|
| Frame | Masi double-butted crmo w/ rack & fender mounts |
| Fork | Masi lugged crmo w/ canti bosses, lowrider rack & fender mounts |
| Headset | Ritchey Logic Comp CX |
| Drivetrain | |
| Cranks | FSA Vero Compact, 50/34 |
| Bottom Bracket | FSA square taper |
| Chain | Shimano Tiagra |
| Front Derailleur | Shimano Tiagra |

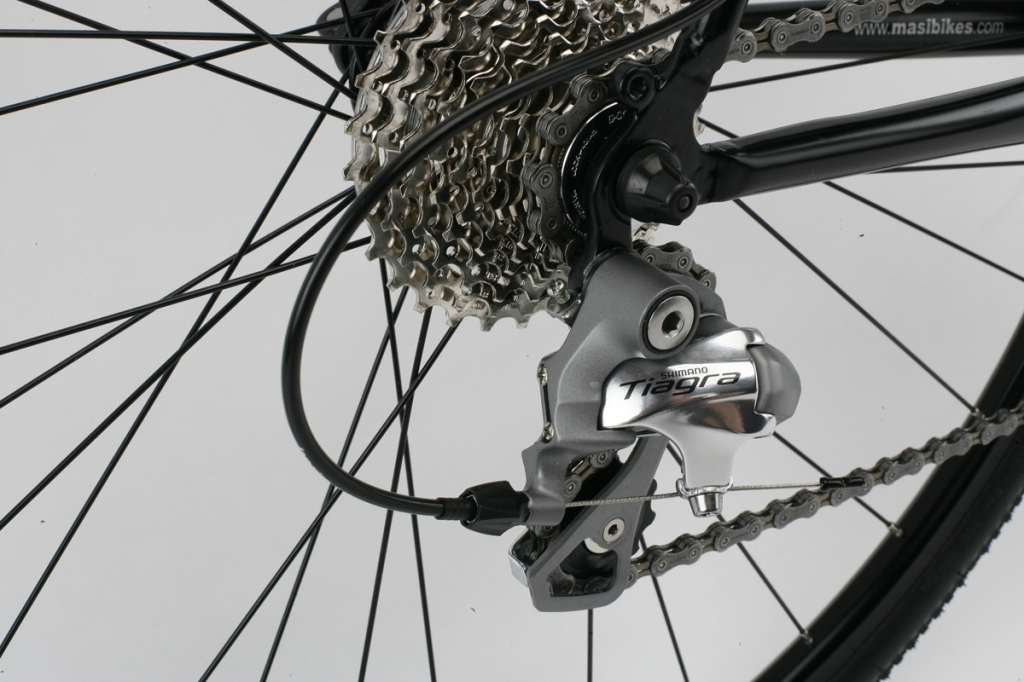

| Rear Deralleur | Shimano Tiagra |
| Derailleur Shifter | Shimano Tiagra |
| Pedals | N/A |
| Wheels | |
| Tires | Kenda Small Block Eight 32c |
| Wheels/Rims | Weinmann LP18 32h rims, Formula cassette hubs, stainless spokes |
| Freewheel/Cassette | Shimano Tiagra, 10 speed, 12-28t |
| Braking System | |
| Brakes | Tektro Oryx |

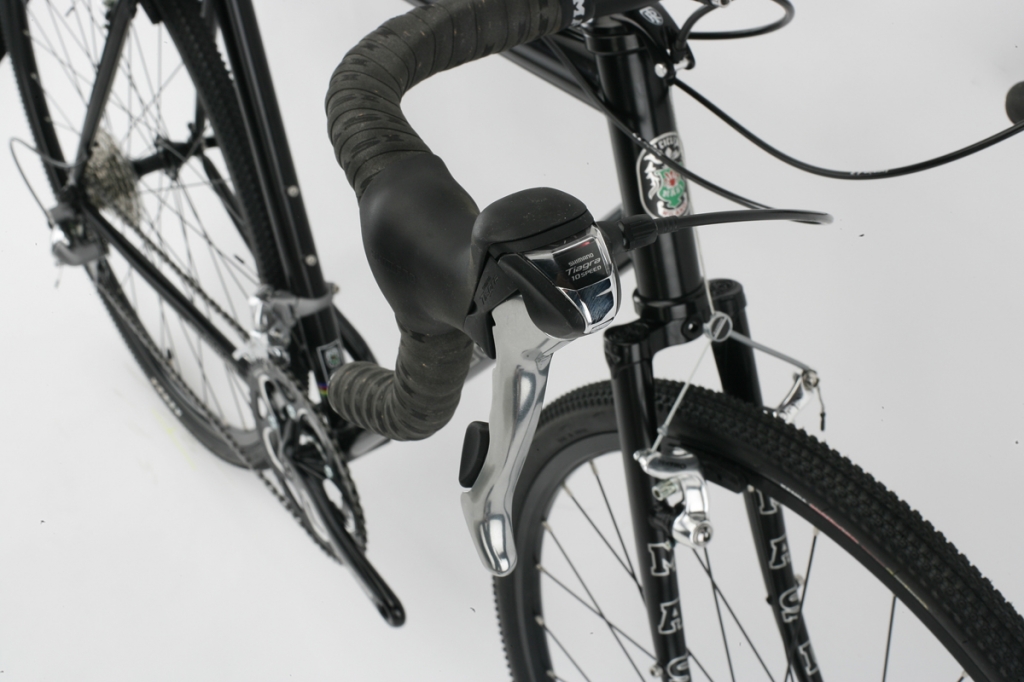

| Brake Levers | Shimano Tiagra STI |
| Other Components | |
| Grips | Masi cork tape |
| Handle Bar | Masi alloy |
| Stem | Masi 3-D forged flip/flop |

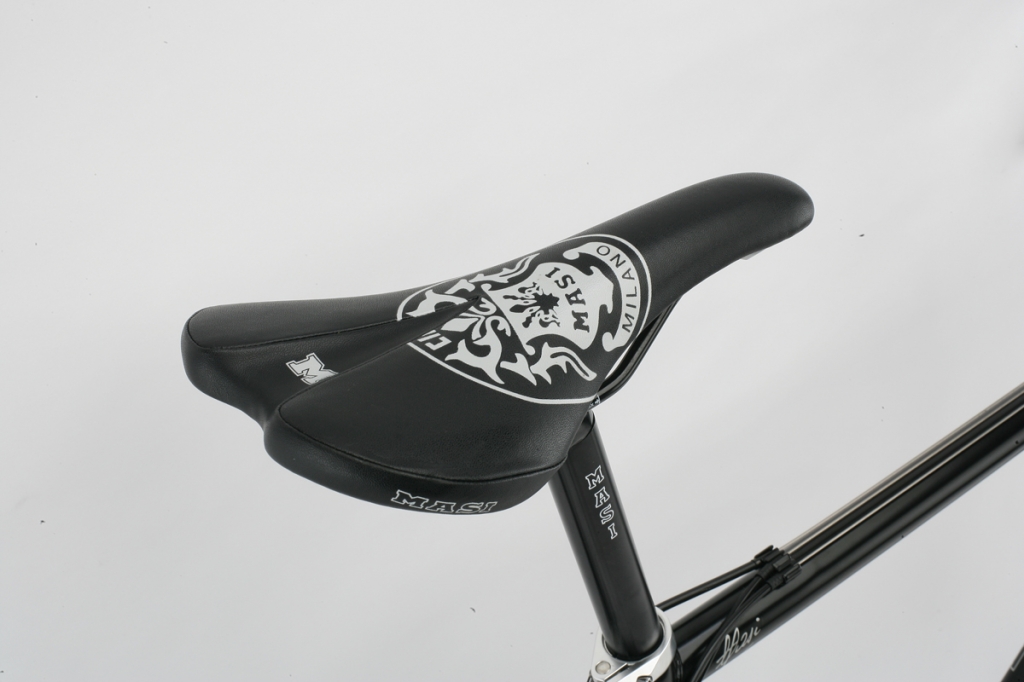

| Seat | Masi SLS |
| Seat Post | Masi alloy, 27.2 x 300mm |
| Seat Clamp | Alloy SL |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
