Alare

  • Year: 2012
  • MSRP: $960.00 *
  • Sizes: 49cm, 51cm, 53cm, 56cm, 58cm, 60cm
  • Colors: Euro Blue
  • Weight: 21.2 lbs
  • NO LONGER AVAILABLE

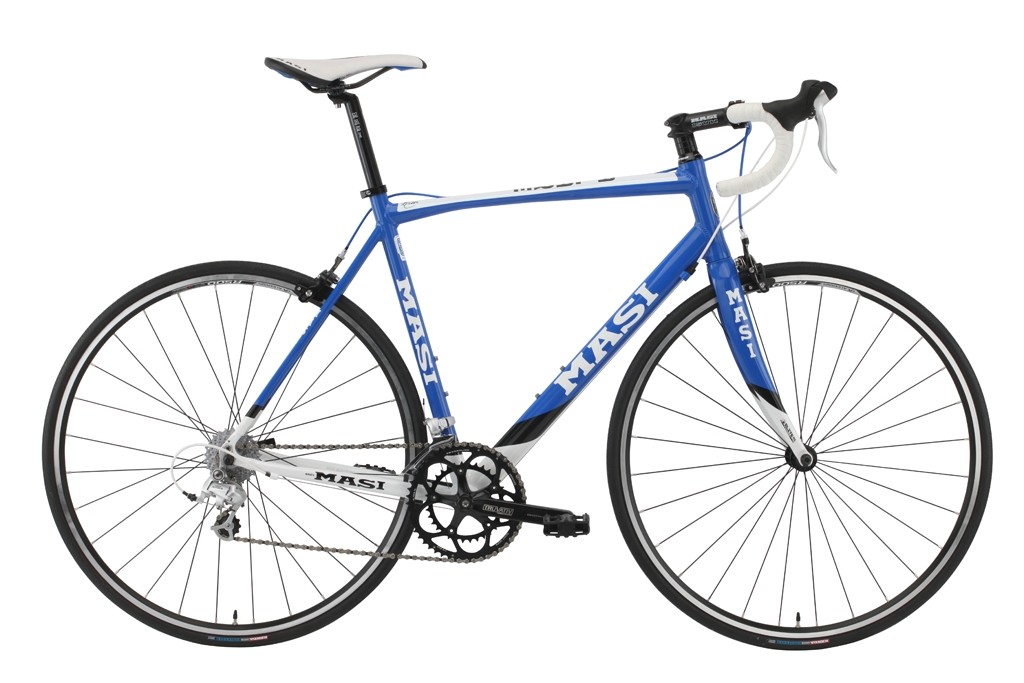

The all new Alare frame is nothing short of amazing. Borrowing technology from our Evoluzione line, we created an affordable aluminum platform where performance and affordability are key. Features like the Masi Elite/RS carbon fork hint that ride quality is never sacrificed. Like you, the Alare has a passion for riding that can only be satisfied by hours on the road.

FEATURES

  • NEW redesigned Masi custom formed and butted tubing
  • Masi Elite/RS carbon integrated fork w/alloy steerer
  • Shimano Sora 9 speed shifters and derailleurs
  • TruVativ Iso Flow compact crankset
  • Masi 31.8mm alloy handlebar and stem
SPECIFICATIONS
Frame Components

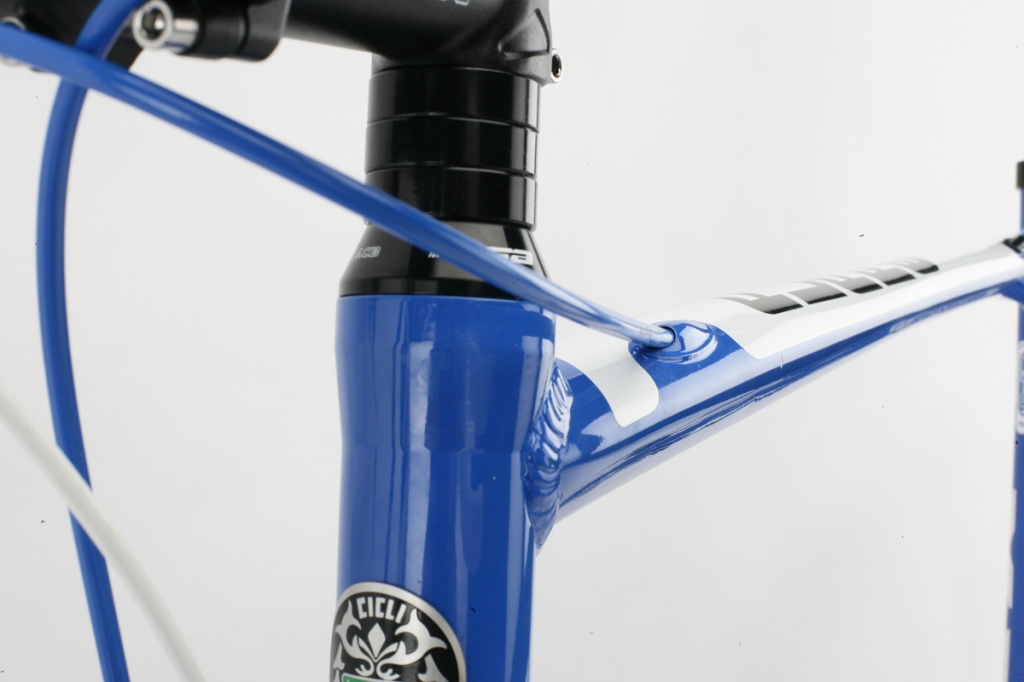

Frame Masi double-butted alloy w/ integrated headtube
Fork Masi Elite/RS carbon integrated w/ 7075 alloy steerer
Headset FSA 23/CC internal
Drivetrain
Cranks Truvativ ISO Flow 2.1, 50/34
Bottom Bracket Truvativ square taper
Chain Taya Nove-91
Front Derailleur Shimano Sora
Rear Deralleur Shimano Sora

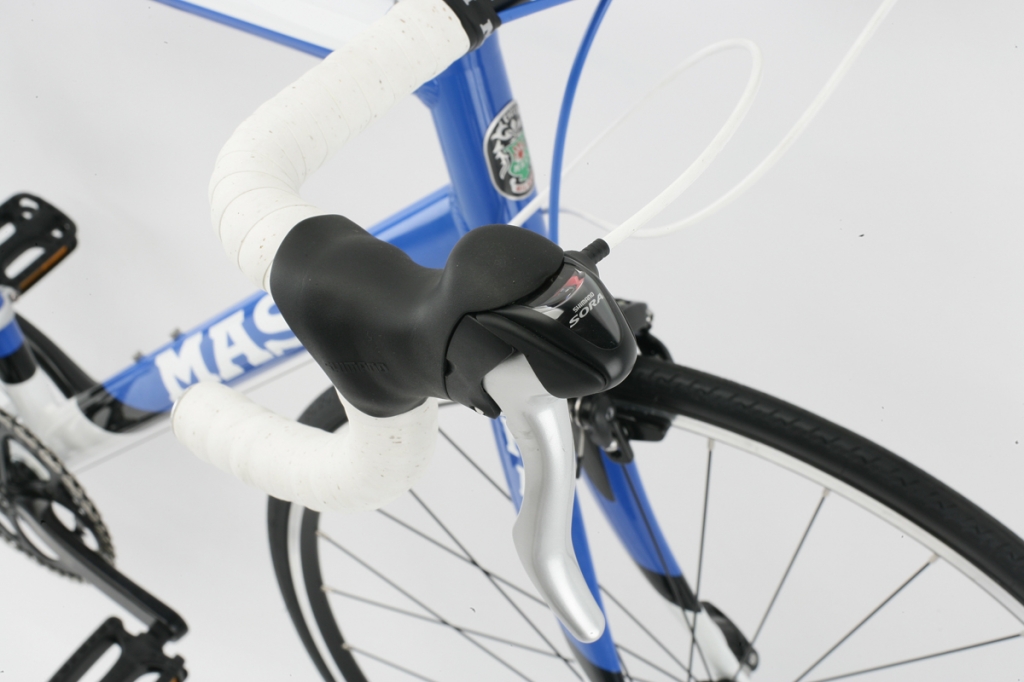

Derailleur Shifter Shimano Sora STI
Pedals Nylon body
Wheels
Tires Kenda Kontender 23c
Wheels/Rims Alex R500 aero 28h rims, Formula cassette hubs, stainless spokes, radial front / cross 3 rear
Freewheel/Cassette Sunrace CSR-96, 9 speed, 11-25t
Braking System

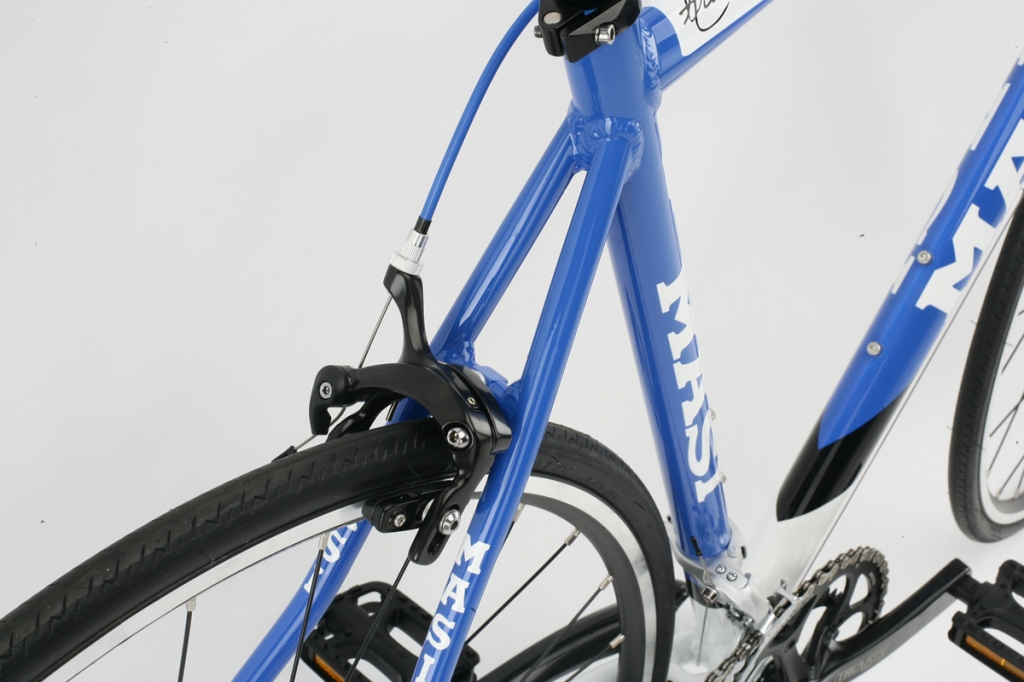

Brakes Tektro 510A w/ cartridge pads
Brake Levers Shimano Sora STI
Other Components
Grips Masi cork tape
Handle Bar Masi alloy
Stem Masi 3-D forged flip/flop

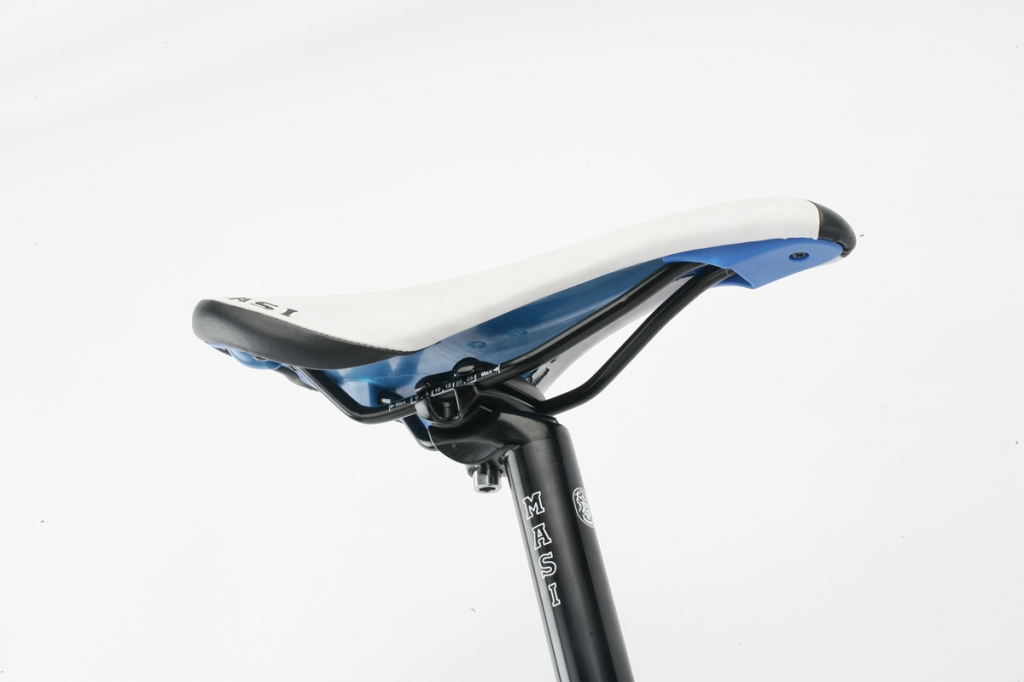

Seat Masi SLS
Seat Post Masi alloy, 27.2 x 300mm
Seat Clamp Alloy SL
GEOMETRY
Size Head Angle Seat Angle Top Tube (Effective) Seat Tube (C-T) Chainstay Length BB Drop Wheel Base Stand Over Stack Height Reach Fork Height Fork Offset Stem Length Bar Width Crank Length
