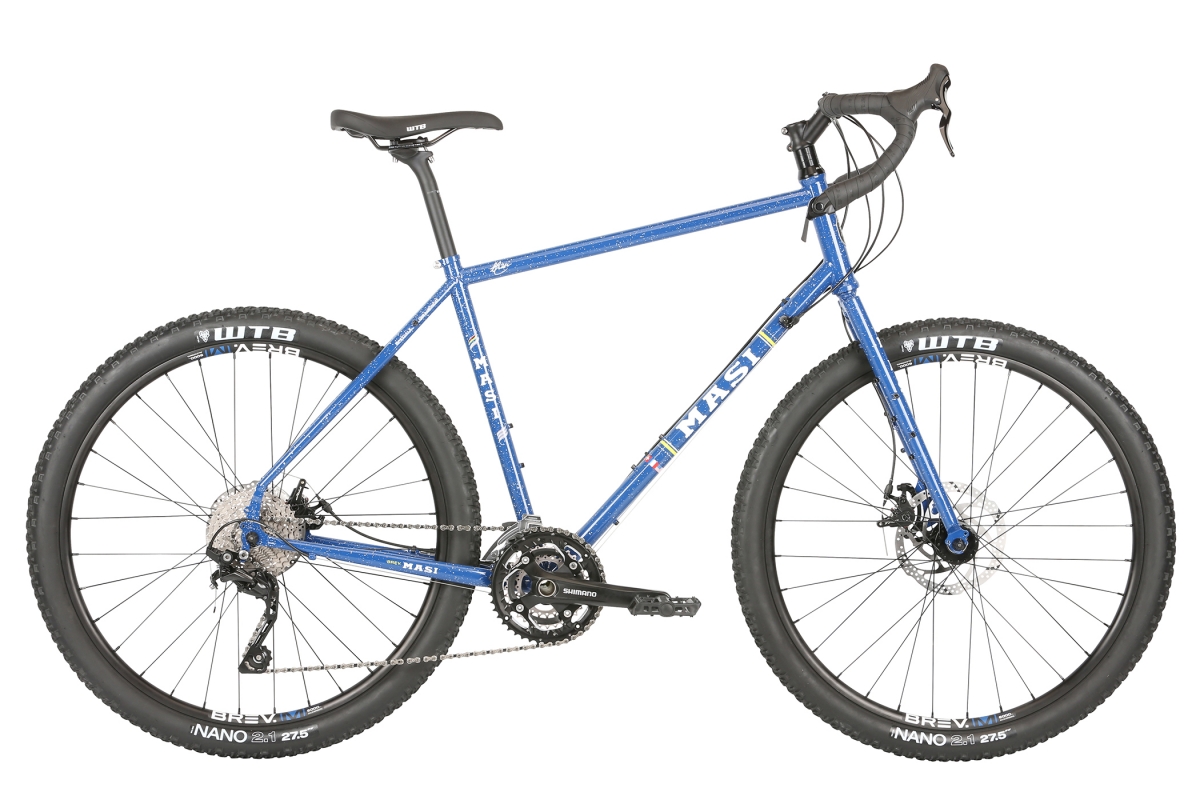

Utilizing the same frame and fork as its 700c counterpart, the Giramondo 27.5 caters to the hard-core adventure rider with broad ambitions. Featuring WTB Mountain Drop Bars, a riser stem, and the superior grip of WTB Nano 27.5 x 2.1" tires this laid back but highly versatile off-roader takes the challenges and diversity of the trail in its stride. And when it's time to head into unknown territory the Giramondo bites, carving effortlessly through flowing single track down fast descents and up technical climbs. An off-road bike with many unique attributes-style, guile, and a personality to match.
FEATURES
- A modern day touring bike designed for the new breed of bikepacking expeditions
- Constructed from double butted cromoly tig welded tubing
- New segmented fork with offset bottle mounting location and dynamo hub wire routing
- Three bottle mounting locations on the main triangle & rack & fender mounts
- WTB Mountain Drop bars
- 30 degree rise stem puts you in the perfect position to ride in the drops
- Bar-end shifters for reliability and easy adjustment
- Clearance for tires up to 29 x 2.0"
- Tubeless-ready Brev. M 27.5" rims with 23mm internal width
- WTB Volt Sport Saddle
| Frame Components | |
|---|---|
| Frame | Tig Welded Double Butted Chromoly Tubing, Intergrated 1 1/8" Headtube, IS Disc Mount |
| Fork | Straight Blade Segmented Chromoly, w/ Bottle Mounts & Dynamo Wire Routing, IS Disc Mount |
| Headset | Token Integrated Sealed Bearing |
| Drivetrain | |
| Cranks | Shimano Deore 44/32/24T |
| Bottom Bracket | Shimano Sealed Cartridge |
| Chain | KMC X10 |
| Front Derailleur | Shimano Deore T6000 |
| Rear Deralleur | Shimano Deore T6000 |
| Derailleur Shifter | MicroShift Barend Shifters |
| Pedals | N/A |
| Wheels | |
| Tires | WTB Nano Comp 27.5x2.1", 27 TPI |
| Wheels/Rims | Brev M. 23mm internal Tubeless Ready, Double Wall, 32h. |
| Hubs | Alloy Sealed Bearing, QR, 32h |
| Freewheel/Cassette | Shimano HG-50 11-36T 10-spd |
| Braking System | |
| Brakes | TRP Spyre-C Dual Pistion Mechanical Disc, 180mm Front, 160mm Rear Rotors |
| Brake Levers | TRP RRL-A, Ultralight |
| Other Components | |
| Grips | Masi Gripper Silicone Gel |
| Handle Bar | WTB Mountain Drop Bar, 25.4mm |
| Stem | Brev. M 3D Forged Alloy, 25.4mm |
| Seat | WTB Volt Sport |
| Seat Post | Brev. M 3D Forged Alloy, 27.2mm |
| Seat Clamp | Integrated Braze-On |
| Extras | Rack & Fender Mounts, DT Bottle Mount |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 71° | 75° | 542mm (21.3") | 455mm (17.9") | 455mm (17.9") | 70mm (2.8") | 1064mm (41.9") | 777mm (30.6") | 572mm (22.5") | 386mm (15.2") | 50mm (2") | 60mm | 420/600mm | 170mm | |
| S | 71° | 74° | 555mm (21.9") | 475mm (18.7") | 455mm (17.9") | 70mm (2.8") | 1067mm (42") | 792mm (31.2") | 584mm (23") | 388mm (15.3") | 50mm (2") | 60mm | 420/600mm | 170mm | |
| M | 72° | 73.5° | 575mm (22.6") | 495mm (19.5") | 455mm (17.9") | 70mm (2.8") | 1072mm (42.2") | 813mm (32") | 610mm (24") | 394mm (15.5") | 50mm (2") | 75mm | 420/600mm | 172.5mm | |
| L | 72° | 73° | 600mm (23.6") | 525mm (20.7") | 455mm (17.9") | 70mm (2.8") | 1092mm (43") | 839mm (33") | 634mm (25") | 406mm (16") | 50mm (2") | 75mm | 420/600mm | 172.5mm | |
| XL | 72° | 72° | 625mm (24.6") | 550mm (21.7") | 455mm (17.9") | 70mm (2.8") | 1104mm (43.5") | 861mm (33.9") | 657mm (25.9") | 411mm (16.2") | 50mm (2") | 90mm | 420/600mm | 175mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
