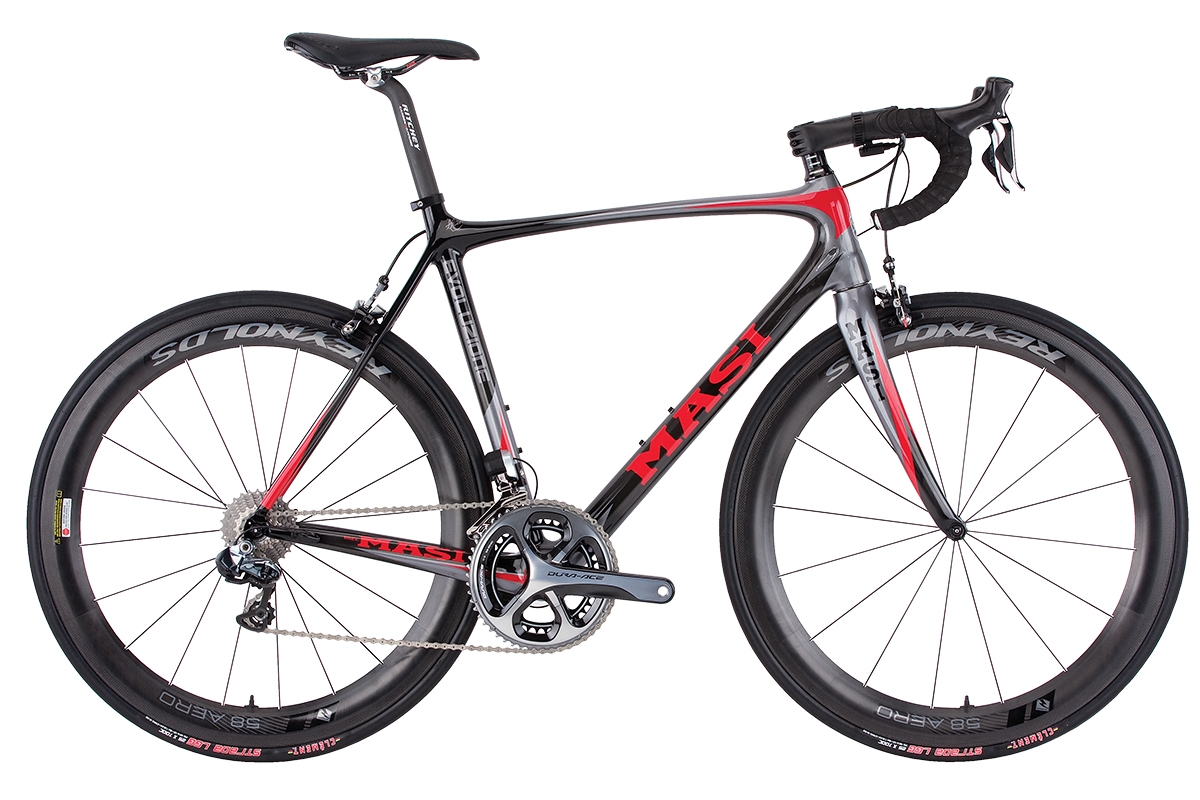

Evoluzione Dura Ace Di2
- Year: 2013
- MSRP: $10,879.99 *
- Sizes: 47cm, 50cm, 53cm, 56cm, 59cm, 62cm
- Colors: Charcoal / Red
- Weight:
- NO LONGER AVAILABLE
FEATURES
- All new Evoluzione frame featuring our MC7 carbon blend with Di2 compatible chainstays
- Shimano Dura Ace 9000 crankset with PF30 adapters, 53/39
- Shimano Dura Ace 9070 shifters, front and rear derailleurs
- Shimano Dura Ace 9000, 11-25t, 11-speed
- Ritchey SuperLogic Evo Curve carbon bar / Ritchey SuperLogic C-260
- Prologo Scratch Pro Nack saddle
- Ritchey SuperLogic seatpost 31.6 x 300mm
- Reynolds Aero 56 wheelset
- Clement Strada LLG 25c folding bead 120tpi tires
- Shimano Dura Ace 9000 brakeset
Frame Components | |
---|---|
Frame | Masi T700 / M40J / M46J carbon, Di2 compatible, PF30, internal routing, tapered headtube |
Fork | Masi FC / Pro Taper monocoque carbon |
Headset | FSA Orbit C-40 Taper headset |
Drivetrain | |
Cranks | Shimano Dura Ace, 53/39 |
Bottom Bracket | Shimano Dura Ace w/Press Fit 30 Adapters |
Chain | Shimano CN-9700 |
Front Derailleur | Shimano Dura Ace Di2 |
Rear Deralleur | Shimano Dura Ace Di2 |
Derailleur Shifter | Shimano Dura Ace Di2 |
Pedals | N/A |
Wheels | |
Tires | Clement Strada LLG 25c folding bead |
Wheels/Rims | Reynolds Aero 56 carbon clincher |
Freewheel/Cassette | Shimano CS-9000, 11 speed, 11-25t |
Braking System | |
Brakes | Shimano Dura Ace |
Brake Levers | Shimano Dura Ace |
Other Components | |
Grips | Masi cork tape |
Handle Bar | Ritchey Super Logic Carbon Evo Curve, 31.8mm |
Stem | Ritchey Super Logic C-260 |
Seat | ProLogo Scratch Pro Nack |
Seat Post | Ritchey Super Logic 1 bolt carbon, 31.6 x 350mm |
Seat Clamp | Alloy SL |
Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
47 | 72° | 74° | 520mm (20.5") | 470mm (18.5") | 410mm (16.1") | 68mm (2.7") | 965mm (38") | 712mm (28") | 45mm (1.8") | ||||||
50 | 72.5° | 74° | 530mm (20.9") | 500mm (19.7") | 410mm (16.1") | 68mm (2.7") | 975mm (38.4") | 744mm (29.3") | 45mm (1.8") | ||||||
53 | 73° | 74° | 545mm (21.5") | 530mm (20.9") | 410mm (16.1") | 68mm (2.7") | 986mm (38.8") | 764mm (30.1") | 45mm (1.8") | ||||||
56 | 73.5° | 73.5° | 565mm (22.2") | 560mm (22") | 410mm (16.1") | 68mm (2.7") | 996mm (39.2") | 797mm (31.4") | 45mm (1.8") | ||||||
59 | 73° | 73.5° | 585mm (23") | 590mm (23.2") | 410mm (16.1") | 68mm (2.7") | 1021mm (40.2") | 817mm (32.2") | 45mm (1.8") | ||||||
62 | 73° | 73.5° | 595mm (23.4") | 620mm (24.4") | 410mm (16.1") | 68mm (2.7") | 1031mm (40.6") | 842mm (33.1") | 45mm (1.8") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
