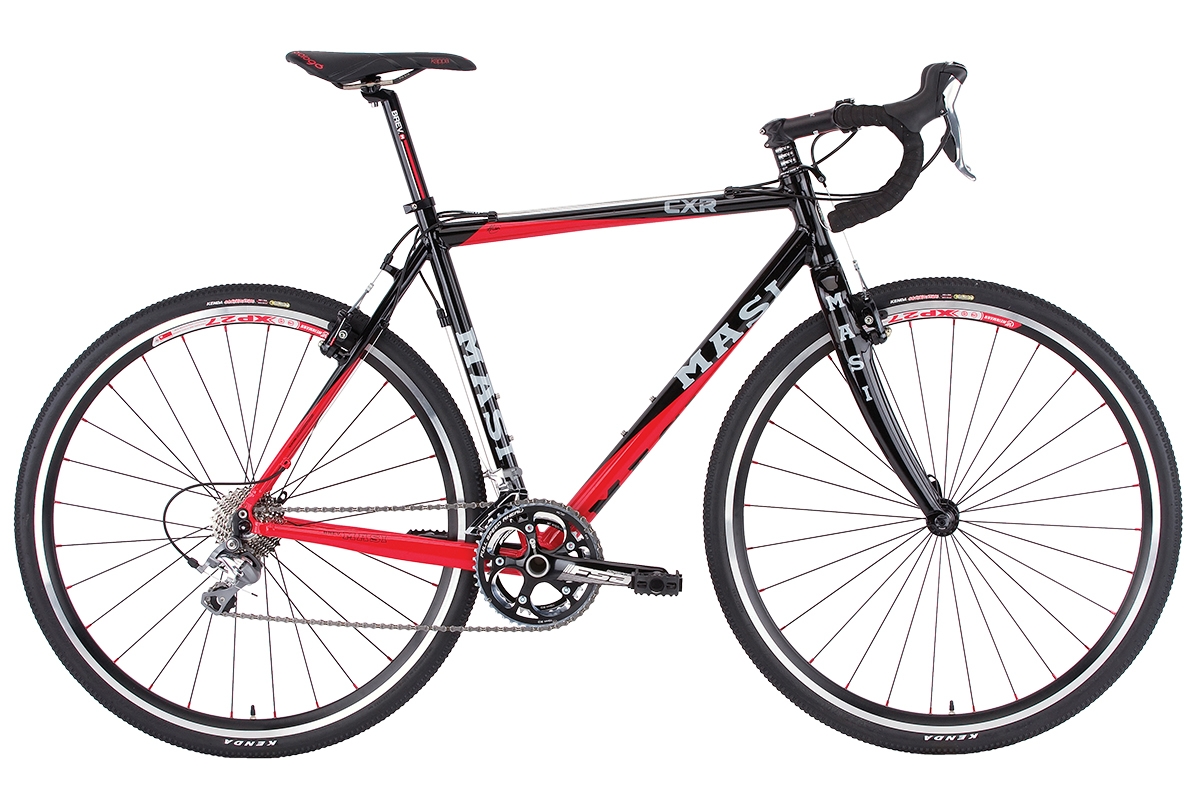

CXR
- Year: 2013
- MSRP: $1,419.99 *
- Sizes: 49cm, 52cm, 55cm, 57cm, 60cm
- Colors: Black / Red
- Weight: 23.1 lbs
- NO LONGER AVAILABLE
FEATURES
- Masi 7000 series double-butted alloy
- Masi Elite/RS carbon cross fork with 7075 alloy steerer with canti mounts
- Gossamer Cross PF30 46/36
- Shimano Tiagra 10-speed shifters, front and rear derailleur
- Shimano 4600, 12-28t, 10-speed cassette
- Prologo Kappa saddle
- Tektro CR510 cantilever brakeset with cartridge pads
- Kenda Small Block Eight 700x35c tires
Frame Components | |
---|---|
Frame | Masi double-butted alloy, PF30, w/ integrated headtube |
Fork | Masi Elite / RS Cross carbon integrated w/ 7075 alloy steerer & canti bosses |
Headset | Ritchey Pro Zero CX Drop-In |
Drivetrain | |
Cranks | FSA Gossamer Cross PF30, 46/36 |
Bottom Bracket | FSA Press Fit 30 |
Chain | Shimano CN-4601 |
Front Derailleur | Shimano Tiagra |
Rear Deralleur | Shimano Tiagra |
Derailleur Shifter | Shimano Tiagra |
Pedals | Nylon body |
Wheels | |
Tires | Kenda Small Block Eight 35c wire bead |
Wheels/Rims | Weinmann XP27 28h rims, alloy cassette hubs, stainless spokes |
Freewheel/Cassette | Shimano CS-4600, 10 speed, 11-28t |
Braking System | |
Brakes | Tektro CR510 w/ cartridge pads |
Brake Levers | Shimano Tiagra |
Other Components | |
Grips | Masi cork tape |
Handle Bar | Brev. M alloy, 31.8mm |
Stem | Brev. M 3-D forged alloy |
Seat | ProLogo Kappa |
Seat Post | Brev. M alloy, 27.2 x 300mm |
Seat Clamp | Alloy SL |
Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
49 | 71° | 74° | 515mm (20.3") | 490mm (19.3") | 425mm (16.7") | 65mm (2.6") | 984mm (38.7") | 753mm (29.6") | 45mm (1.8") | ||||||
52 | 72° | 73.5° | 535mm (21.1") | 520mm (20.5") | 425mm (16.7") | 65mm (2.6") | 995mm (39.2") | 772mm (30.4") | 45mm (1.8") | ||||||
55 | 72° | 73° | 550mm (21.7") | 550mm (21.7") | 425mm (16.7") | 65mm (2.6") | 1006mm (39.6") | 800mm (31.5") | 45mm (1.8") | ||||||
57 | 72° | 73° | 570mm (22.4") | 570mm (22.4") | 425mm (16.7") | 65mm (2.6") | 1026mm (40.4") | 822mm (32.4") | 45mm (1.8") | ||||||
60 | 72° | 72.5° | 590mm (23.2") | 600mm (23.6") | 425mm (16.7") | 65mm (2.6") | 1041mm (41") | 847mm (33.3") | 45mm (1.8") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
